Diaphragm single stage high pressure regulator with cartridge - SC280/SC380
SC280 - SC380 high pressure cylinder regulator is designed for pure, inert and corrosive gases. It is particularly suited for applications such as calibration gases, controlled atmosphere and high purity gas carrying. A cylinder connector is necessary to connect it to the cylinder valve.
Key advantages
- This single stage regulator is based on the Cartridge seat Technology
- Compact, ergonomic and lightweight design
- Accurate pressure control for reliable service
- Handwheel in compliance with ATEX regulation and easy to clean
- Could be equipped with a shut off valve
- Relief valve seat seals material: Brass version (EPDM), Stainless Steel (FPM)
FLOW CURVES
Specifications
| Female ports | 1/4” NPT (inlet / outlet) |
| Valve seal | PCTFE |
| O-ring | PTFE |
| Diaphragm | Hastelloy® |
| Weight | ± 1,1 kg ± 2.4 lbs |
| Leak rate | 10-8 mbar ℓ/s He |
| Temperature range | - 40°C to + 60°C - 40°F to + 140°F |
| Gauges | High and low pressure (1/4 NPT) |
| Inlet pressure | 200/300 bar 2900/4350 psi |
| Outlet Pressure | 1,5/4/10/16/35/50 bar 21.75/58/145/232/508/725 psi |
| Nominal flow cv | 1/2/10/20/30 Nm3 /h (N2 ) 0.1 |
| Oxygen use | OK with brass and stainless steel |

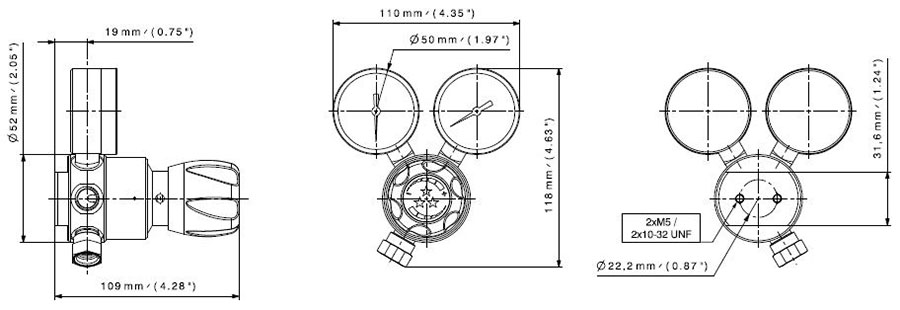

Dimensional drawings
