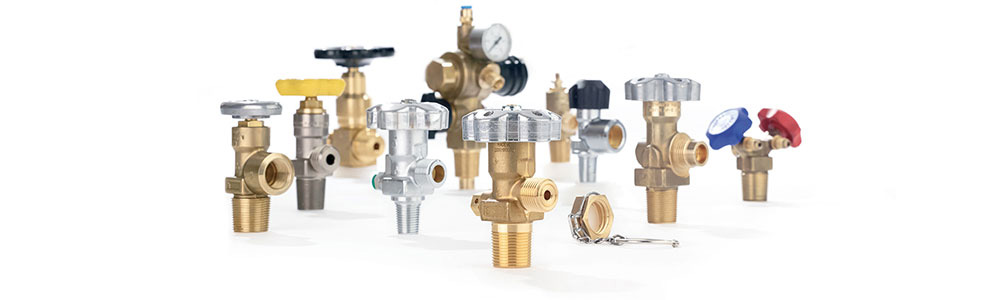

COMPLETE RANGE OF INDUSTRIAL & REFRIGERANT CYLINDER VALVES

Industrial Valves
All technologies
  • Standard valves
  • Valves with integrated pressure regulators (VIPR)
  • Residual Pressure Valves (RPV)
Longer life time
  • Guaranteed for a use of 2000 cycles, according to ISO 10297
All connections, all standards
  • All inlet types: 1/4'; 17e; 1/2'; 3/4'; 25e; 28e; 16N; W33; M34; W39; M18; G1/2'; W21; M25; G3/4; 1 1/8'
  • All outlet standards: NF; BS; CGA; DIN; MIE; NEN; TS; UNI and others
downloads
  • Download
    Industrial cylinder valves
    Last update: Jul 12, 2023
    Available in: en
  • Download
    Balloon Valve
    Last update: Jun 20, 2023
    Available in: en

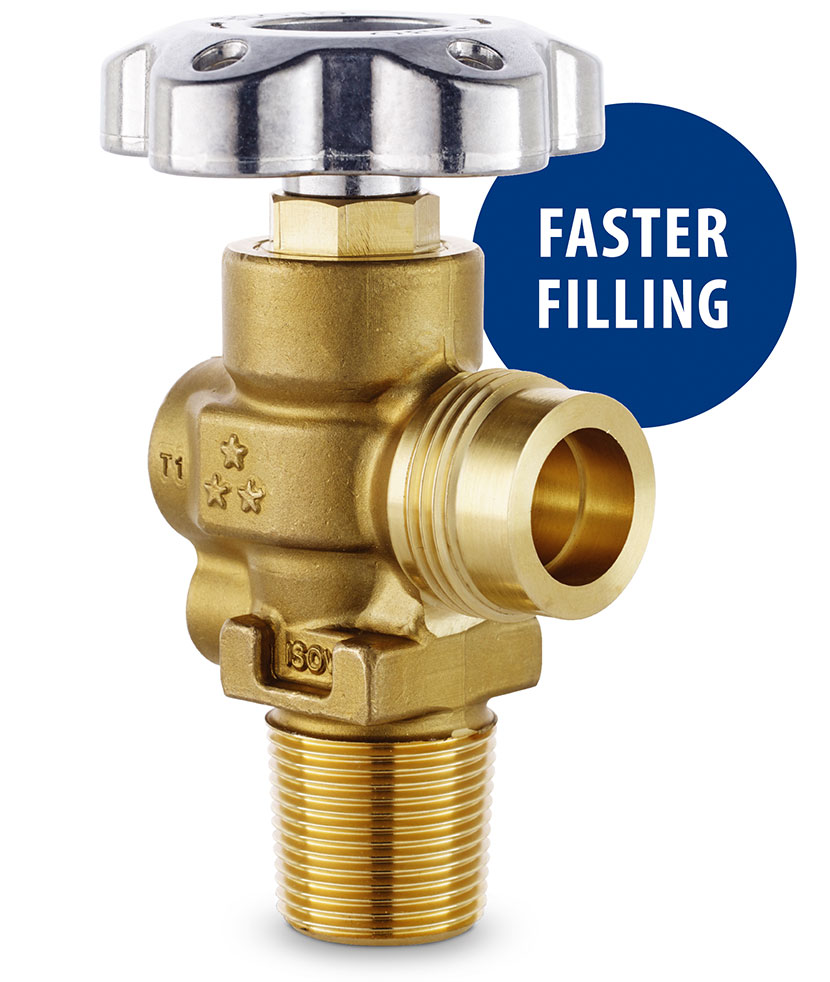

REVOLUTIONARY RESIDUAL PRESSURE VALVE UP TO 315 BAR

Industrial Valves

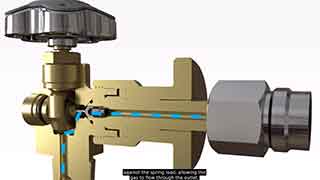

FASTER FILLING
  • Increase your flow capacity thanks to high Cv value up to 0.7

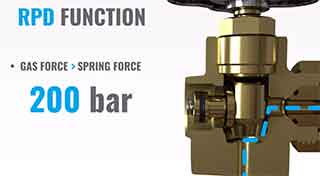

  • Bigger stroke of Residual Pressure Device (RPD) piston (up to 7mm)
  • Improve your productivity
BROAD COMPATIBILITY
  • Fit to all existing RPV connections and common industrial gases
  • Piston stroke (Residual Pressure Device (RPD) Displacement up to 7 mm) enhancing to cover all pin length
  • Compatible with automatic filling station
  • Oxygen pressure surge tested at 380 bar
INNOVATIVE DESIGN
  • Robust & compact patented design up to 315 bar (4000 cycles tested)
  • Excellent gasket resistance up to 60 blow downs
  • New handwheel design with integrated rupture safety
  • Easy guard replacement during maintenance thanks to the compact design
Learn More >>
videos
Industrial gas valves
Residual pressure valves (RPV)
  • RPV valves
    Residual Pressure Valve
    CO2, inert gases, O2, CNG gases
    All connections
  •  STANDARD RPV VALVES - C511/C516
    Residual pressure valve
    O2, N2O & Mixtures
    In-Line
  •  Small cone RPV valves - C978
    Small cone
    O2 and N2O
    RPV valve
  • Small cone RPV valves with integrated manometer - C878/C879
    Small cone
    O2 and inert
    RPV valve
  • Standard RPV valves - C521/C526
    RPV valves
    Inert, mixtures and flammable
    200 bar
  • STANDARD RPV VALVES Y TYPE - C560
    Dual port
    CO2, Inert, Mixtures and flammable
    RPV
  • Small cone RPV valves - C979/C980
    Small cone
    Inert, mixtures, flammable, H2
    RPV valve
  • STANDARD RPV VALVES - C508
    CO2 and CO2 mixture
    Inline RPV
  • Small cone RPV valves - C969
    Small cone
    CO2 & CO2 mixture
    RPV valve
  • High pressure cylinder valve with spring loaded v-gaskets and RPV – D167S
    Offline RPV
    Soft seat
    6mm orifice
Standard valves
  • Standard valves - C100/C105/C110/C115
    High pressure
    O2, N2O, Mixtures
    O-ring seal
  • Standard valves - C400/C405
    30 bar working pressure
    Acetylene
    O-ring seal type
  • STANDARD VALVES Y TYPE - C042/C047
    Dual port
    Inert, mixtures and flammable gases
    300 bar
  • Standard valves - C200/C205/C210/C215
    Standard valves
    Inert, mixtures and flammable
    300 bar
  • Specific chlorine applications - C990
    Chlorine and sulfure dioxyde
    O-ring
  • Standard valves - C040/C045
    Standard valves
    CO2 & CO2 Mixture
    200 bar
  • High pressure cylinder valve specific applications - D488
    Hydrogen, methane and acetylene applications
    O-ring
    6mm orifice
  • High pressure cylinder valves, packed needle stem design, for high purity gases - D100
    High pressure cylinder valve
    Metal / Metal seat
    3.3mm orifice
  • High pressure cylinder and bundle valve with pneumatic actuator for corrosive gases - D131
    Pneumatic actuator
    Metal / Metal seat
    2.8mm orifice
  • 2-pieces sturdy stem design high pressure cylinder valves for corrosive gases – D160S
    2-pieces sturdy stem design
    Soft Seat
    6mm orifice
  • High pressure cylinder valves with pneumatic actuator for corrosive gases – D156S
    Pneumatic actuator
    6 mm orifice
    Soft seat
  • Spring loaded dual port cylinder valve for corrosive gases – D195S
    Spring loaded
    Soft seat
    6mm orifice
  • Drum valve, 2-pieces sturdy stem packed type design for corrosive and toxic gases – D154S
    Drum valve
    soft seat
    6mm orifice
  • Drum valve, 2-pieces sturdy stem packed type design for corrosive and toxic gases – D158
    Drum valve
    soft seat
    12mm orifice
  • High pressure, packed type cylinder valve for corrosive and toxic gases with non-return valve – D183
    With non-return valve
    Soft reversed seat
    12mm orifice
Small cone valves
  • Small cone valves - C972/C973
    Small cone
    O2, N2O & Mixtures
    O-ring seal
  •  Small cone RPV valves - C978
    Small cone
    O2 and N2O
    RPV valve
  • Small cone RPV valves with integrated manometer - C878/C879
    Small cone
    O2 and inert
    RPV valve
  • Small cone valves - C974/C975
    Small cone
    Inert, mixtures and flammable
    O-ring seal
  • Small cone RPV valves - C979/C980
    Small cone
    Inert, mixtures, flammable, H2
    RPV valve
  • Small cone RPV valves - C969
    Small cone
    CO2 & CO2 mixture
    RPV valve
Line & angled bundle valves
  • Line bundle valves - C140/C141
    Line Bundle Valves
    O2, Inert & mixture
    O-ring seal
  • High pressure line valve specific applications - D605
    Hydrogen, methane and acetylene applications
    O-ring
    12mm orifice
  • ANGLED BUNDLE VALVES - C143/C142
    High Pressure
    O2, inert and mixtures, flammable
    300bars
Breathing air valves
Integrated valves
