STANDARD VALVES Y TYPE - C042/C047
The C042 (without safety) and C047 (with safety) are a dual ported brass cylinder valves for industrial Inert, Mixtures and flamable gases. The both outlets of the valve allow extracting either gaseous or liquid phase from the cylinder.
Key advantages
  • High pressure brass cylinder valve Y type for Inert, Inert mixtures and flammable gas service
  • Dual port design to withdraw liquid and/or vapour
  • Permanent gas tight seal - π marking according TPED directive
  • Tested according EN ISO 10297 and CGA V9 standards
Specifications
Working pressure pmax.200 bar
Gas typeInert
Seat orifice size7 Mm
Helium leak rate at pmax.internal 10-3 mbarl/sec external 10-3 mbarl/sec
materialhand: wheel aluminium, seat: PA 6.6, O-rings: EPDM, body: brass
In- and outlet connectionsin accordance with all country standards (details p.70)
Cv0,5
SafetyC042: No C047: Yes
Temperature range-20 to +65 °c

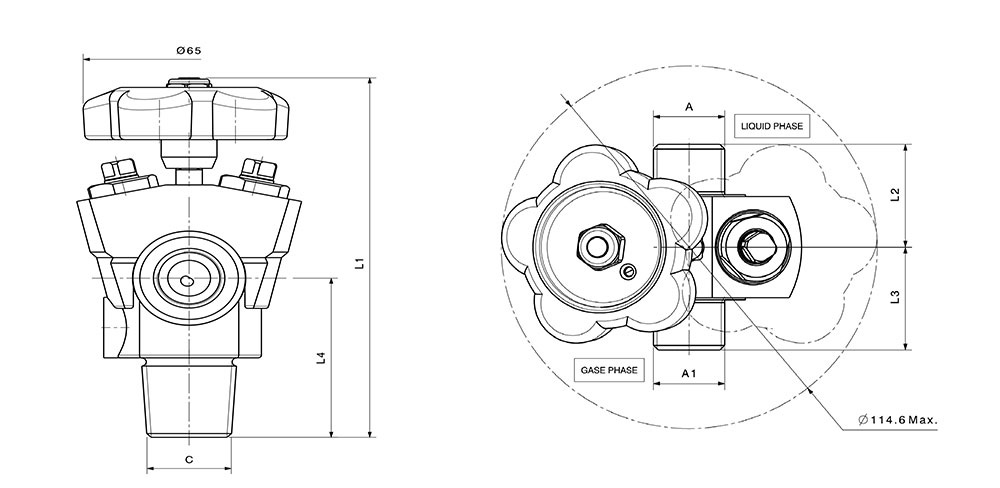

Dimensional drawings
Drawing
Product Configurator

Safety
Safety set up
Body material
Actuation
Inlet
Outlet
Dip tube
Gas
C04
2
0
L
S
25E
6
0
IM

Without (300 bar)
With (300 bar)
Without
Burst disc 250 bar
Burst disc 4350 psi CG1
Burst disc 450 bar
Other
Brass
Chrome plated brass
Single central alu handwheel
Handwheel - standard
Painted handwheel
Handwheel with logo cap
Key operated Square 7.8
Key operated 5.9 x dia 9.3
Medium Size Alu
Small Plastic Black
Small Plastic Red/Blue
Other
25E EN ISO 11363
3/4”-14 NGT CGA V-1
M 30 x 2 - 30P EN ISO 15245-1
Other
DIN 477-1 Nr.6
UNI 11144 No.2
Other
Without
M10x0,75
1/4” - 18NPT
G1/4” - 1/4”BSP
Other
Inert & Mixtures (IM)
Flammable (F)
Gas list P.91
