Standard valves - C040/C045
The C040/041 are high pressure brass cylinder valve for carbon dioxide and mixtures.
Key advantages
  • High pressure brass cylinder valve for CO2 and CO2 mixtures service
  • Permanent gas tight seal
  • π marking according TPED directive
  • Tested according EN ISO 10297 and CGA V9 standards
Specifications
Working pressure pmax.200 bar
Gas typeO2, N2O
Seat orifice size8 Mm
Helium leak rate at pmax.internal 10-3 mbarl/sec external 10-3 mbarl/sec
materialhand: wheel aluminium, seat: PA 6.6, O-rings: EPDM, body: brass
In- and outlet connectionsin accordance with all country standards
Cv0,5
SafetyC040: No C045: bursting disc
Temperature range-20 to +65 °c

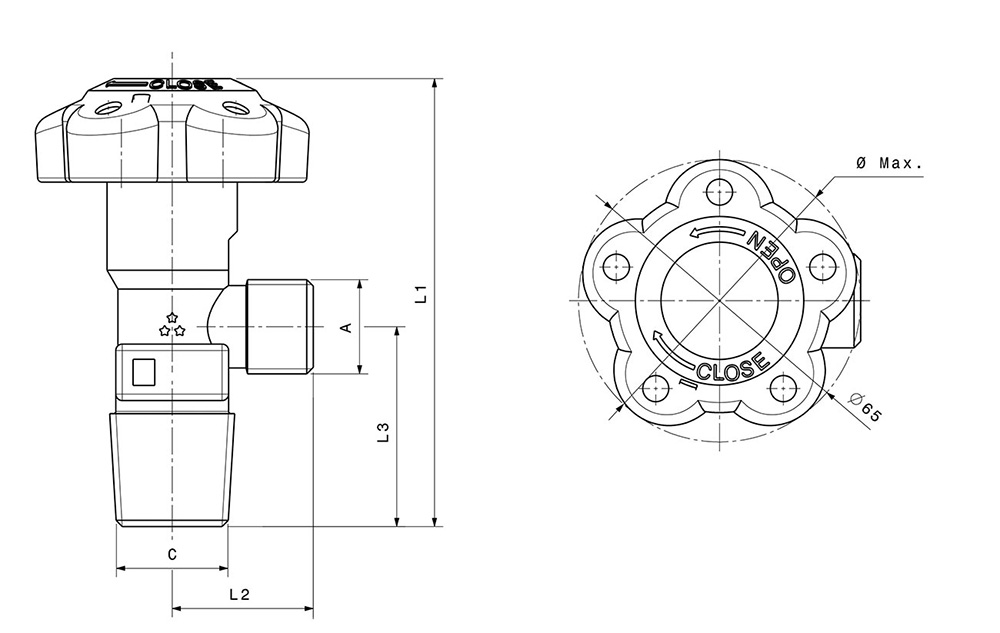

Dimensional drawings
Drawing
Product Configurator

Safety
Safety set up
Body material
Actuation
Inlet
Outlet
Dip tube
Gas
C04
0
0
L
A
25E
6
0
CO2

Without
With
Without
Burst disc 3000 psi CG1
Burst disc 190 bar
Burst disc 250 bar
Other
Brass
Chrome plated brass
Handwheel - standard
Painted handwheel
Handwheel with logo cap
Key operated Square 7.8
Key operated 5.9 x dia 9.3
25E EN ISO 11363
3/4”-14 NGT CGA V-1
Other
DIN 477-1 Nr.6
NF E29-650 Type C
Other
Without
M10x0,75
1/4” - 18NPT
Other
CO2
Gas list P.XX
