THE ELECTRONICS INDUSTRY: A FAST-GROWING MARKET WITH SPECIFIC NEEDS

Particle generation inside a gas circuit is one of the most costly failure modes in electronics manufacturing.

A single metallic particle or micro-chip released by a valve body travels downstream and reaches the process tool.

In a deposition or etch step, that particle lands on the wafer surface and creates a defect.

Depending on the process stage, one contamination event can result in the rejection of an entire wafer batch.

At current production costs, a single rejected batch represents a significant financial loss.

Purging, inspecting, and requalifying a process gas line can take days, during which the production tool remains offline.

Process gases used in semiconductor manufacturing include arsine, silane, hydrogen fluoride, nitrogen trifluoride, and tungsten hexafluoride.

Exposure to these gases at even trace concentrations presents a lethal risk to operators.

Leak prevention in a UHP gas system starts with the selection of valve and fitting technologies that provide verified, quantified leak integrity rather than relying on routine inspection alone.

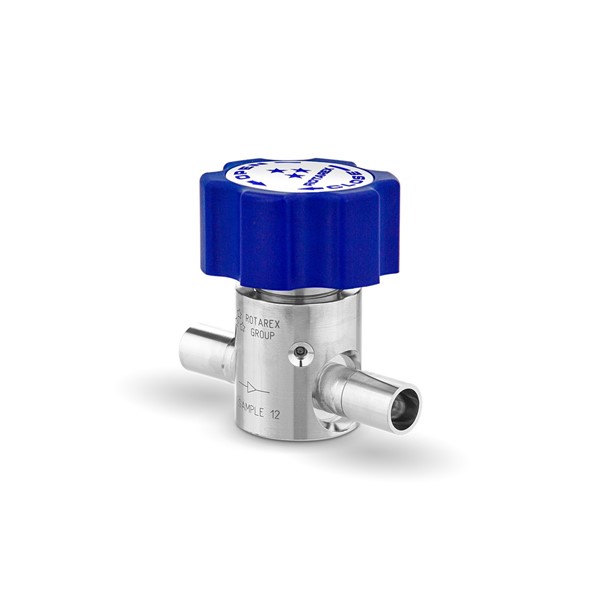

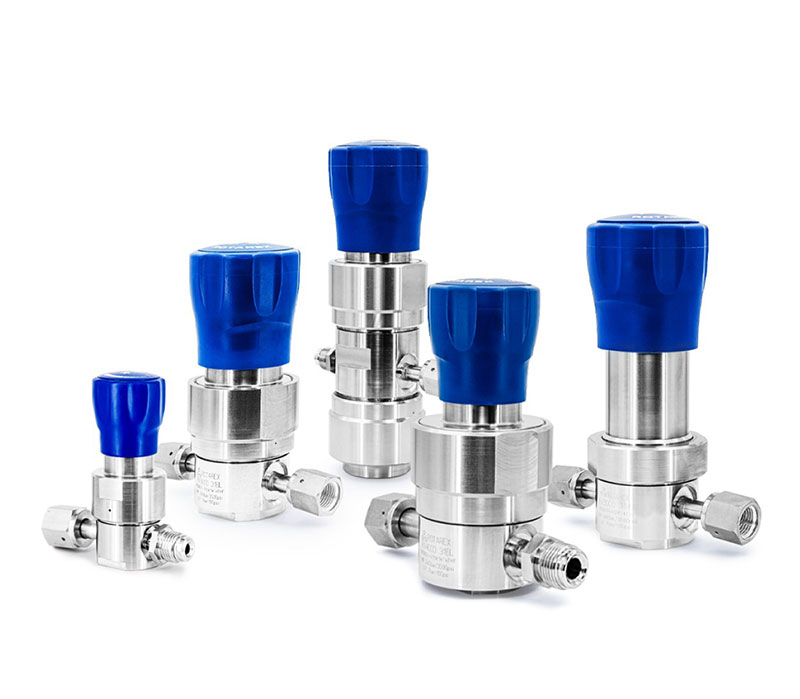

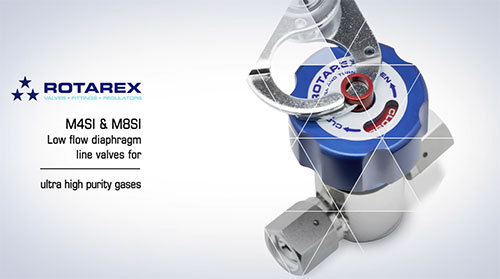

Rotarex UHP equipment provides leak integrity rated up to 10⁻¹¹ mbar.l/s, using tied diaphragm sealing technology and metal-to-metal face seal fittings that eliminate elastomer seals incompatible with aggressive chemistries.

Every unit is 100% helium leak tested before shipment, with full traceability documentation to support safety audits and regulatory compliance requirements.

A semiconductor fab gas distribution system involves cylinder valves, line valves, pressure regulators, fittings, connectors, and precursor canisters.

Sourcing these components from multiple suppliers creates a series of operational constraints.

Each supplier requires a separate qualification process, separate documentation, and separate maintenance procedures.

Purity standards and material certifications may not be consistent across vendors, creating gaps in the overall cleanliness and integrity of the gas circuit.

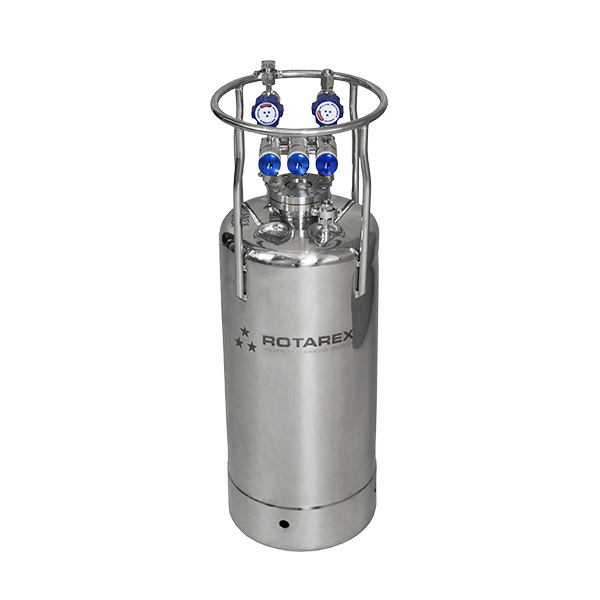

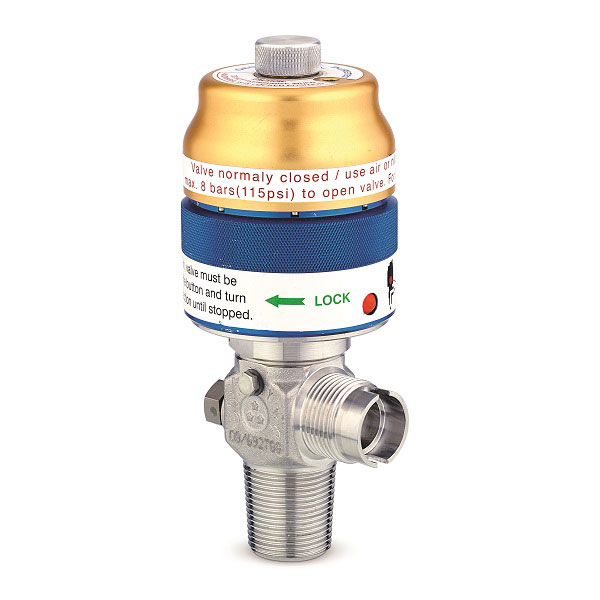

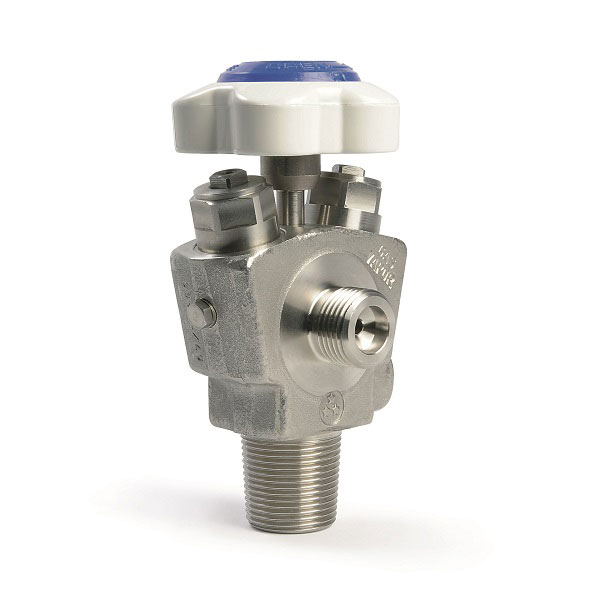

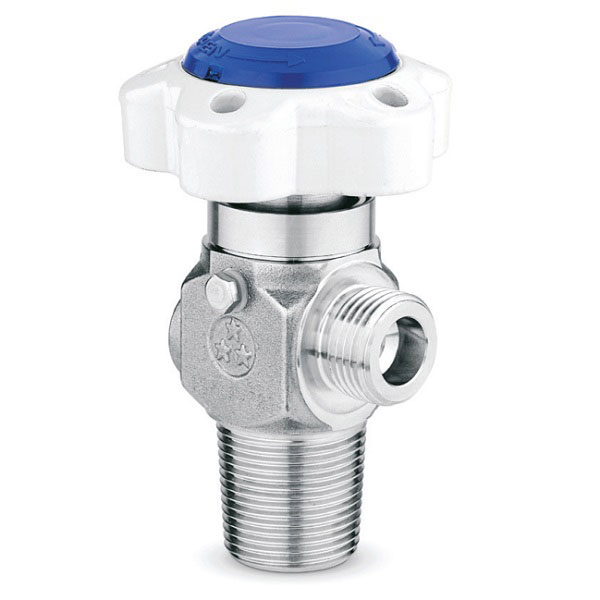

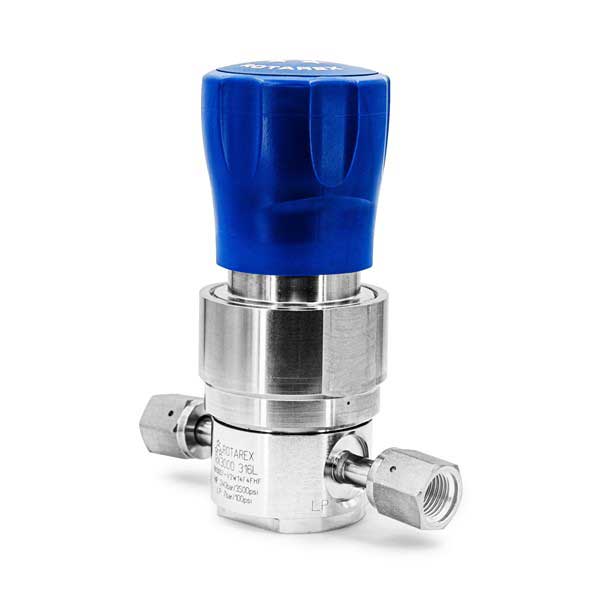

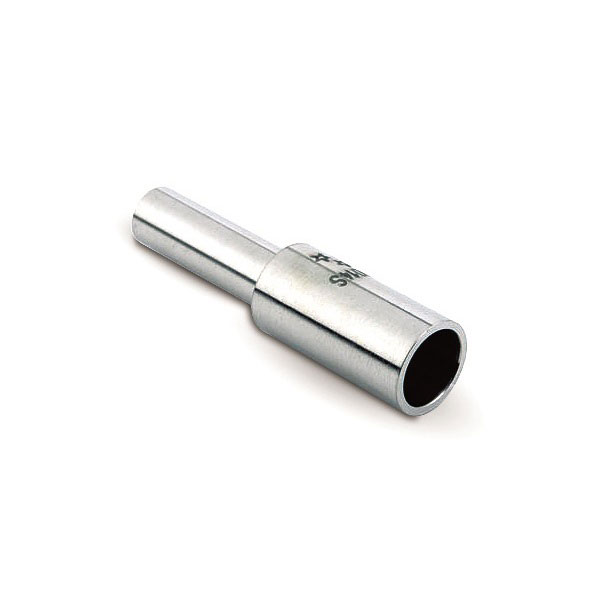

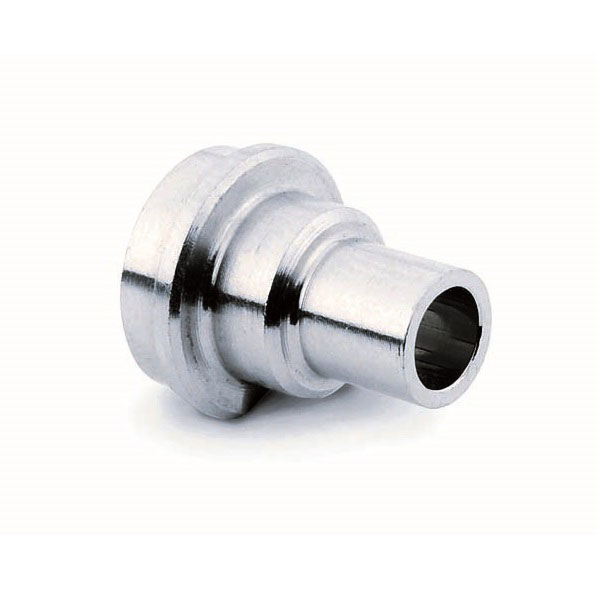

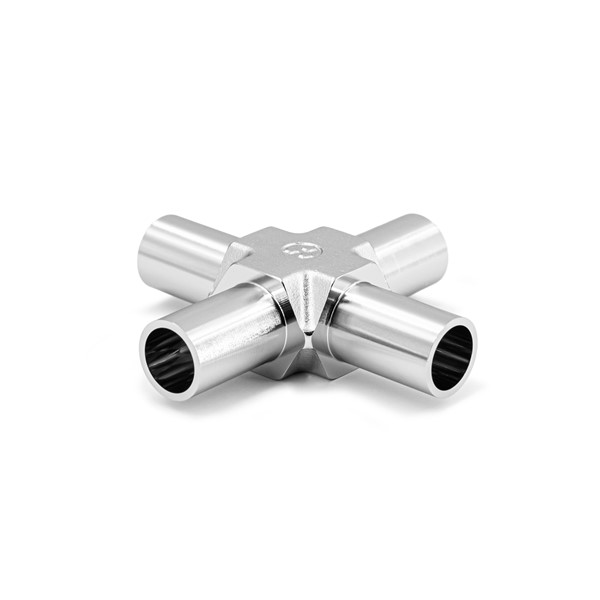

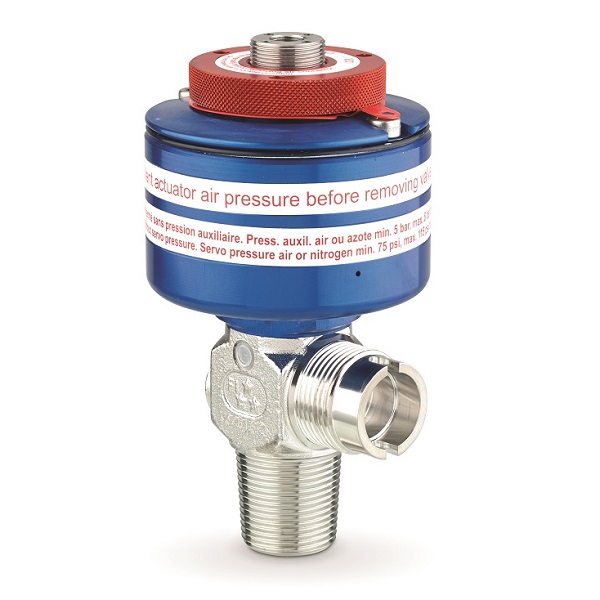

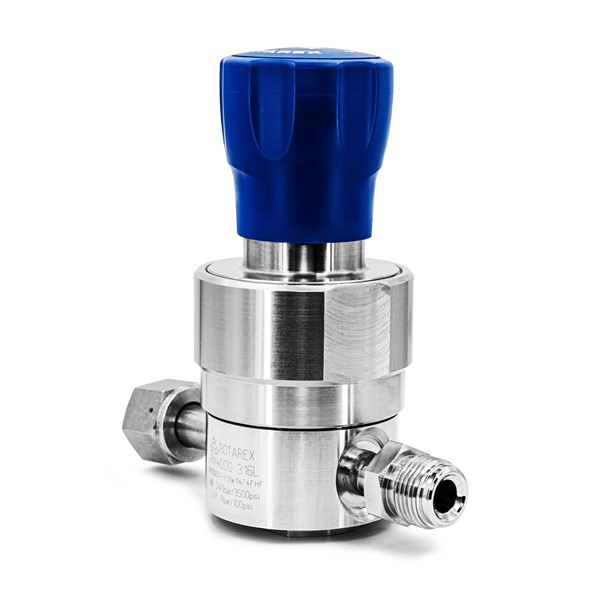

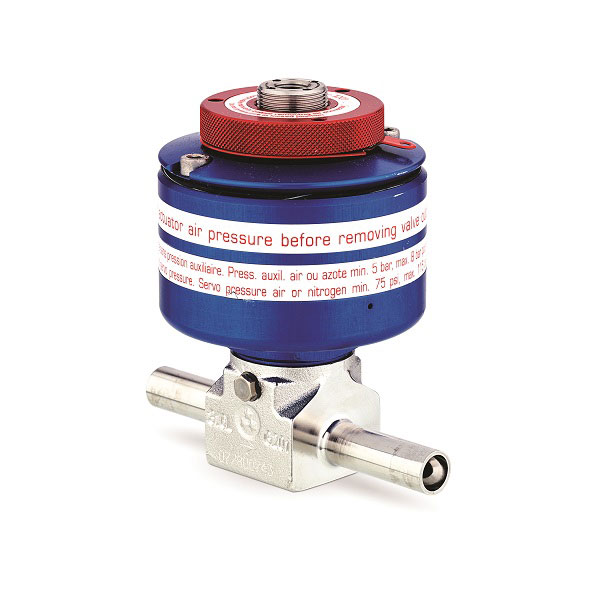

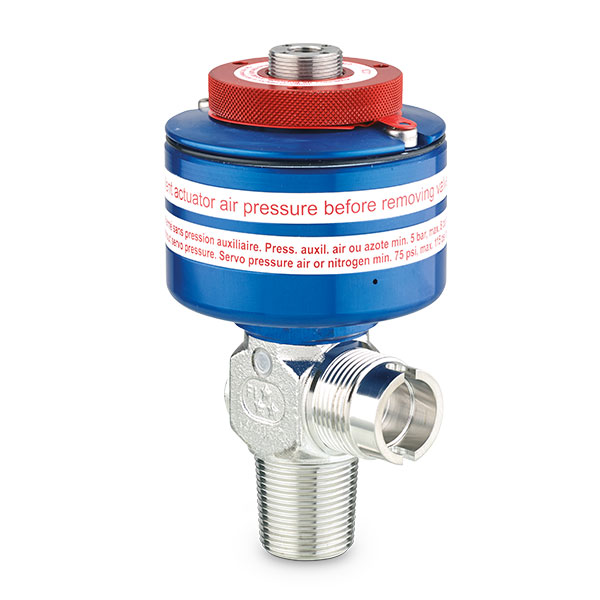

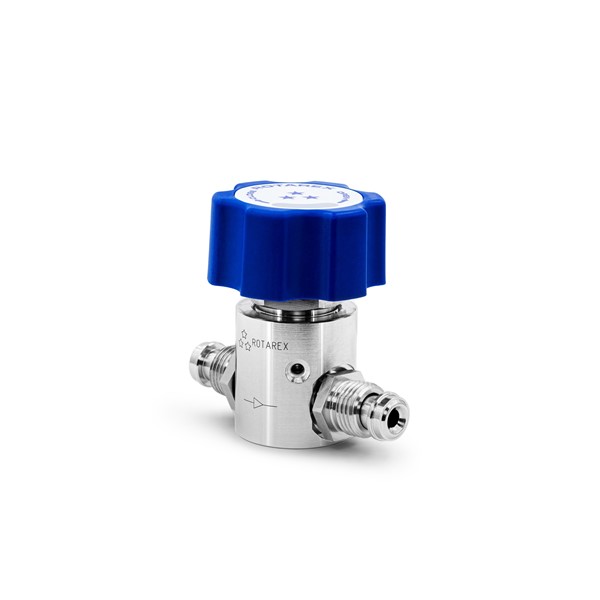

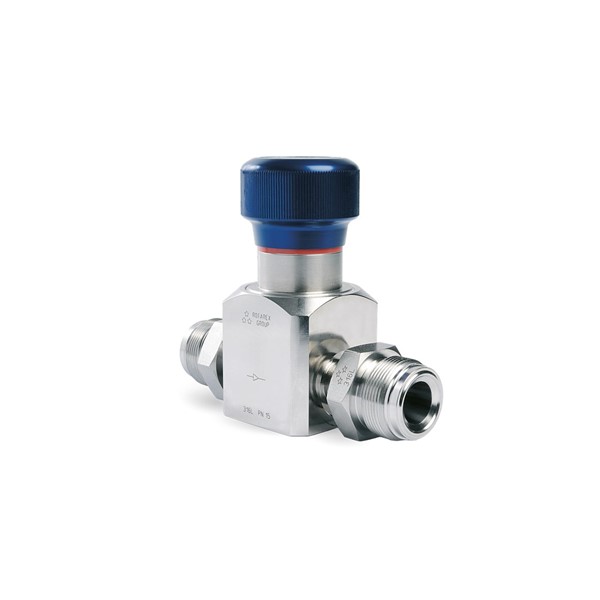

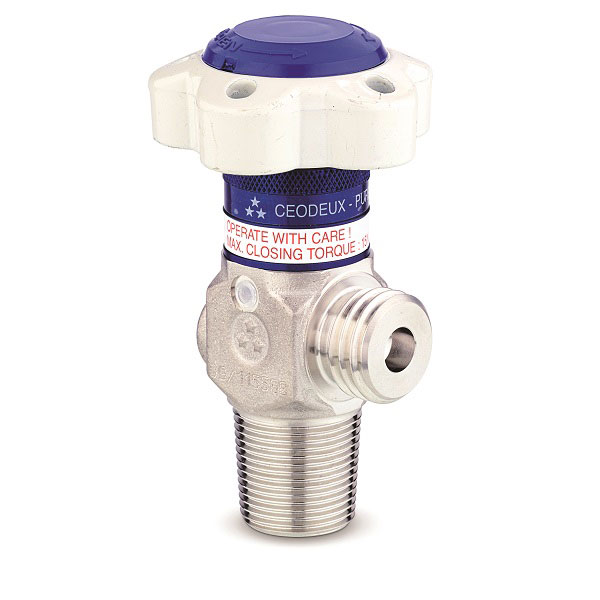

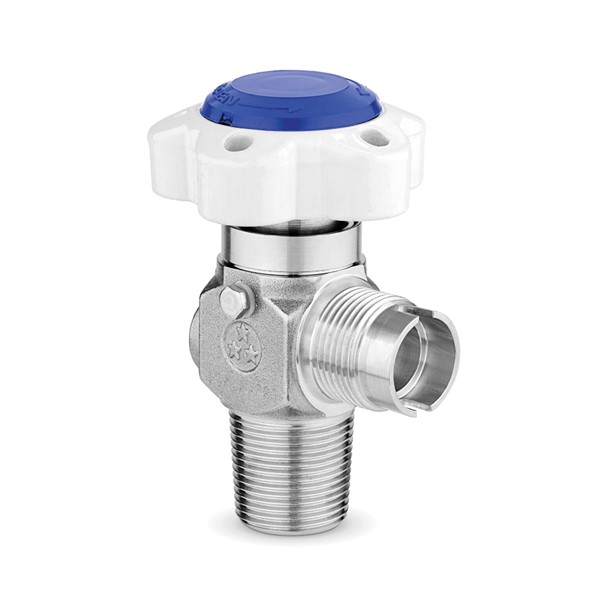

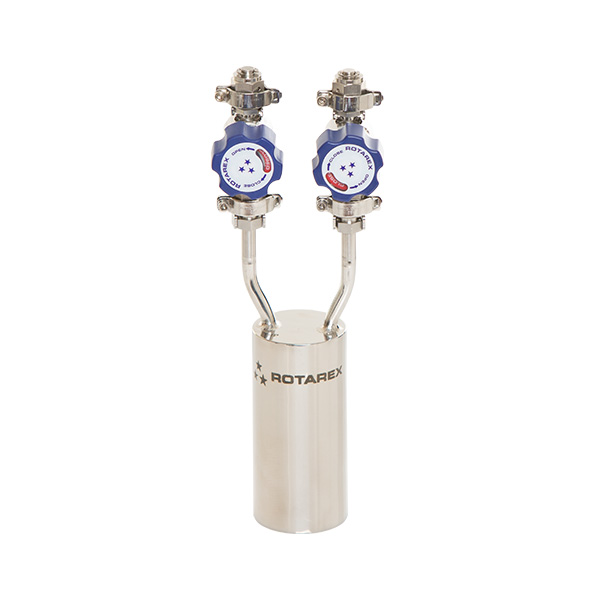

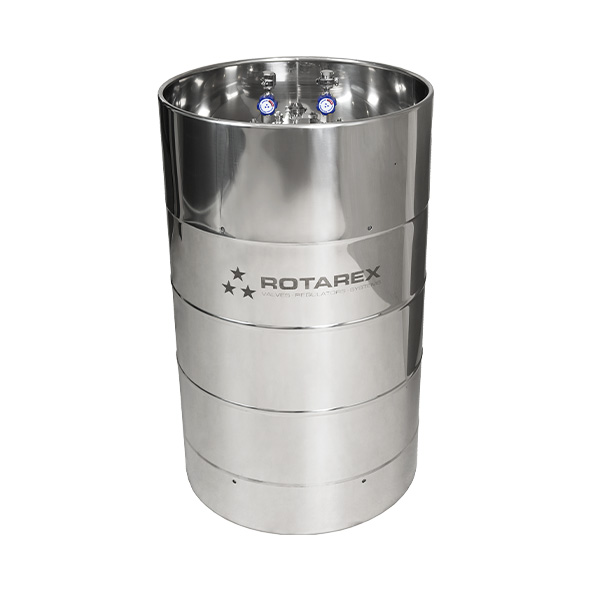

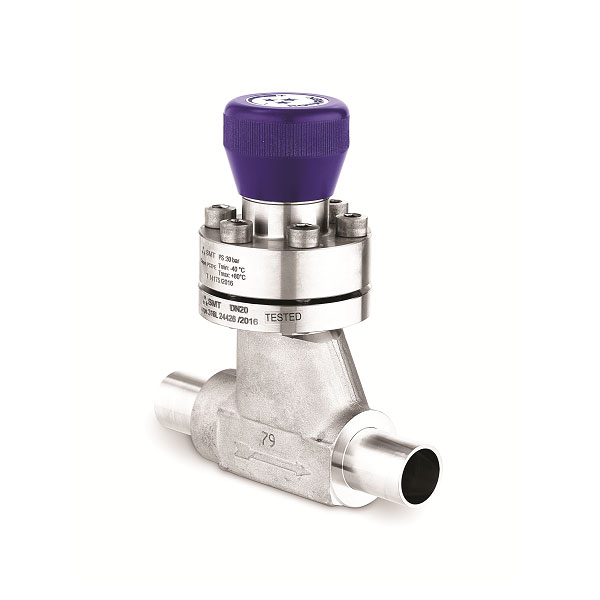

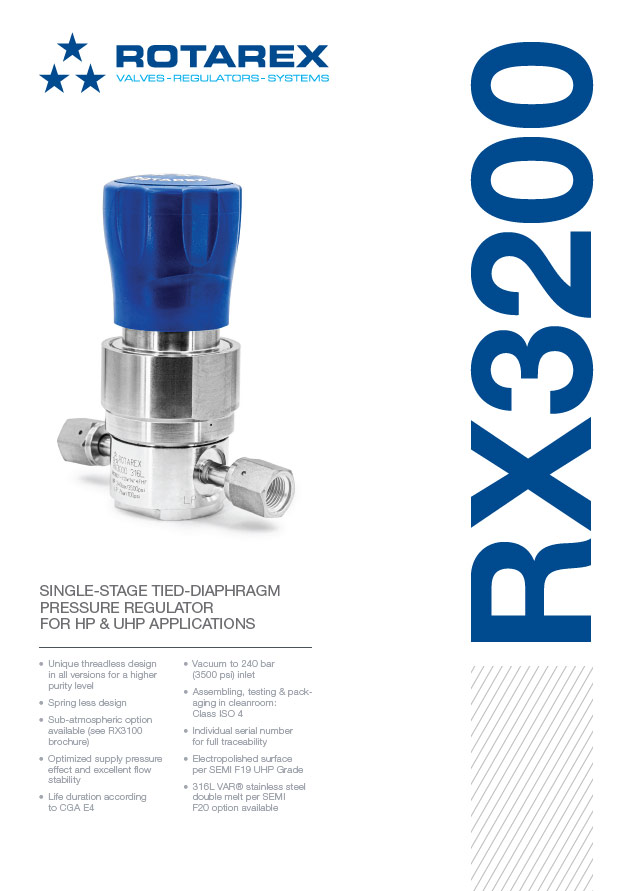

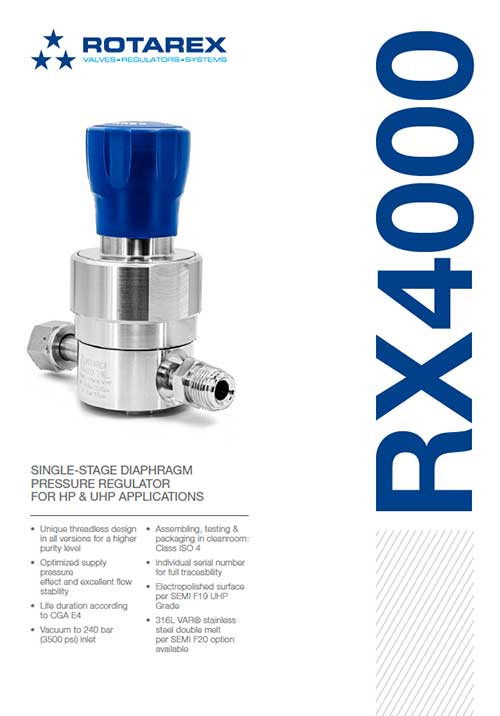

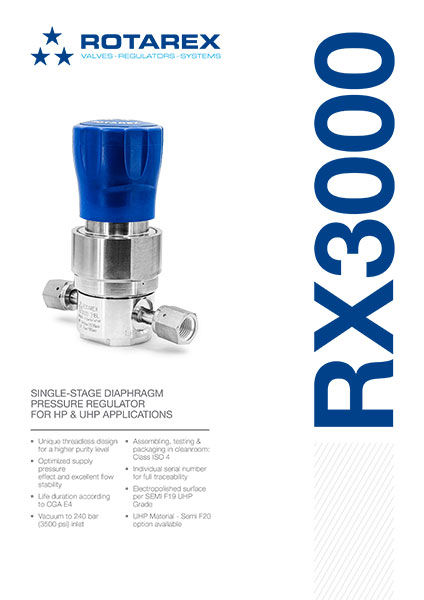

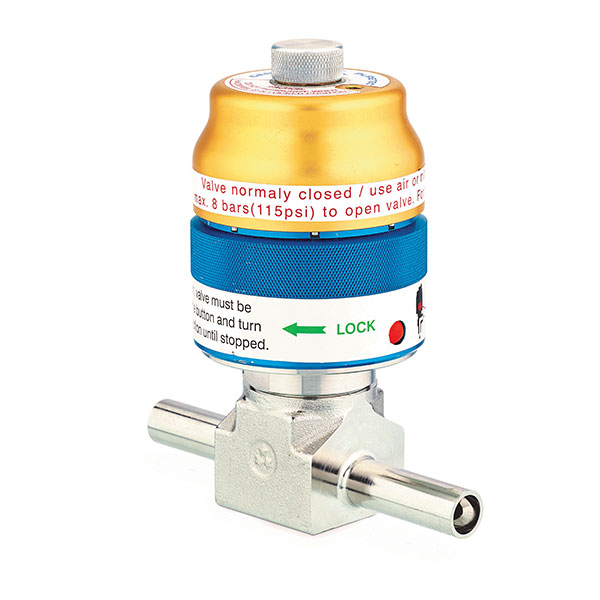

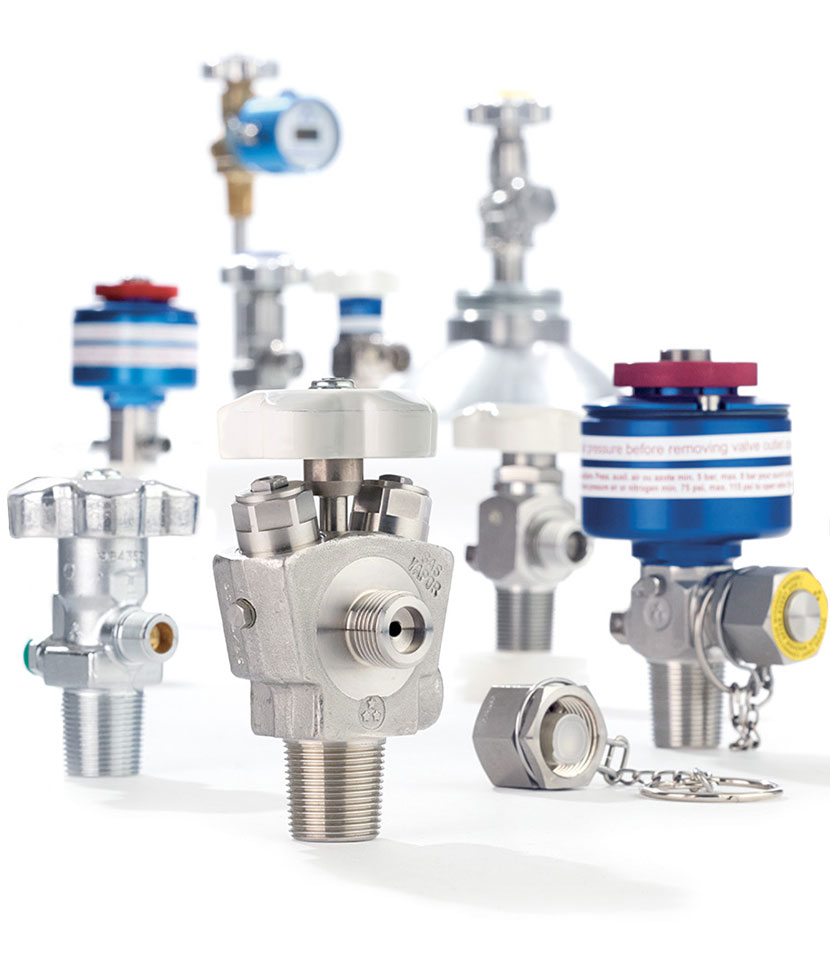

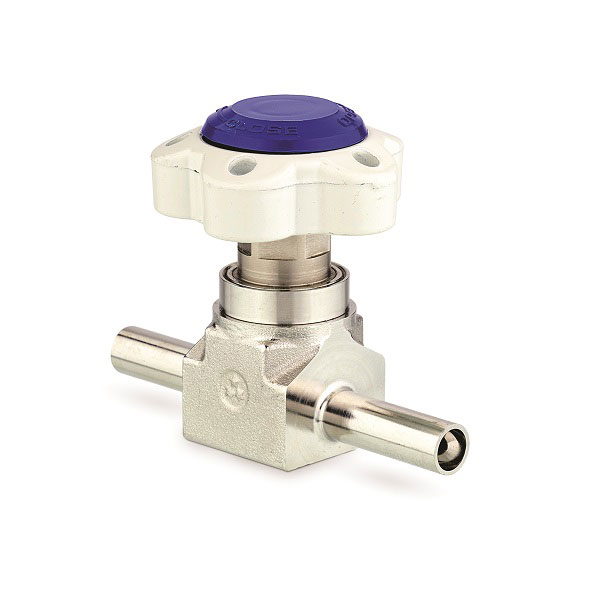

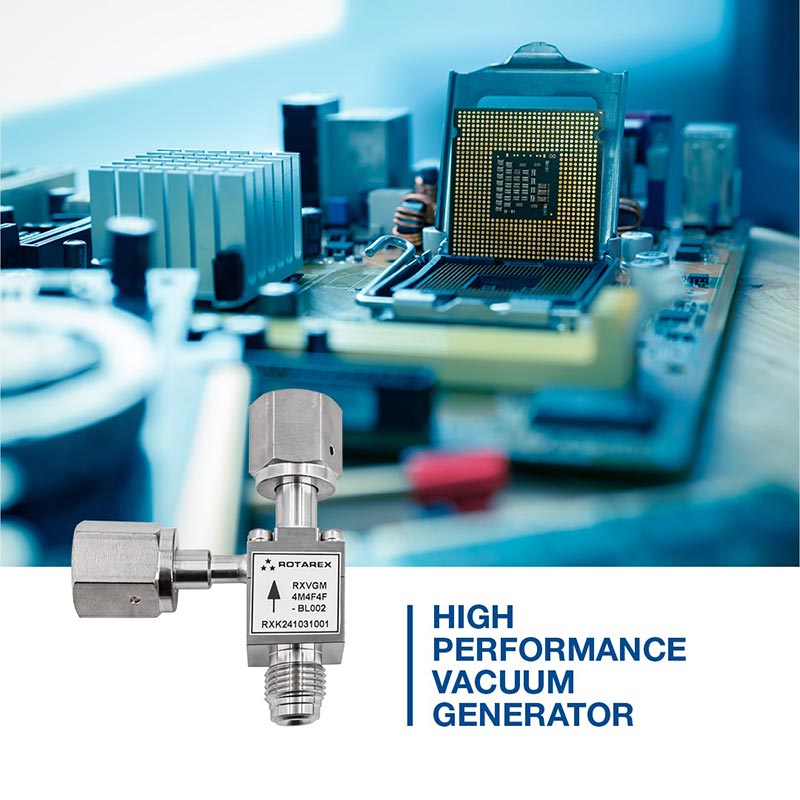

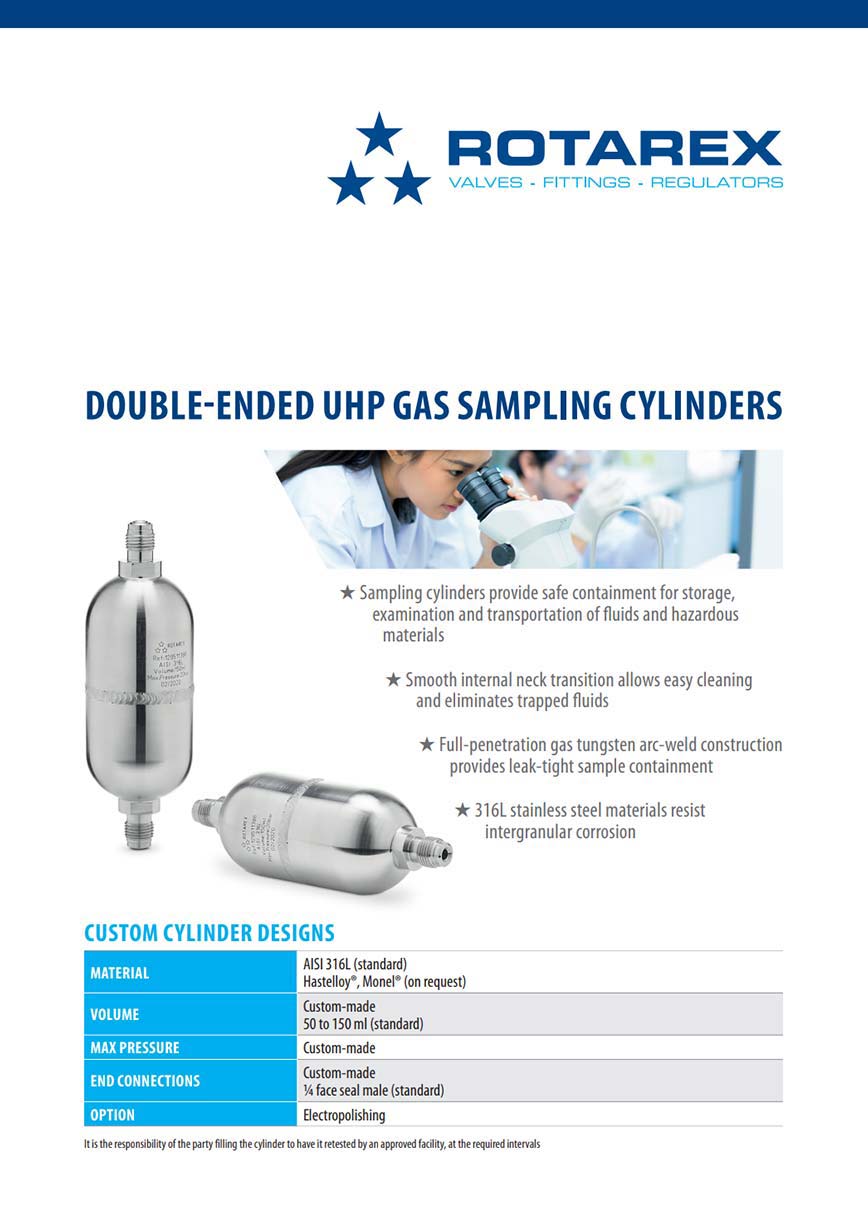

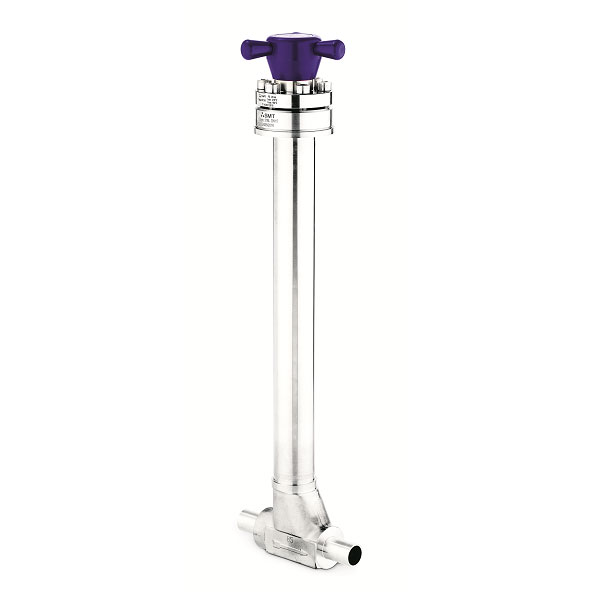

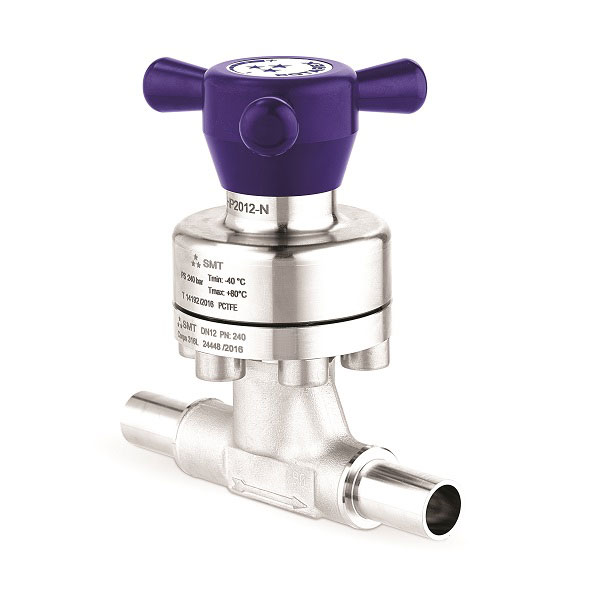

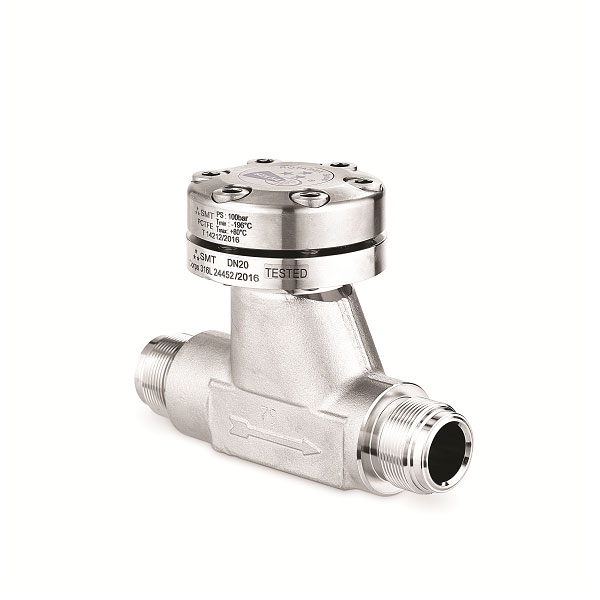

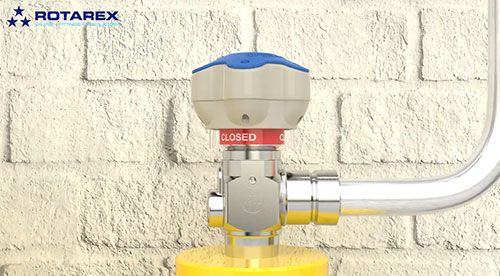

Rotarex supplies every component category required for a complete UHP gas distribution system, from ultra-high purity gas cylinder valves to ultra-high purity pressure regulators, ultra-high purity line valves, ultra-high purity fittings, canisters, precursors and bubblers, and vacuum generators.

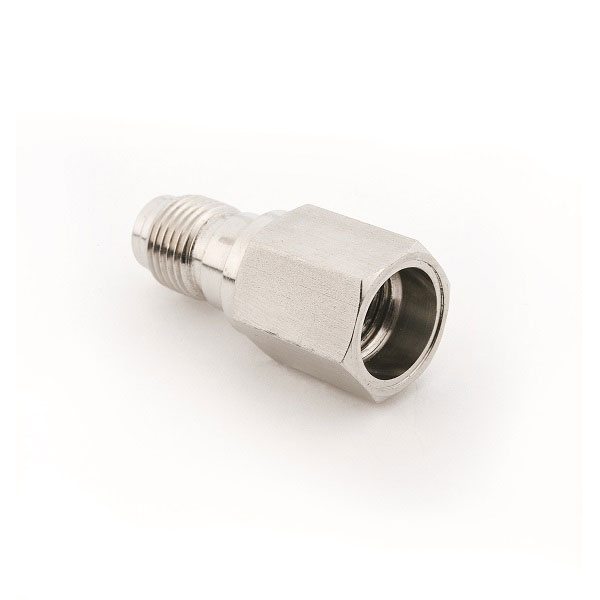

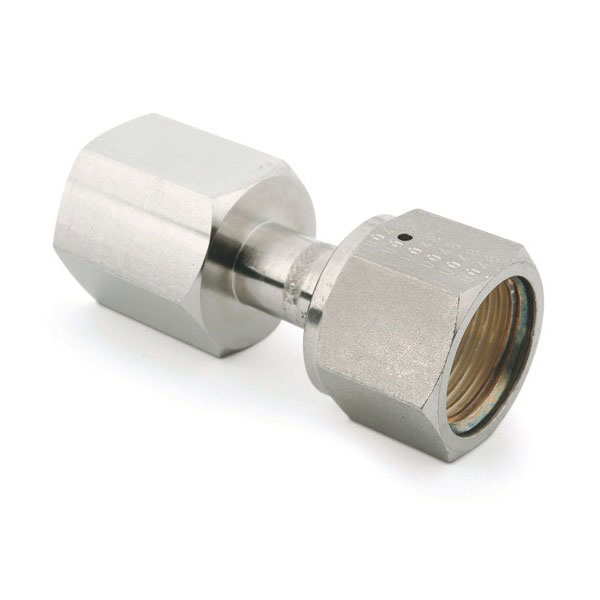

Standard industrial fittings are not designed for the material compatibility, surface finish, or leak integrity requirements of semiconductor process gas systems.

Elastomer seals used in standard fittings degrade under exposure to fluorine compounds, halides, and strong oxidizers, releasing contamination particles and creating leak paths over time.

Surface roughness on non-electropolished internal surfaces provides sites for particle adhesion and outgassing, introducing contamination into the gas stream at every connection point.

In a gas circuit handling specialty gases valued at tens of thousands of euros per cylinder, a single fitting failure means the loss of the gas charge, potential contamination of the process tool, and a safety incident if the gas is toxic.

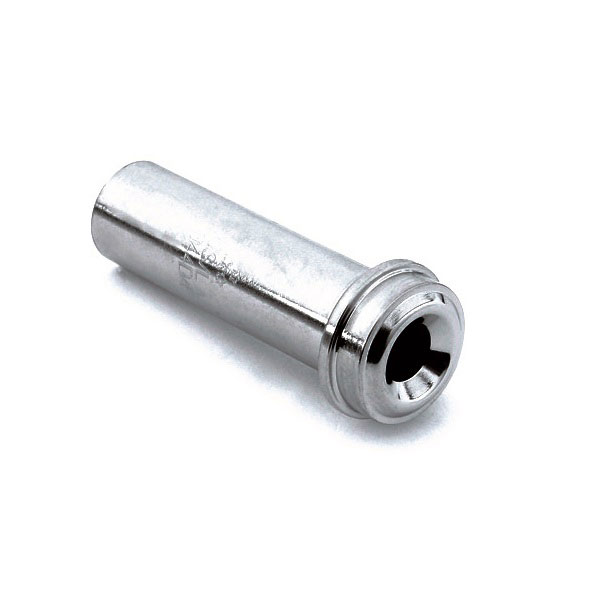

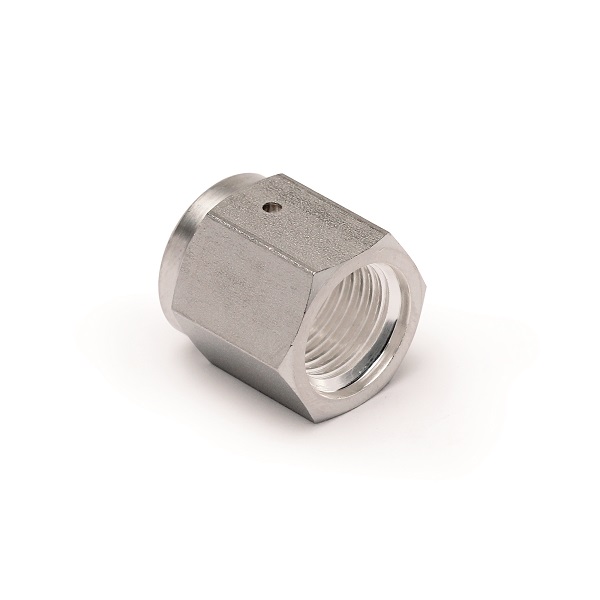

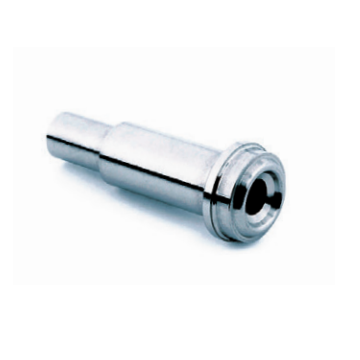

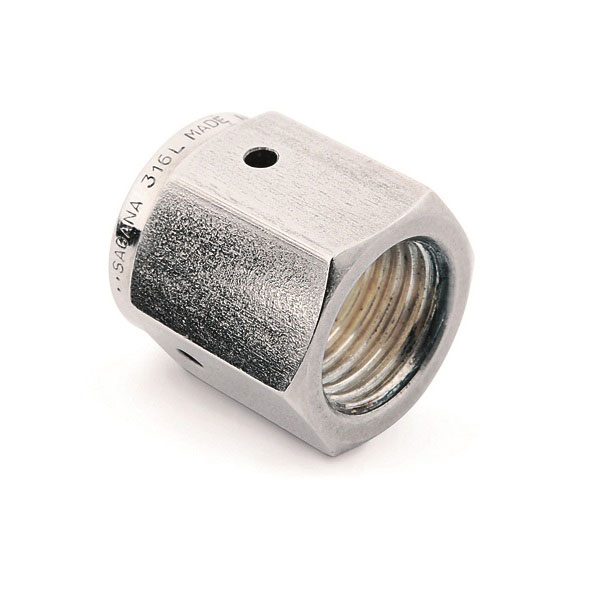

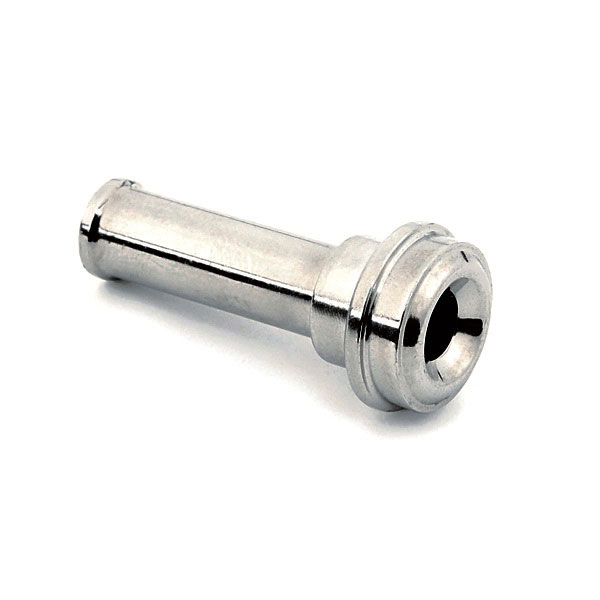

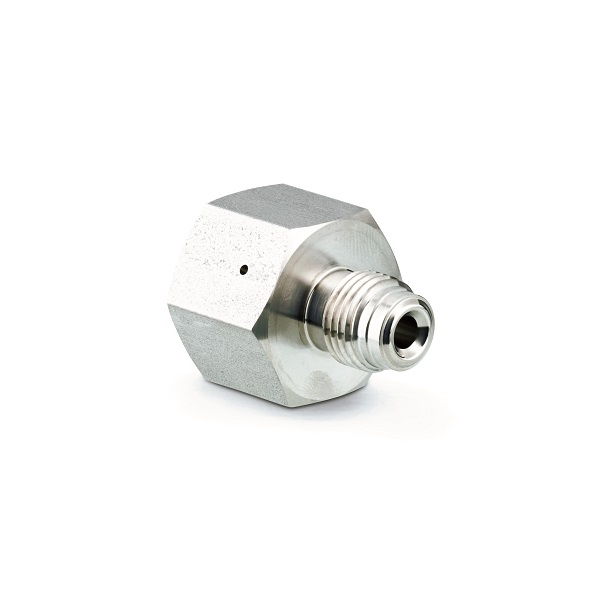

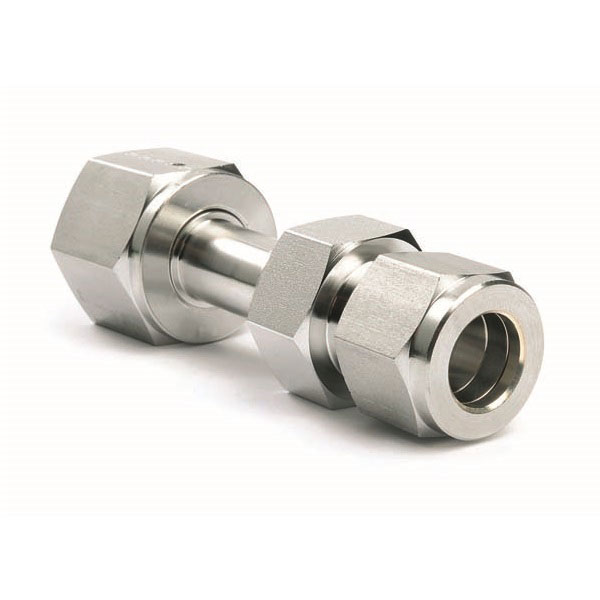

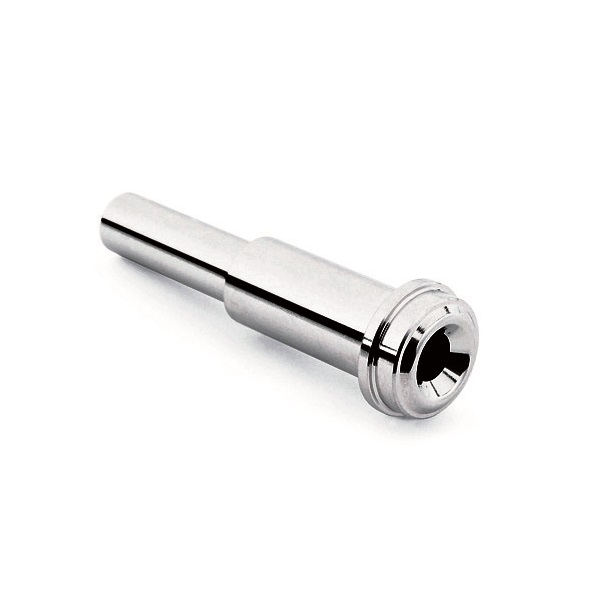

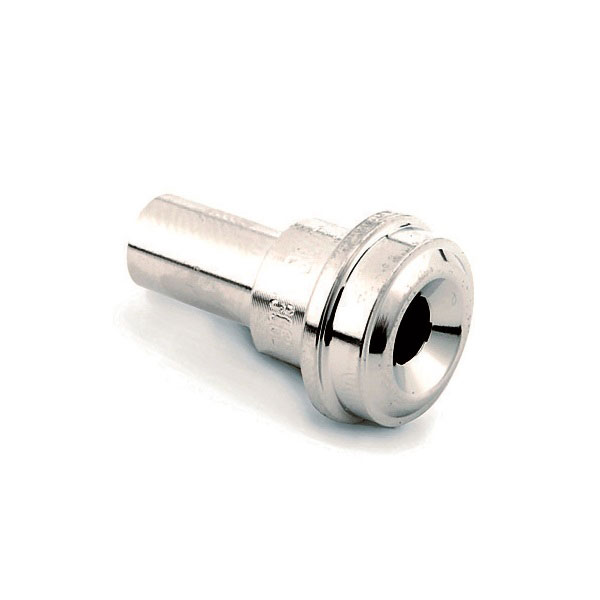

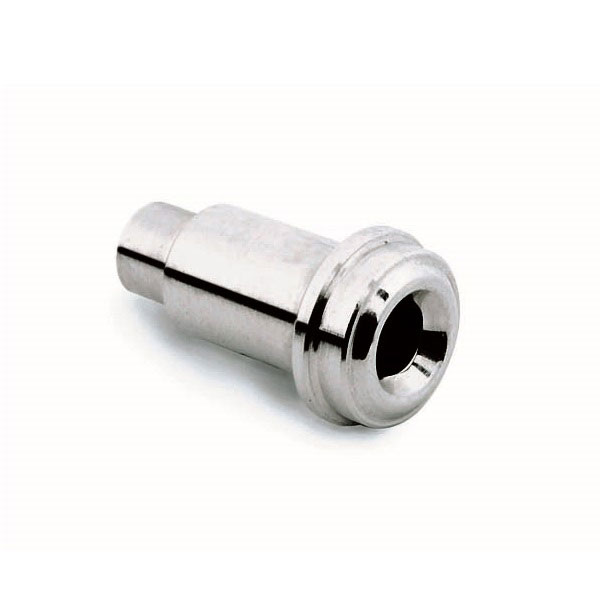

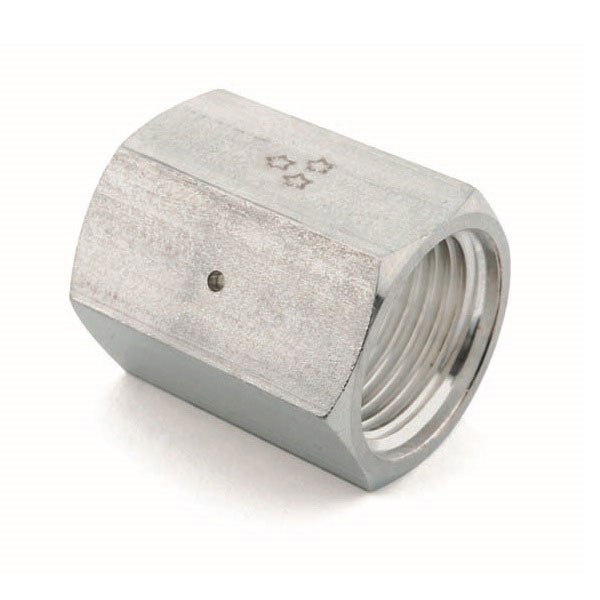

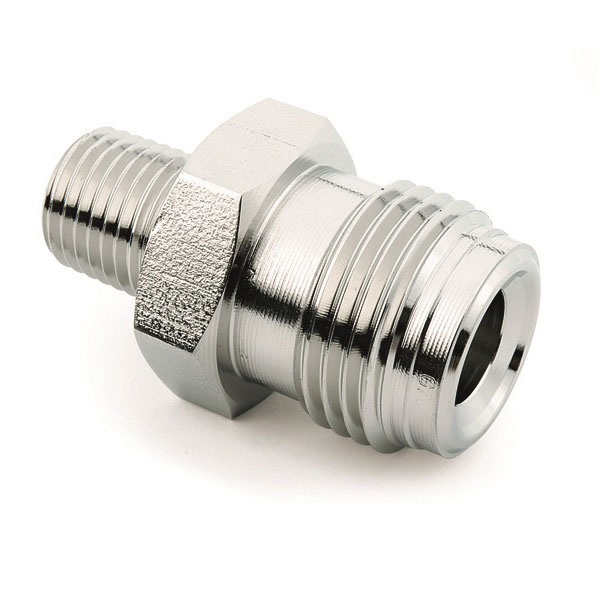

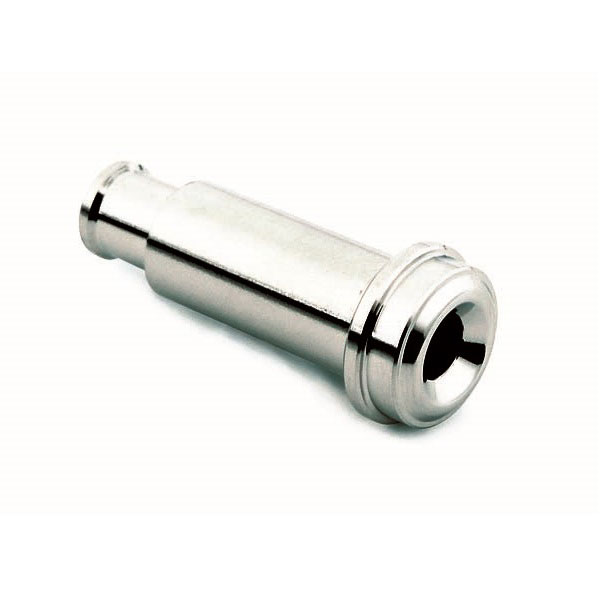

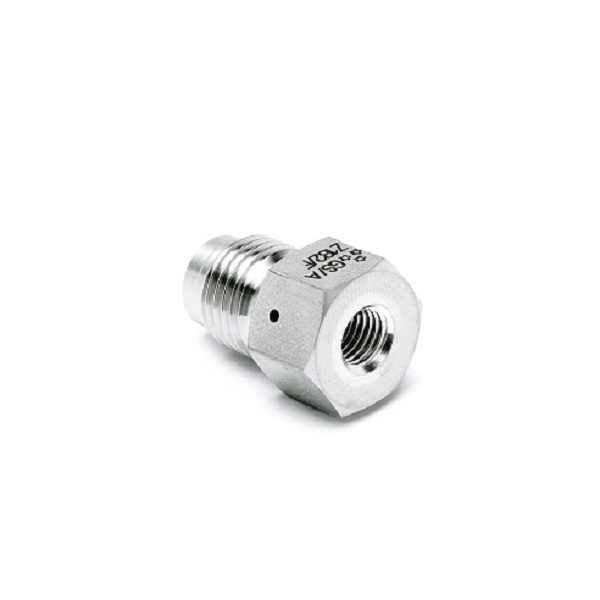

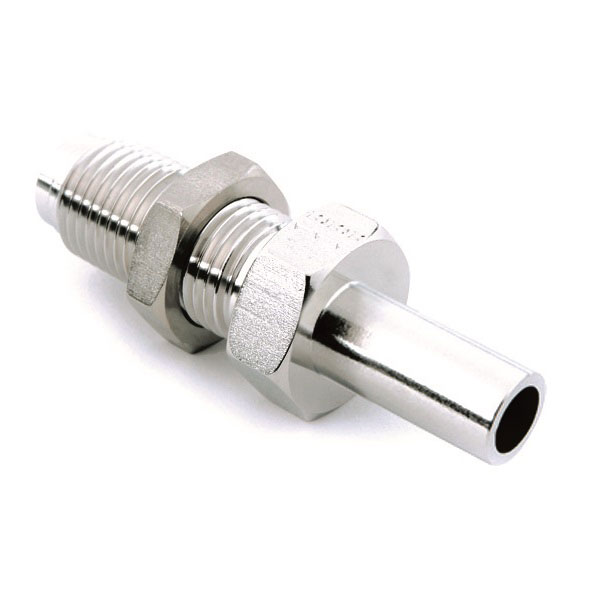

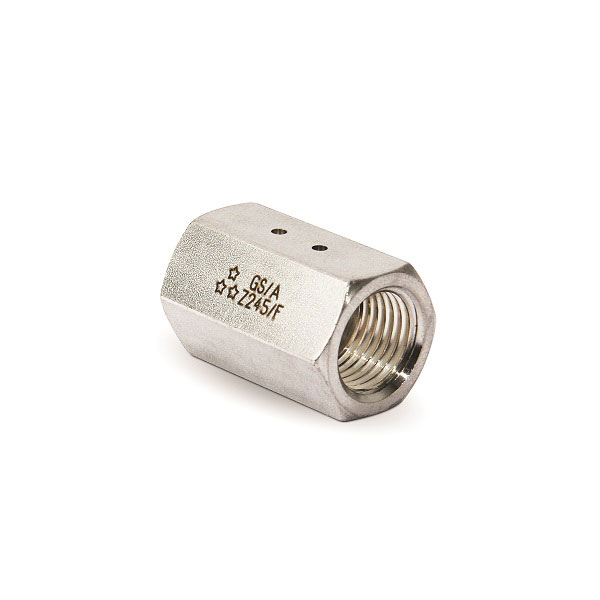

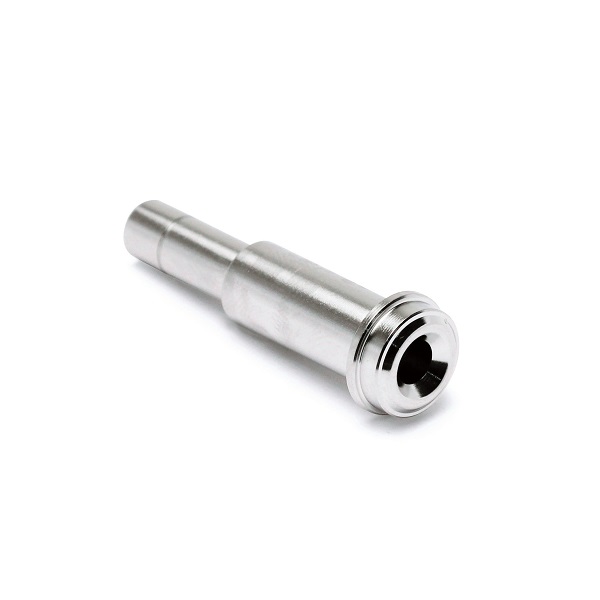

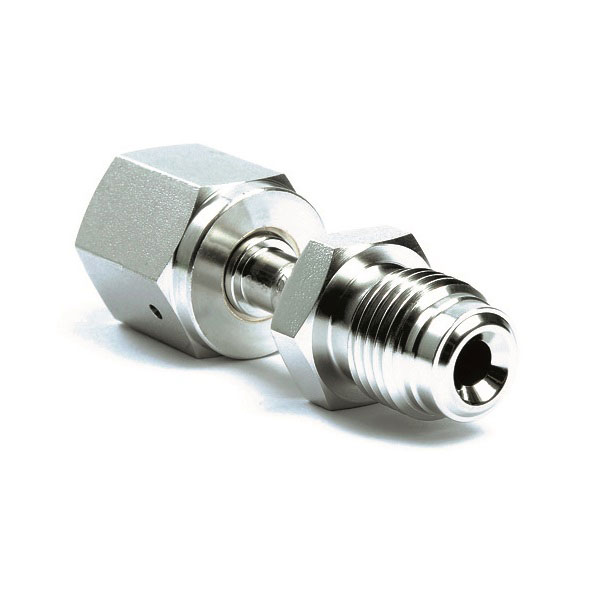

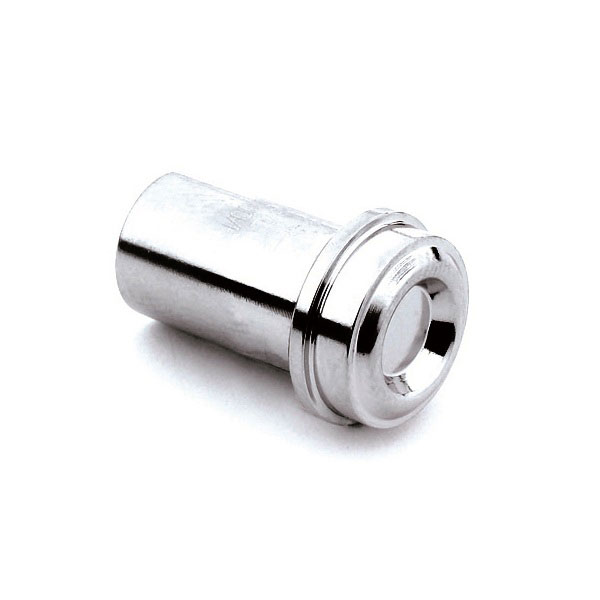

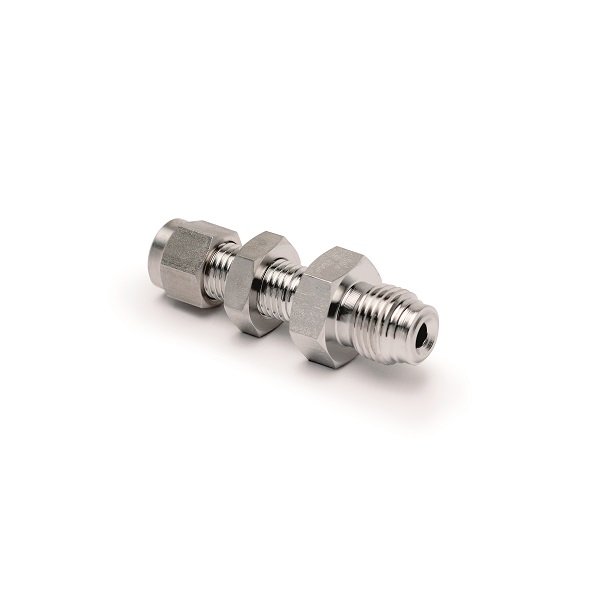

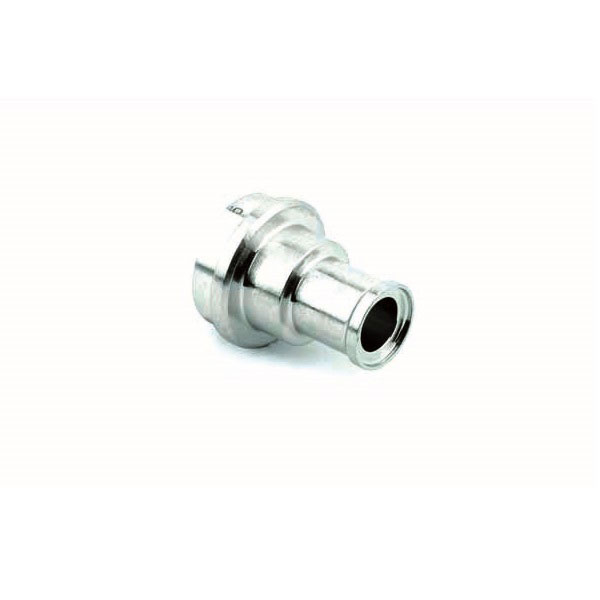

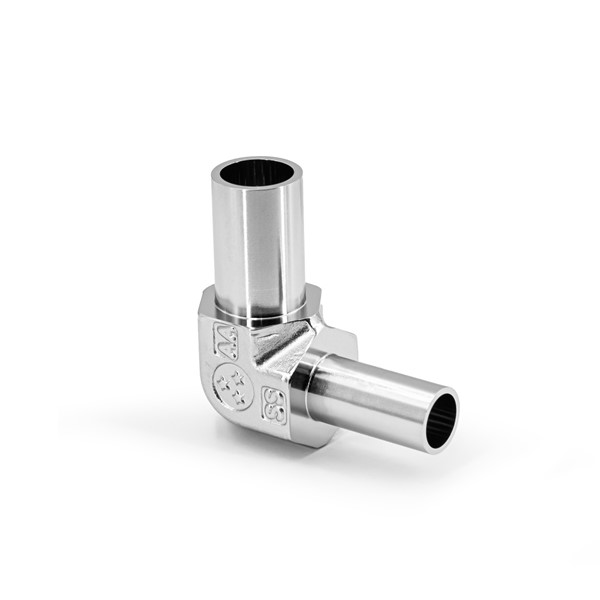

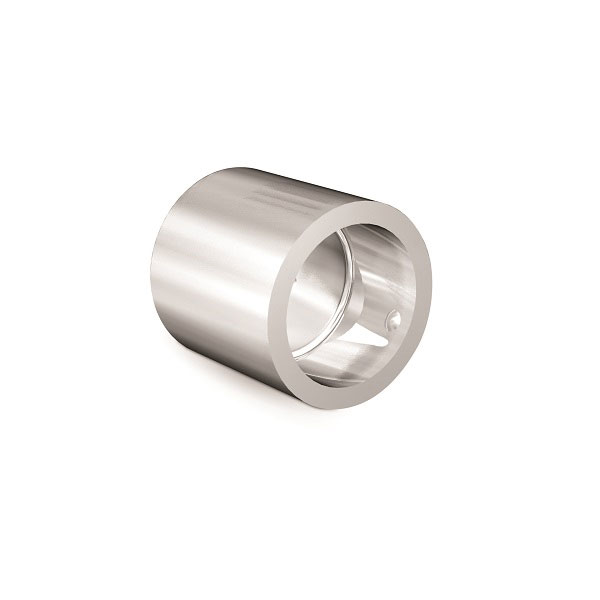

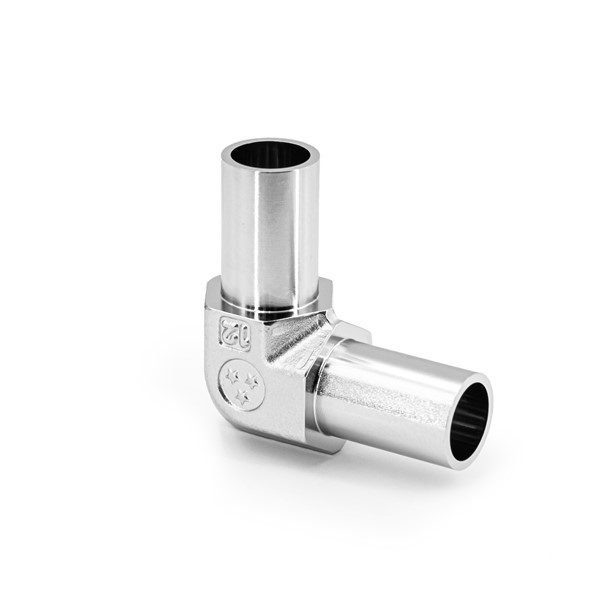

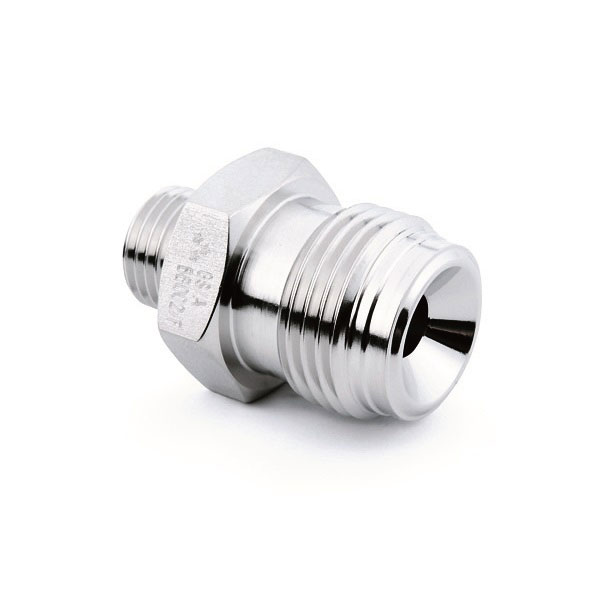

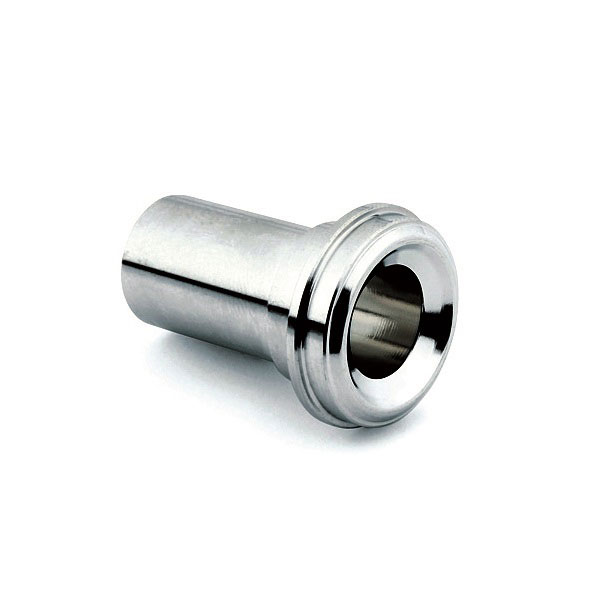

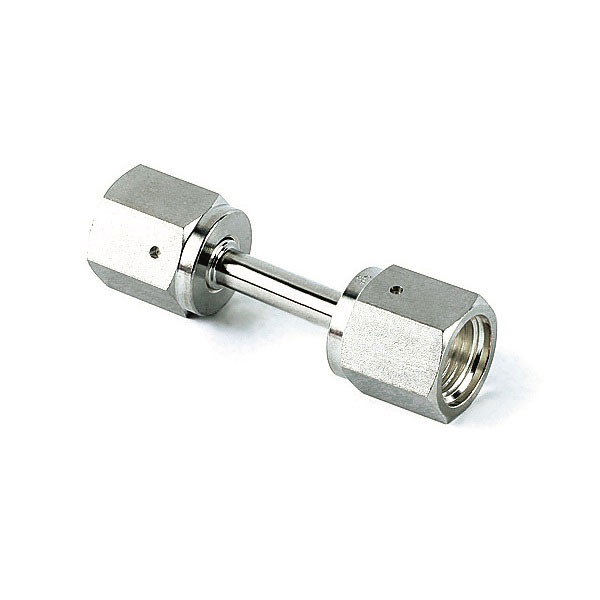

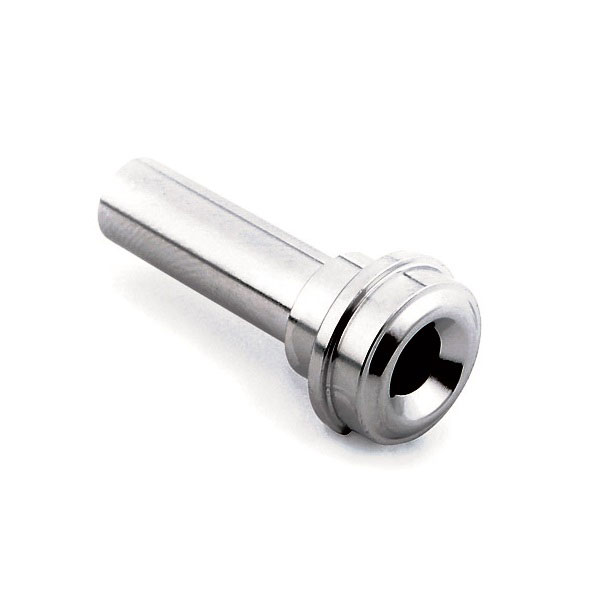

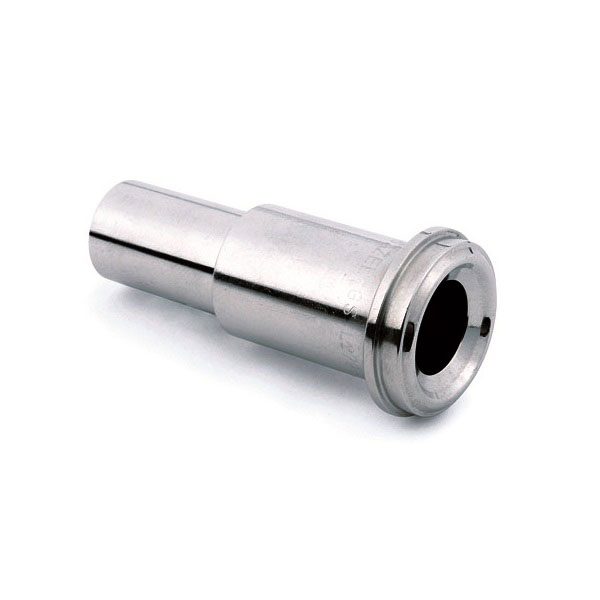

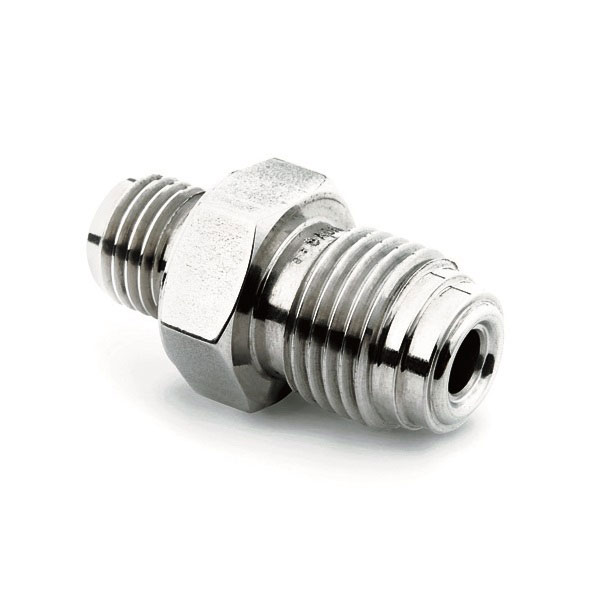

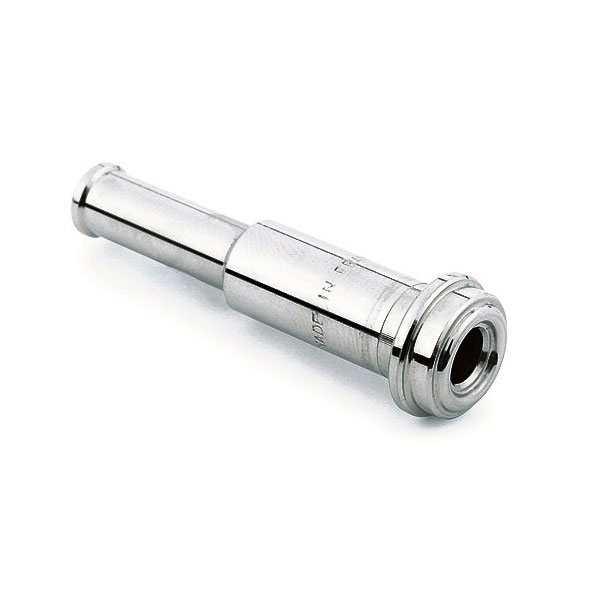

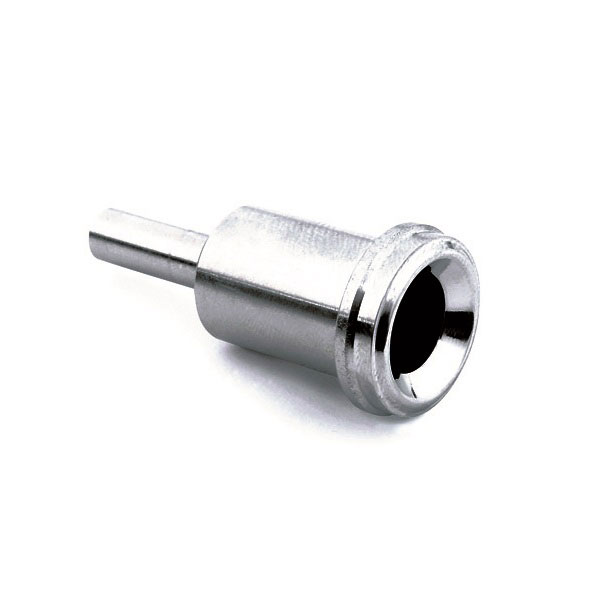

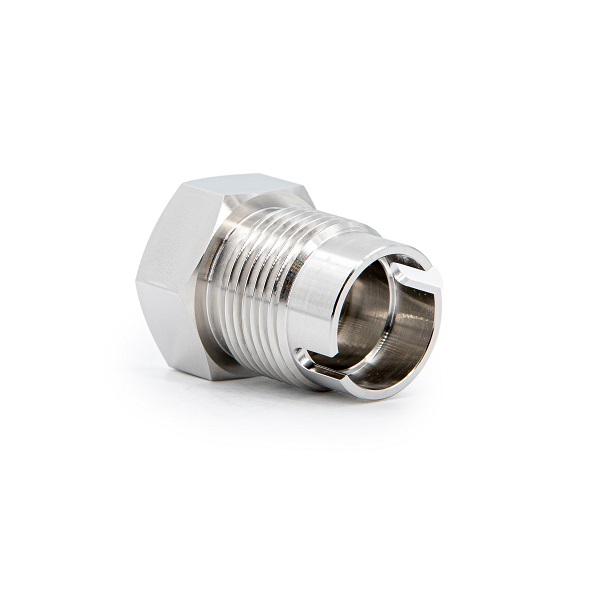

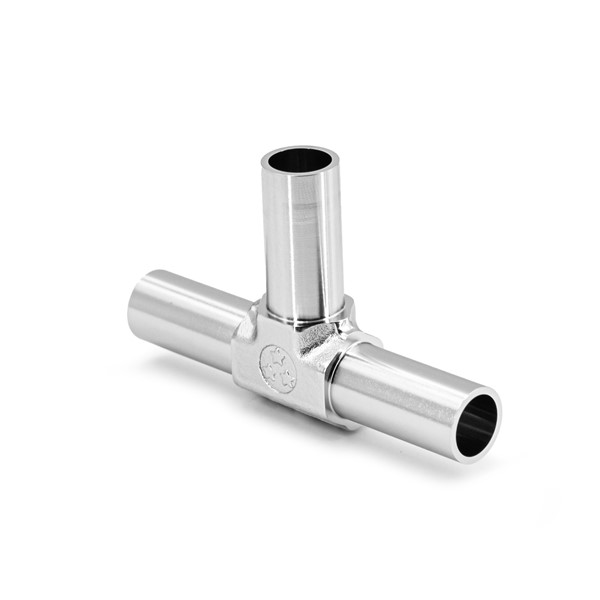

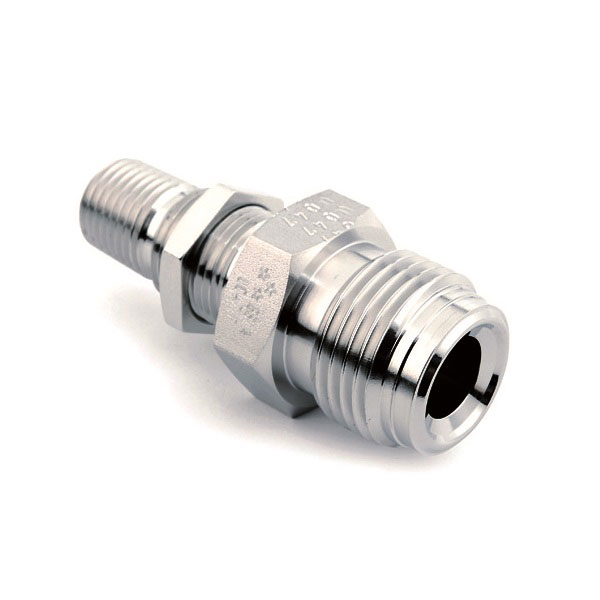

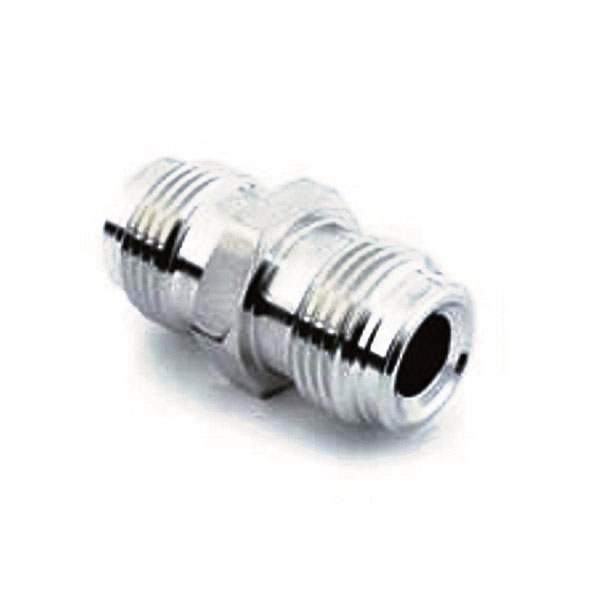

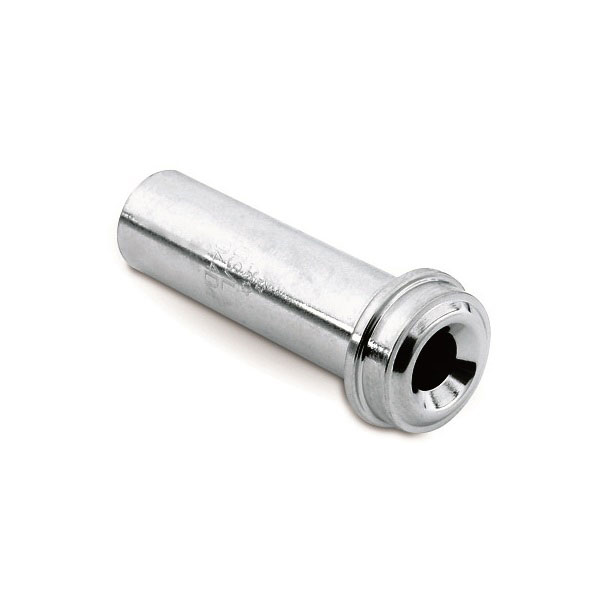

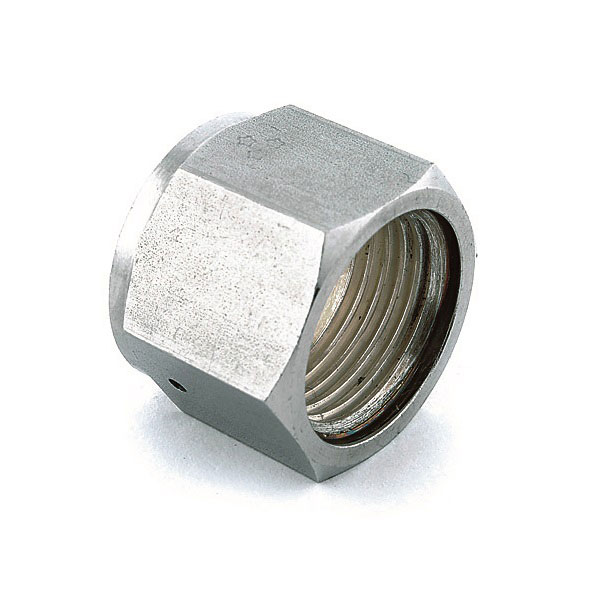

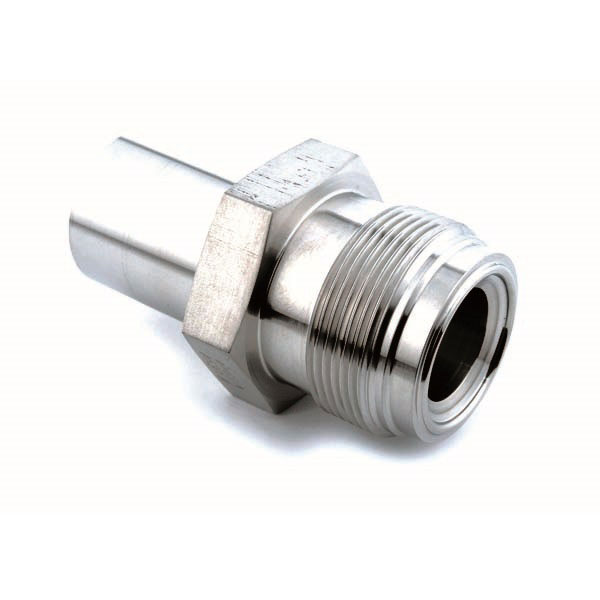

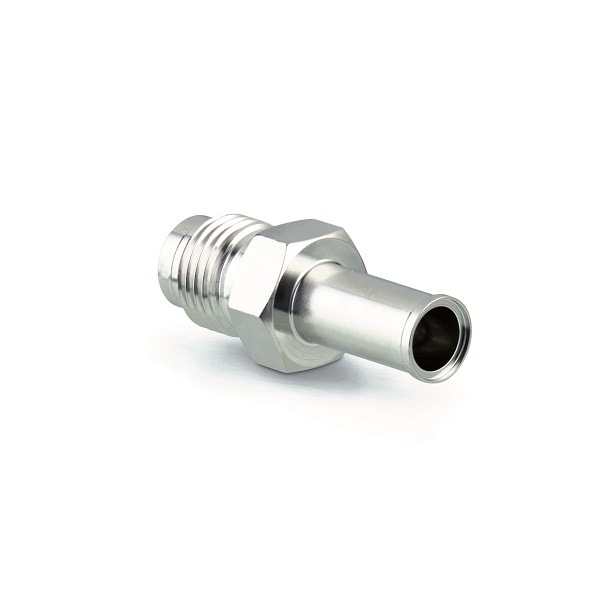

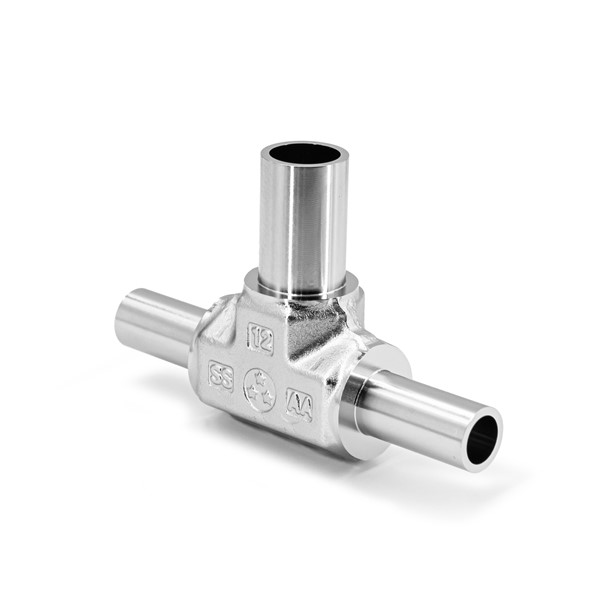

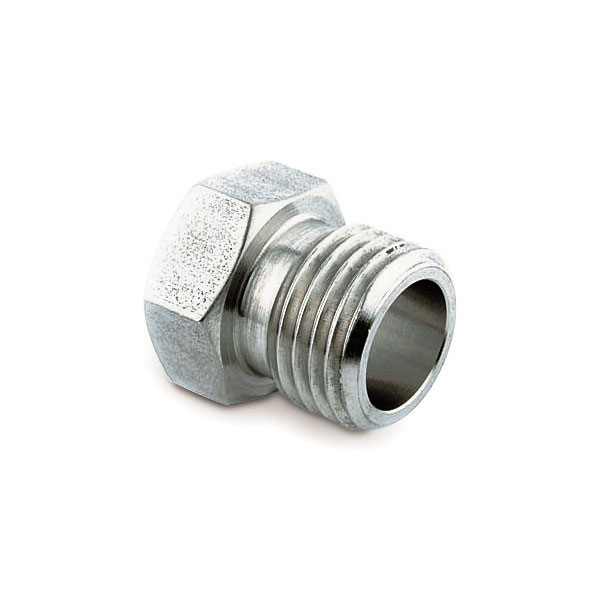

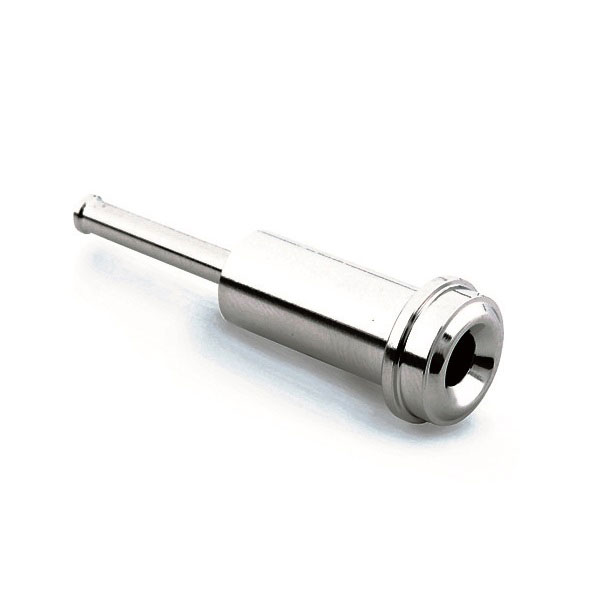

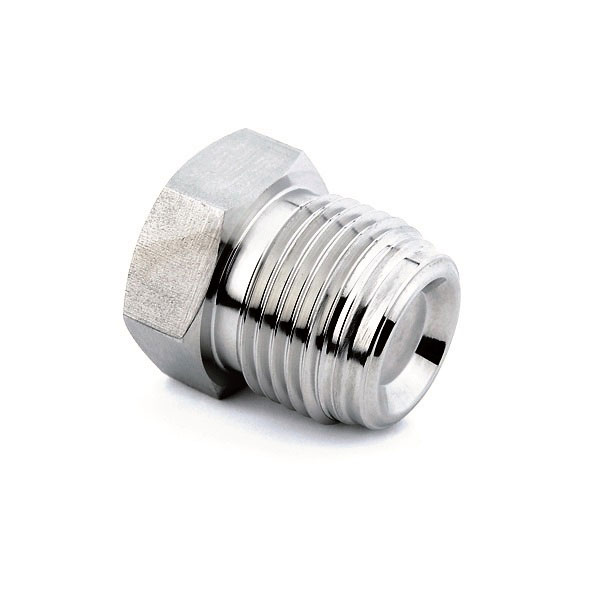

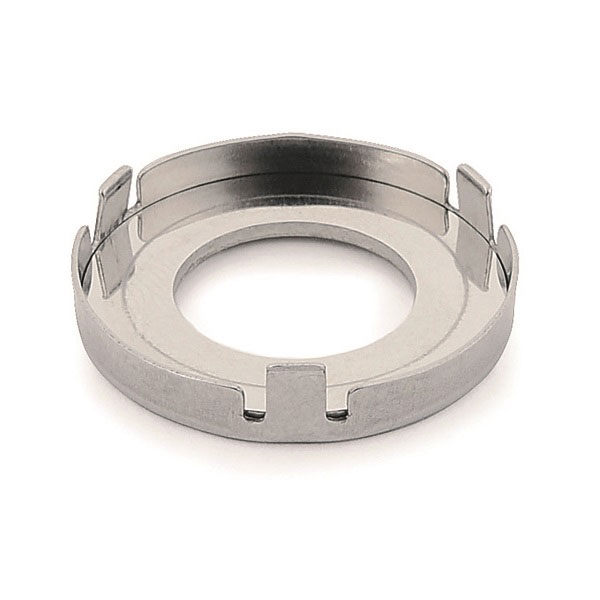

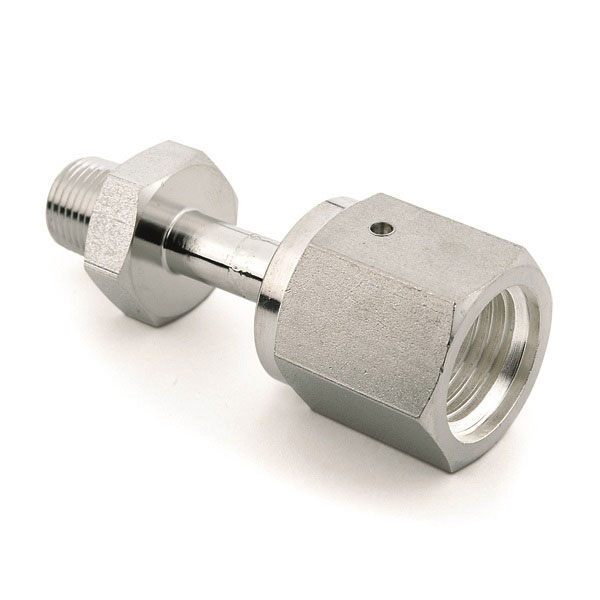

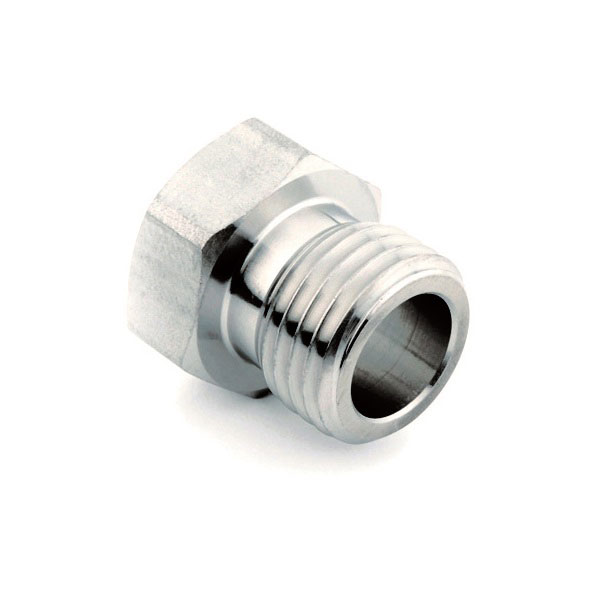

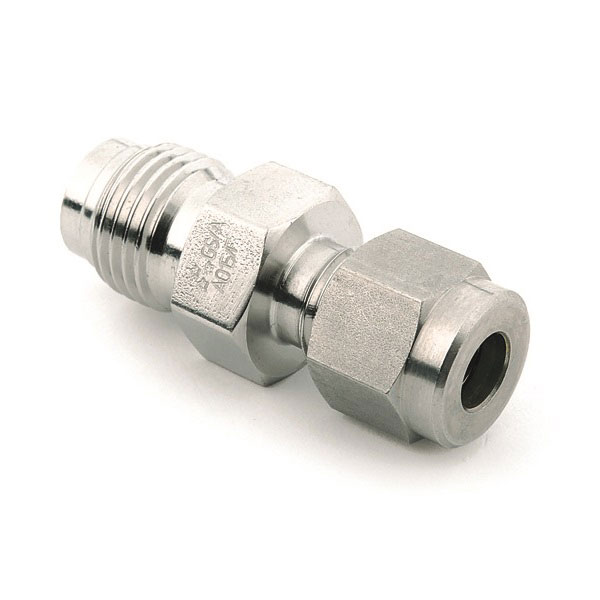

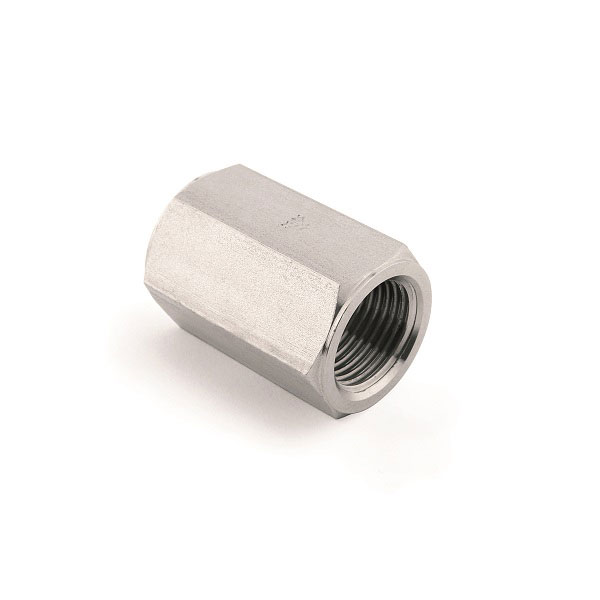

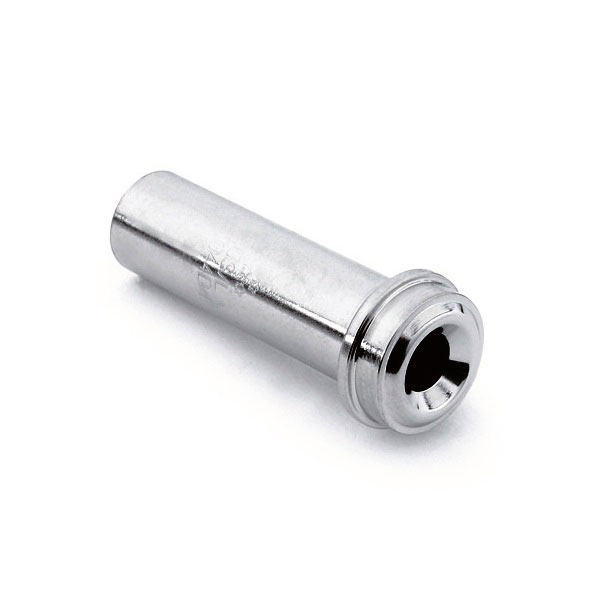

Rotarex ultra-high purity fittings use metal-to-metal face seal technology and electropolished surfaces compliant with SEMI F19 UHP Grade, designed to maintain gas circuit integrity across the full service life of the installation.

Qualification of UHP gas equipment for semiconductor applications involves verifying leak integrity, material compatibility, surface cleanliness, and traceability of every component before installation.

Leak integrity testing is performed using helium mass spectrometry, with acceptance criteria typically set at 10⁻¹⁰ mbar.l/s or below for most applications, with more stringent requirements for the most critical process gases.

Material certification documents confirm that all wetted materials are compatible with the specific process gas and meet the purity requirements of the application.

Surface cleanliness is verified against SEMI F19 UHP Grade standards, covering electropolished surface roughness and residual contamination levels.

Rotarex supplies complete material certification, traceability documentation, and test records for every UHP component, providing the documentation package required to support qualification processes in semiconductor fabs and other controlled manufacturing environments.

For specific qualification requirements, contact the Rotarex technical team.
