High Pressure manual line valve for UHP gases – D604
High Flow Line Valve - tied diaphragm double seal
Key advantages
- Combined soft and metal seat design with low permeation rate.
- Welded diaphragms provide a high leak tightness integrity
- Tied diaphragm design which minimizes gas wetted volume to allow easy purging.
- No moving components in the gas wetted area to not generate particles.
- Secondary sealing to prevent the gas coming in contact with actuator in the case of diaphragm failure.
- Threaded weep hole for leak test and pipe away connection (M4 thread), allows the connection to a leak detector.
- Front and back panel valve fixation
Specifications
| Connections | Welded connection according to standards |
| Working pressure | 200 bar |
| Nominal flow rate | CV = 0.3 |
| Temperature range | -40 to +65 °c |
| Body materials | Stainless steel 1.4435 (AISI 316L) |
| Seat orifice size | 4 Mm |
| Marking | π0029 (according to TPED), Manufacturing date, 3 stars, valve part number, Nominal pressure and flow direction |
| Leak rate | 1. 10-8 mbar.l/s |

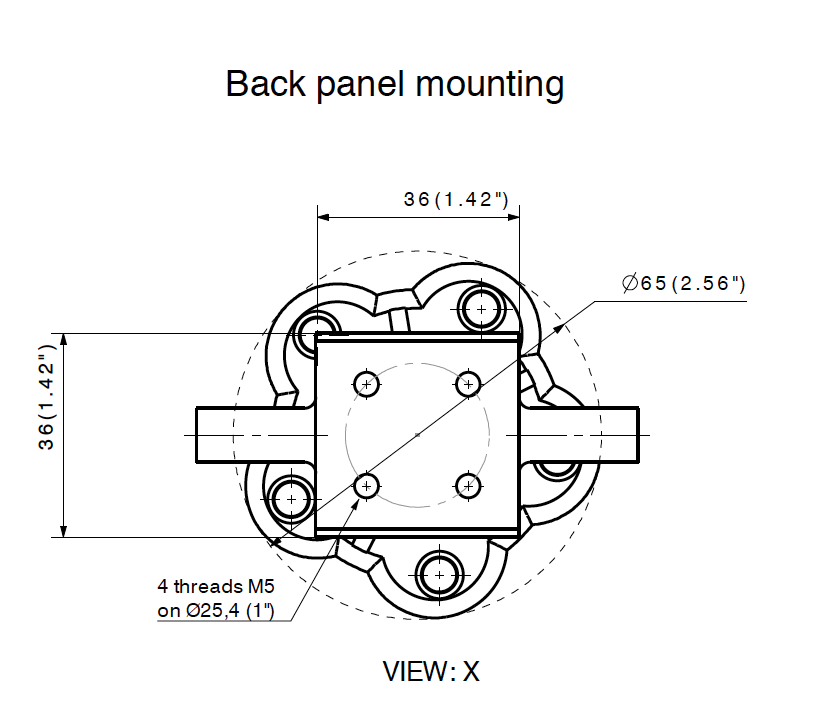

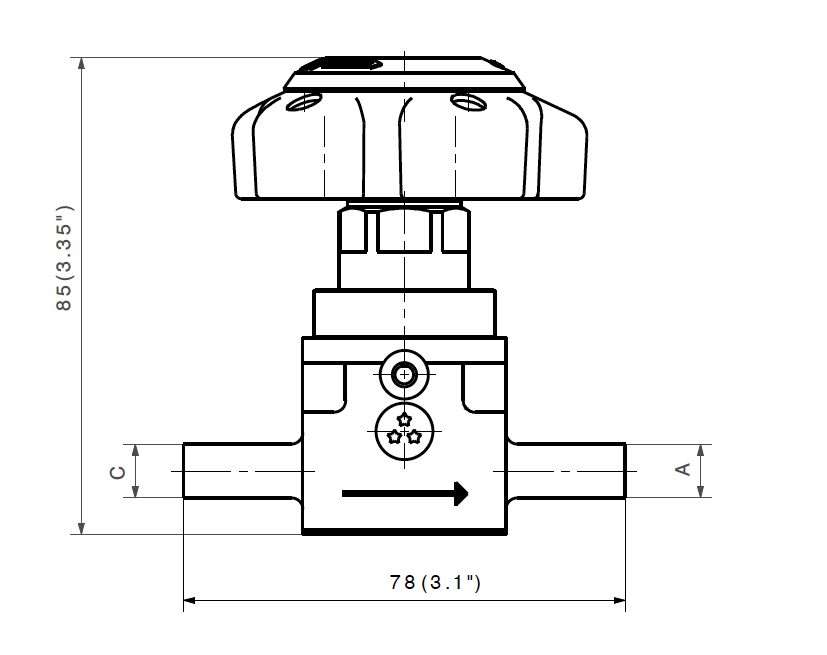

Dimensional drawings
