Bellows high pressure valve for HP, UHP, corrosive gases and fluids – HP2000

HP2000 is a stop globe valve with bellows sealing and high tightness. It is dedicated to high pressure at ambient temperatures and to following gases: vaccum, pure and ultra pure gases, combustible gases, oxidizing gases, toxic and corrosive gases, radioactive gases, noble gases. The valve is actuated either by a manual handwheel or a pneumatic actuator.

Key advantages

100% Helium leak test performed on all valves
Sustainable metallic bellows providing a high internal/ external tightness
Fluid specific seat material as standard options: Metal - Metal on request
Visual Open-Close indicator for both manual and pneumatic versions
Individual serial number for full traceability
Corrosion resistant internal option available: Hastelloy® bellows
Electropolished surface roughness
100% degreased for Oxygen use
Corrosion resistant external option available: Inox actuation for both manual and pneumatic versions

Contact an expert
Configure product

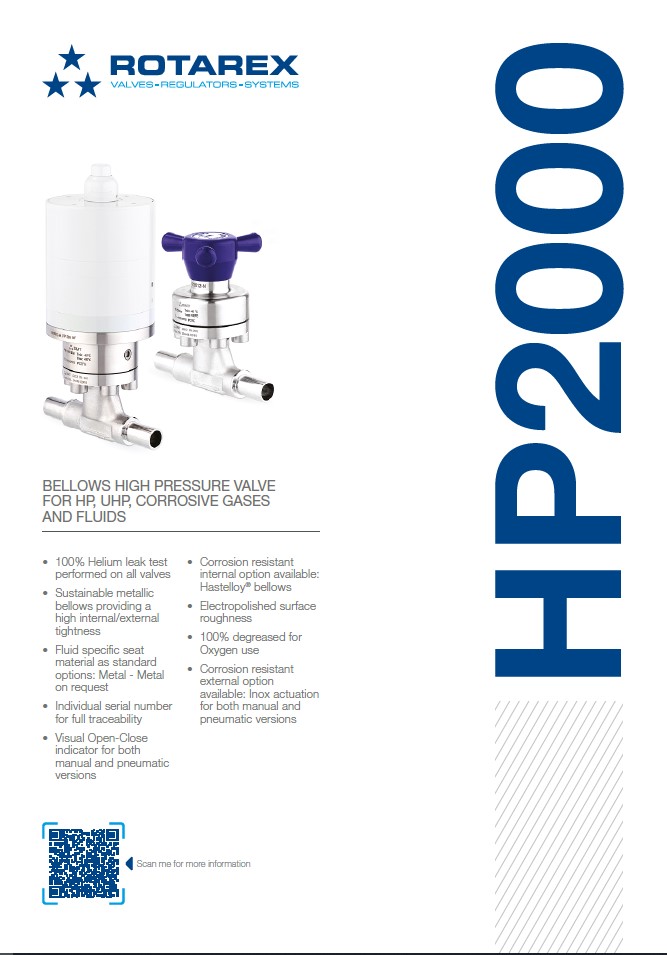

Download datasheet

CONSTRUCTION MATERIAL

	Parts	Material
Wetted parts	Body	SS 316L or Monel 400
	Seat	PCTFE or Vespel
	Bellows	SS 316L
	Head/body seal gasket	UNS N02201 (Nickel)
Non-wetted parts	Handwheel	Anodized aluminium
	Actuator Body	SS 316L and Painted anodized aluminium
	Others	SS 430F and C38500

SURFACE FINISH

-	EP4	EP2
Ra 0.8 μm	Ra 0.4 μm EP	Ra 0.25 μm EP

SEAT DIAMETER / FLOW CAPACITY

Valve	Seat diameter	Flow capacity (Cv)
HP2008-N	8mm	1,2
HP2012-N	12mm	2,15
HP2008-C	8mm	0,77
HP2012-C	12mm	1,91

All specifications subject to change without notice

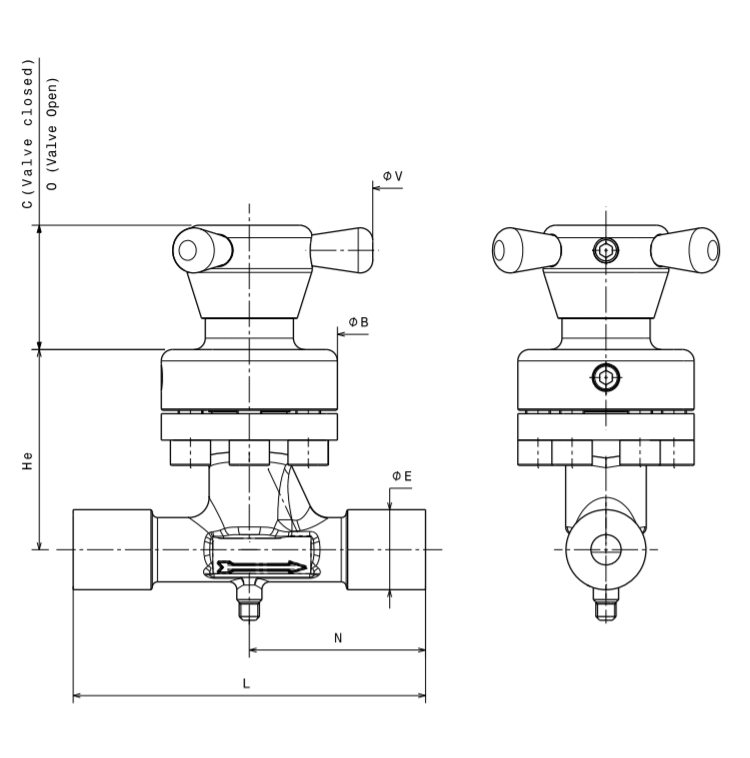

MANUAL DIMENSIONS

MAN.	HP2008 MI	HP2012 MI
C	47mm/(1.85")	49mm/(1.93")
O	50mm/(1.97")	53mm/(2.09")
ØB	48mm/(1.89")	70mm/(2.76")
ØE (up to)	22.5mm/(0.89")	31.5mm/(1.24")
ØV	100mm/(3.94")	100mm/(3.94")
He	84.5mm/(3.33")	79.5mm/(3.13")
L	90mm/(3.54")	140mm/(5.51")
N	45mm/(1.77")	70mm/(2.76")

PNEUMATIC DIMENSIONS

PNEU.	HP2008 NC/NO	HP2012 NC/NO
C	32mm/(1.26")	32mm/(1.26")
O	35mm/(1.38")	36mm/(1.42")
ØB	100mm/(3.94")	100mm/(3.94")
ØE (up to)	22.5mm/(0.89")	31.5mm/(1.24")
ØV	100mm/(3.94")	100mm/(3.94")
He	169mm/(6.65")	191mm/(7.52")
L	90mm/(3.54")	140mm/(5.51")
N	45mm/(1.77")	70mm/(2.76")

Dimensions are for reference only and are subject to change without notice

Specifications

Fluid media	Standard, high and ultra high purity and corossive gases or liquids
Max. working pressure	24 MPa (240 bar)*
Pneumatic actuator operating pressure	0.5 - 0.7 MPa (5 - 7 bar)
Temperature range	233.15 K to 393.15 K (-40°C to +120°C)*
Flow capacity (cv)	See table above
Nominal seat diameter	See table above
Certified max. helium across the seat leak rate (at max. pressure)	≤ 3.10-10 Pa.m3 .s^-1
Certified max. helium outboard leak rate (at max. pressure)	≤ 1.10-10 Pa.m3 .s^-1

Dimensional drawings

Product Configurator

	Size	Type	Actuation	Body material	Seat material	End-connection (1)	Surface finish	Options (2)
HP20	08	-C	MI	I	/K	BWO	-	-
	Seat Ø8mm 08 Seat Ø12mm 12	For oxidizing gases(3) -C For non oxidizing gases -N	Manual MI Pneumatic normally closed NC Pneumatic normally open NO	SS316L I Monel 400 M	PCTFE /K PI (Vespel®) /V	Butt welded orbital BWO Butt welded BW Metal face seal - Male MV Metal face seal - Female FV	Ra 0.8µm - Ra 0.4µm (electropolished) EP4 Ra 0.25µm (electropolished) EP2	No option - Bottom support FP Actuator vent for H2 H2 Solenoid valve EV Double limit switches MRE2 Proximity sensors (ATEX) DPI2 Purge port (1) PGP

I am interested

(1) Size to be defined by customer and ROTAREX
(2) Combinable
(3) Max. working pressure for O2 200 bar
