Single-stage tied-diaphragm pressure regulator for HP & UHP gases - RX4200
RX4200 are single stage tied-diaphragm pressure regulators for HP & UHP applications. The first of its kind threadless and springless pressure regulators to reach the highest level of purity.
Key advantages
  • Unique threadless design in all versions for a higher purity level
  • Sub-atmospheric option available (see RX4100 brochure)
  • Optimized supply pressure effect and excellent flow stability
  • Life duration according to CGA E4
  • Vacuum to 240 bar (3500 psi) inlet
  • Assembling, testing & packaging in cleanroom: Class ISO 4
  • Individual serial number for full traceability
  • Electropolished surface per SEMI F19 UHP Grade
  • 316L VAR® stainless steel double melt per SEMI F20 option available
  • Spring less design

CONSTRUCTION MATERIAL

  Parts Material
Wetted parts Body SS 316L, VAR
Seat PCTFE (PVDF, VESPEL® optional)
Diaphragm SS 316L (Hastelloy® optional)
Poppet SS 316L (Hastelloy® optional)


Non-wetted parts Bonnet SS 303
Handwheel PA 6.6
Others Stainless Steel and Brass

SURFACE FINISH

S V U
Ra 0.4 μm (15 μin) Ra 0.25 μm EP (10 μin) Ra 0.13 μm EP (5 μin)



Flow capacity (Cv) 0.15 0.25 0.5 0.9 1.1
Supply pressure effect I* 0.25 0.5 1.4 3 4
*1 bar / 100 bar inlet pressure change

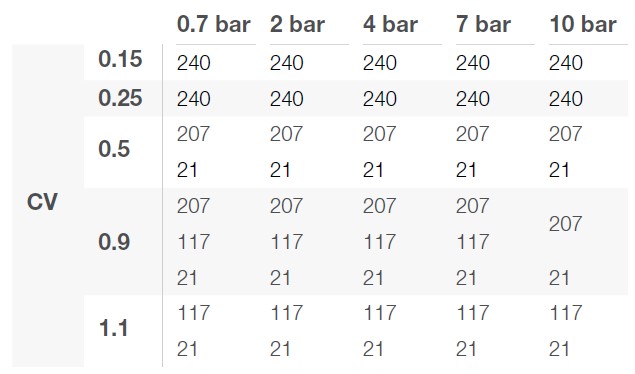

It's not possible to reach all outlet pressure with all inlet pressures, see compatibility table below:

COMPATIBLE OUTLET/INLET PRESSURE

Product image



Specifications
Poppet typeTied diaphragm
Temperature range-20°C to +65°C (-4°F to +149°F)
Burst pressure300% of operating pressure
Proof pressure150% of operating pressure
Certified max. helium outboard leak rate≤ 1 x 10-9 mbar.l/s
Certified max. helium across the seat leak rate (at max. pressure)≤ 1 x 10-8 mbar.l/s
Certified max. helium inboard leak rate (at max. pressure)≤ 1 x 10-9 mbar.l/s

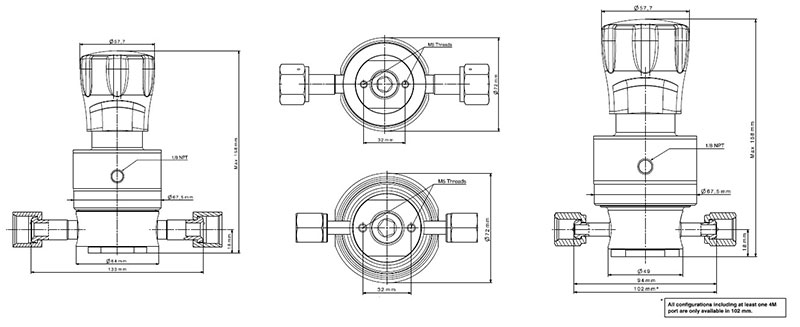

Dimensional drawings
Drawing
Product Configurator
Column 2
Regulator type
Outlet Pressure
Seat material
Cv value
Body material
Surface finish
Porting configuration
Connection
Actuator
Inlet pressure
Options
RX
42
02
K
015
S
S
2W1
4F
M
021
H

Tied Diaphragm
42
2 bar (29 psig)
02
4 bar (58 psig)
04
7 bar (102 psig)
07
10 bar (145 psig)
10
PCTFE
K
Vespel
V
PVDF*
P
PTFE*
T
0.15
015
0.25
025
0.5
050
0.9
090
1.1
110
Stainless Steel AISI 316L
S
Stainless Steel AISI 316 AOD Var
V
Ra 0.4 μm (15 μin)
S
Ra 0.25 μm EP (10 μin)
V
Ra 0.13 μm EP (5 μin)
U
2 ports
2W1
3 ports
3W4
4 ports
4W6
1/4” Female VCR
4F
1/4” Male VCR
4M
1/2” Female VCR
8F
1/2” Male VCR
8M
Handwheel
M
21 bar (305 psig)
021
117 bar (1,700 psig)
117
207 bar (3,000 psig)
207
240 bar (3,500 psig)
240
Hastelloy Trim
H
Gauge (bar/PSI)
PG0
Gauge (MPa)
PG1
* PTFE and PVDF seat are only available with 21 bar inlet pressure
Downloadable catalogs, brochures
  • Download
    RX3000 UHP Pressure Regulator
    Last update: Feb 23, 2024
    Available in: en/JA
  • Download
    RX3100 UHP Pressure Regulator
    Last update: Feb 23, 2024
    Available in: en
  • Download
    RX3600 UHP Pressure Regulator
    Last update: Feb 23, 2024
    Available in: en
  • Download
    RX3700 UHP Pressure Regulator
    Last update: Feb 23, 2024
    Available in: en
  • Download
    RX3900 UHP Pressure Regulator
    Last update: Feb 23, 2024
    Available in: en
  • Download
    RX4000 UHP Pressure Regulator
    Last update: Dec 04, 2023
    Available in: en/JA
  • Download
    RX4100 UHP Pressure Regulator
    Last update: Oct 11, 2023
    Available in: en
  • Download
    Complete UHP Solution
    Last update: Dec 04, 2023
    Available in: en/JA
  • Download
    RX1000 Compact UHP Pressure Regulator
    Last update: Feb 23, 2024
    Available in: en/JA
  • Download

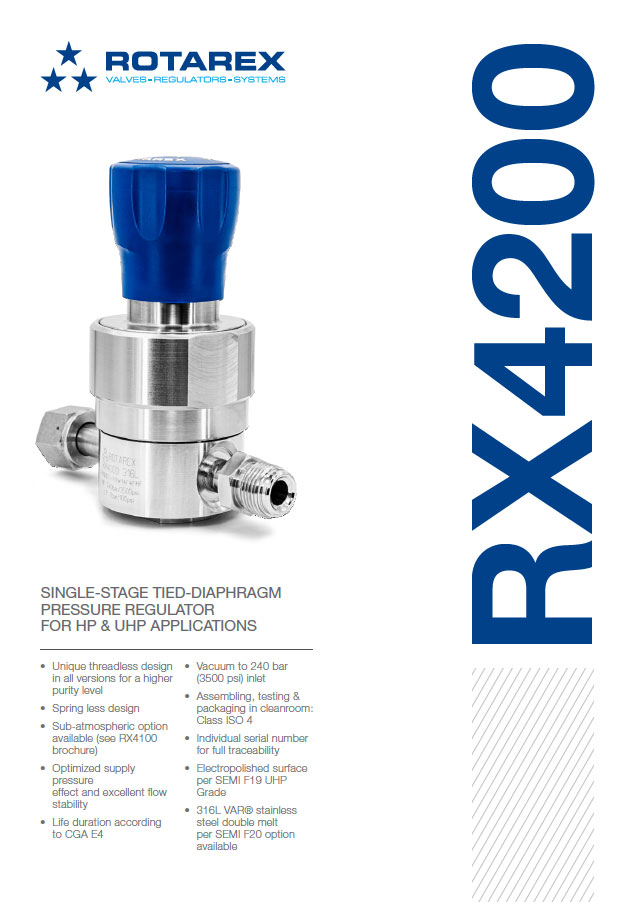

    RX4200 UHP Pressure Regulator
