Diaphragm high and low pressure line valve for HP & UHP gases - RX04
Specialty gas systems > Ultra high purity gas equipment > Springless diaphragm line valves
RX04 is a diaphragm valve for HP & UHP applications. Its springless design keeps the highest level of purity of the gas. The RX04 valve exists in low, medium or high pressure versions. Different actuation are available for purchase : multi-turn or quarter-turn handwheel, and pneumatic actuator. The multi-turn version is delivered with an open-close indicator handwheel. It can be mounted on a panel.
Key advantages
  • 100% Helium Leak Test performed
  • Assembling, testing & Packaging in cleanroom: Class ISO 4
  • Reverse seat design for high life cycle
  • Individual serial number for full traceability
  • Electropolished surface roughness per SEMI F19 UHP Grade
  • Fluid specific seat material as standard options
  • Low internal volume
  • Constant bleed option available
  • 316L VAR® stainless steel double melt per SEMI F20 option available
  • Additional Multi-port options
  • 270° multiturn handwheel with open/close indicator

Also available with LOTO device

CONSTRUCTION MATERIAL

  Parts Material
Wetted parts Body SS 316L,VAR
Seat PCTFE, PVDF, VESPEL®
Diaphragm Phynox®
Non-wetted parts Backup diaphragm Phynox®
Handwheel Aluminium
Actuator Body SS 316L or Aluminium
Others Stainless Steel and Alloys

SURFACE FINISH

S V
Ra 0.4 μm (15 μin) Ra 0.25 μm EP (10 μin)

TEMPERATURE RANGE

Seat (Actuation type) Temperature Range
PCTFE / PVDF (manual & pneumatic*) -40°C to +65°C (-40°F to +149°F)
Vespel® (manual & pneumatic*) -40°C to +150°C (-40°F to +302°F)

VALVE VERSION / MAX. WORKING PRESSURE

Valve Max. working pressure
RX04 (LM) Multiturn handwheel(1)(2) 20 bar
RX04 (HM) Multiturn handwheel(1)(2) 240 bar
RX04 (LQ) Quarter turn handwheel(1) 20 bar
RX04 (HQ) Quarter turn handwheel(1) 240 bar
RX04 (BP) Pneumatically actuated 10 bar
RX04 (LP) Pneumatically actuated 20 bar
RX04 (HP) Pneumatically actuated 240 bar

(1) FT (Panel Mounting) option available

(2) MSF LOTO option available

MANUAL ACTUATION

Parts for all valve grades
Upper spindle Brass
Handle Aluminium
All others Stainless Stee

PNEUMATIC ACTUATION

Parts
Actuator Body Aluminium / Stainless Steel
Piston Brass / Aluminium / Stainless Steel
O-ring NBR
All others Stainless Steel

All specifications subject to change without notice.

Specifications
Max. working pressureSee table above
Pneumatic actuator opening pressure5 to 7 bar
Temperature rangeSee table above
Flow capacity (cv)0,2
Nominal seat diameter4 Mm
Wetted volume< 1.2 cm3
Burst pressure> 700 bar
Certified max. helium outboard leak rate≤ 1 x 10-9 mbar.l/s
Certified max. helium across the seat leak rate (at max. pressure)≤ 1 x 10-9 mbar.l/s
Certified max. helium inboard leak rate (at max. pressure)≤ 1 x 10-9 mbar.l/s

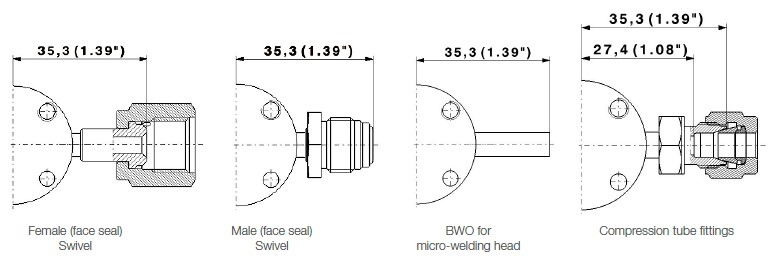

Dimensional drawings
DrawingDrawing
Product Configurator

Surface finish
Actuation
Porting configuration (image 3)
Body material
Seat material
End connection
Options
RX04
S
LM
2V1
-
K
V 1/4 F
FT

Ra 0.4 μm (15 μin)
Ra 0.25 μm EP (10 μin)
Multi-Turn Handwhel (20bar)
rn Handwheel (240bar)
Multi-TuPneumatically actuated (10bar)
Pneumatically actuated (20bar)
Pneumatically actuated (240bar)
Quarter-Turn Handwheel (20bar)
Quarter-Turn Handwheel (240 bar)
2 ports configuration 1
2 ports configuration 2
3 ports configuration 4
3 ports configuration 5
3 ports configuration 6
3 ports configuration 8
3 ports configuration 9
4 ports configuration 10
4 ports configuration 11
SS 316L
VAR(3)
Monel(3)
Hastelloy®(3)
PCTFE (Kel-F®)
PI (Vespel®)
PVDF
Metal face seal 1/4” - Female
Metal face seal 1/4” - Male
BWO 1/4”
BWO 6 mm
Compression tube fittings
Compression tube fittings
Panel Mounting
Electric limit switch(4)
LOTO
Constant bleed
(1) Add NO for normally open or NC for normally closed
(2) See dimensional drawings nr. 3
(3) On demand
(4) On HP and LP actuators only

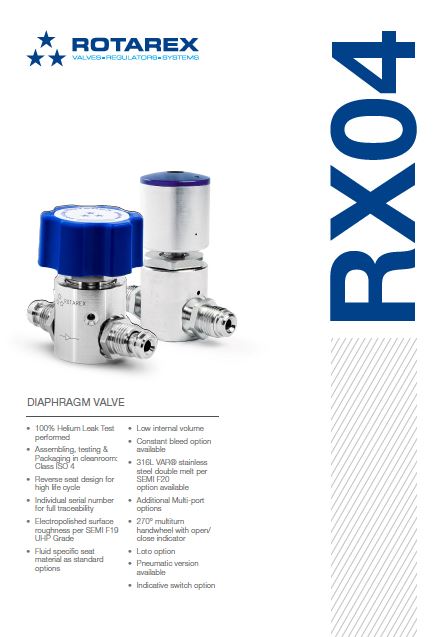

Downloadable catalogs, brochures
  • Download

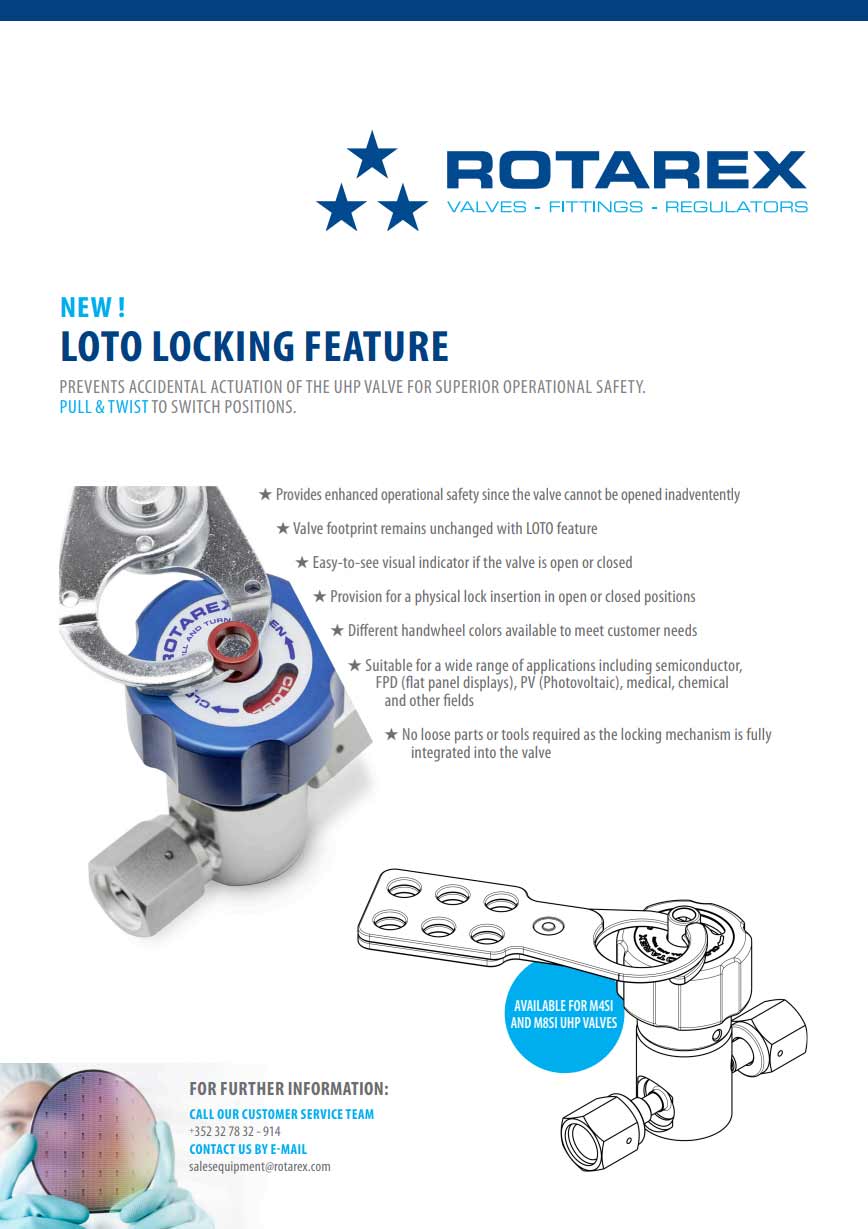

    LOTO Locking Mechanism for UHP Line Valves
