Diaphragm high and low pressure line valve for HP & UHP gases - RX08

Specialty gas systems > Ultra high purity gas equipment > Springless diaphragm line valves

Open-close indicator handwheel (closed position) - RX08

Open-close indicator handwheel (open position) - RX08

RX08 is a diaphragm valve for HP & UHP applications. Its springless design keeps the highest level of purity of the gas. The RX08 valve exists in low, medium or high pressure versions. Different actuation are available for purchase : multi-turn or quarter-turn handwheel, and pneumatic actuator. The multi-turn version is delivered with an open-close indicator handwheel. It can be mounted on a panel.

Key advantages

100% Helium Leak Test performed
Assembling, testing & Packaging in cleanroom: Class ISO 4
Reverse seat design for high life cycle
Individual serial number for full traceability
Electropolished surface roughness per SEMI F19 UHP Grade
Fluid specific seat material as standard options
Low internal volume
316L VAR® stainless steel double melt per SEMI F20 option available
Additional Multi-port options
270° multiturn handwheel with open/close indicator

Contact an expert
Configure product
Download datasheet

CONSTRUCTION MATERIAL

	Parts	Material
Wetted parts	Body	SS 316L,VAR
	Seat	PCTFE, PVDF, VESPEL®
	Diaphragm	Phynox®
Non-wetted parts	Backup diaphragm	Phynox®
	Handwheel	Aluminium (QT) or Plastic (MT)
	Actuator Body	SS 316L or Aluminium
	Others	Stainless Steel and Alloys

SURFACE FINISH

S	V
Ra 0.4 μm (15 μin)	Ra 0.25 μm EP (10 μin)

TEMPERATURE RANGE

Seat (Actuation type)	Temperature Range
PCTFE / PVDF (manual & pneumatic(1))	-40°C to +65°C (-40°F to +149°F)
Vespel® (manual & pneumatic(1))	-40°C to +150°C (-40°F to +302°F)

(1) -20°C pneumatic versions

VALVE VERSION / MAX. WORKING PRESSURE

Valve	Max. working pressure
RX08 (LM) Multiturn handwheel(2)(3)	20 bar
RX08 (HM) Multiturn handwheel(2)(3)	240 bar
RX08 (LQ) Quarter turn handwheel(2)	20 bar
RX08 (HQ) Quarter turn handwheel(2)	240 bar
RX08 (BP) Pneumatically actuated(4)	10 bar
RX08 (HP) Pneumatically actuated(4)	240 bar

(2) FT (Panel Mounting) option available

(3) MSF LOTO option available

(4) -20°C pneumatic versions

MANUAL ACTUATION

Parts for all valve grades
Upper spindle	Brass
Handle	Aluminium (QT) or Plastic (MT)
All others	Stainless Steel

PNEUMATIC ACTUATION

Parts
Actuator Body	Aluminium / Stainless Steel
Piston	Brass / Aluminium / Stainless Steel
O-ring	NBR
All others	Stainless Steel

All specifications subject to change without notice.

Specifications

Max. working pressure	See table above
Pneumatic actuator opening pressure	5 to 7 bar
Temperature range	See table above
Flow capacity (cv)	0.5
Nominal seat diameter	8 Mm
Wetted volume	< 1.6 cm3
Burst pressure	> 700 bar
Certified max. helium outboard leak rate	≤ 1 x 10-9 M bar l/s
Certified max. helium across the seat leak rate (at max. pressure)	≤ 1 x 10-9 mbar.l/s
Certified max. helium inboard leak rate (at max. pressure)	≤ 1 x 10-9 mbar.l/s

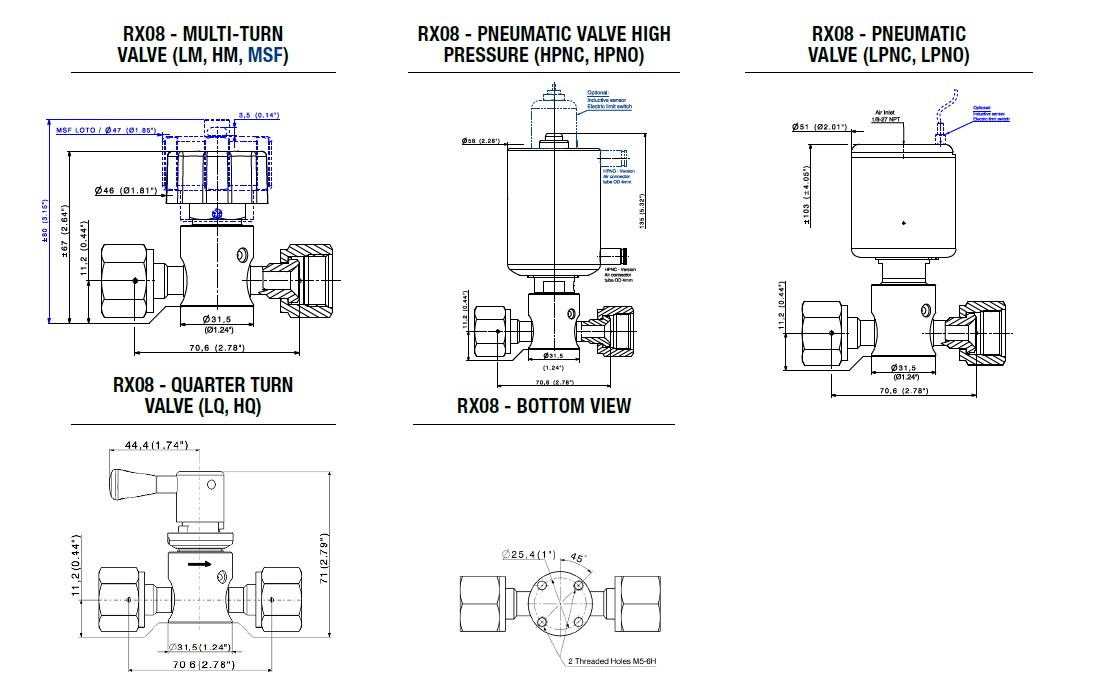

Dimensional drawings

Product Configurator

	Surface finish	Actuation	Porting configuration	Body material	Seat material	End connection	Options
RX08	S	LM	2W1	I	K	V 3/8 F	FT
	Ra 0.4 μm (15 μin) S Ra 0.25 μm EP (10 μin) V	Multi-Turn Handwheel (20bar) LM Multi-Turn Handwheel (240bar) HM Pneumatically actuated (10bar) BP(1) Quarter-Turn Handwheel (20bar) LQ Quarter-Turn Handwheel (240bar) HQ Pneumatically actuated (240bar) HP(1)	2W1 2W1 2W2 2W2 3W4 3W4 3W5 3W5 3W6 3W6 3W8 3W8 3W9 3W9 4W10 4W10 4W11 4W11	SS 316L I Hastelloy®(2) H VAR(2) A	PCTFE (Kel-F®) K PI (Vespel®) V PVDF P	Metal face seal 3/8” - Female V 3/8 F Metal face seal 3/8” - Male non-Swiel V 3/8 M BWO 1/2” B 1/2 BWO 3/8" mm B 3/8 BWO 10 mm B10 BWO 12 mm B12 Compression tube fittings RDB3/8 Compression tube fittings RDB1/2 Compression tube fittings RDB 10 Compression tube fittings RDB 12	Panel Mounting FT Electric limit switch(3) CI LOTO MSF Constant bleed FPT

I am interested

(1) Add NO for normally open or NC for normally closed
(2) On demand
(3) On HP and LP actuators only

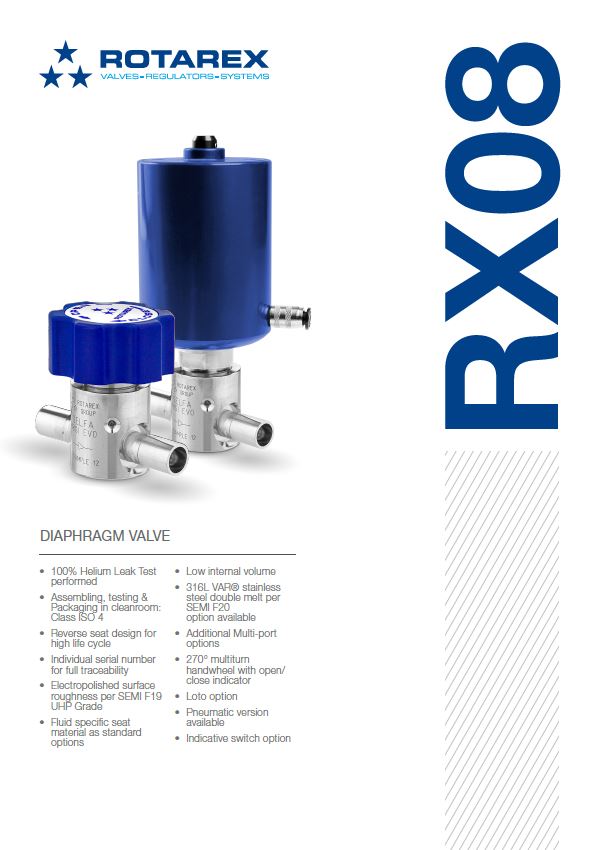

Downloadable catalogs, brochures
