Standard RPV valves - C521/C526

The C521/526 is an high Pressure Cylinder Brass Valve with Inline Residual Pressure for Inert, mixtures and flammable gases. It is suitable up to 200 bar inlet pressure. Its residual pressure device avoids any ingress of humidity and ensures a longer life time of the cylinder.
Key advantages
  • High pressure brass cylinder valve for Inert, Inert mixtures and flammable gas service
  • Permanent gas tight seal
  • Specific filling adaptor required - Residual pressure valve inline execution
  • π marking according TPED directive
  • Tested according EN ISO 10297
Specifications
Working pressure pmax.200 bar
Gas typeInert & flammable
Seat orifice size4 Mm
Cv0,3
Temperature range-20 to +65 °c
Helium leak rate at pmax.Internal 10-3 mbarl/sec
External 10-3 mbarl/sec
MaterialHandwheel: aluminium
Seat: PA 6.6
O-rings: EPDM
Body: brass
SafetyC041: No
C046: Yes
In- and outlet connectionsIn accordance with all country standards

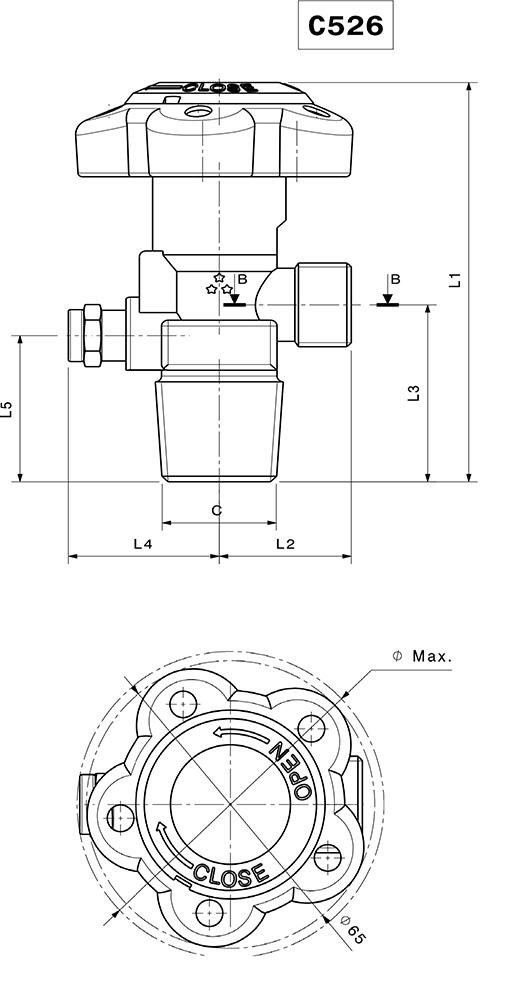

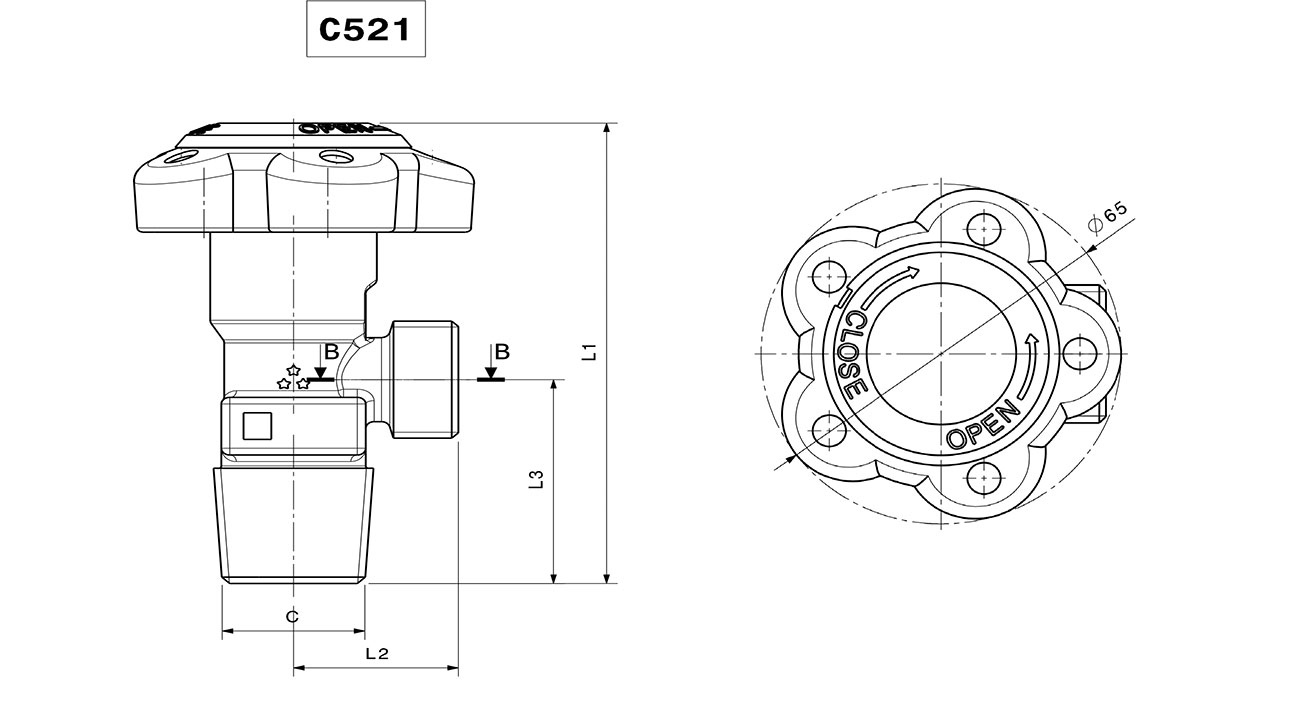

Dimensional drawings
DrawingDrawing
