Small cone RPV valves - C979/C980
Small cone brass cylinder valve for Inert, Inert mixtures and flammable gas service and for small sized cylinder.
Key advantages
  • Compact high pressure brass cylinder valve for Inert, Inert mixtures and flammable gas service and for small sized cylinders
  • Specific filling adaptor required
  • Residual pressure valve inline execution
  • Permanent gas tight seal
  • π marking according TPED directive
  • Tested according EN ISO 10297 and EN ISO15996 standards
  • Compatible with medical oxygen
Specifications
Working pressure pmax.200 bar
Gas typeInert & flammable
Seat orifice size2,5 Mm
Helium leak rate at pmax.internal 10-3 mbarl/sec external 10-3 mbarl/sec
materialhand: wheel aluminium, seat: PA 6.6, O-rings: EPDM, body: brass
In- and outlet connectionsin accordance with all country standard
Cv0,2
SafetyC979 : No C980 : Yes
Temperature range-20 to +65 °c

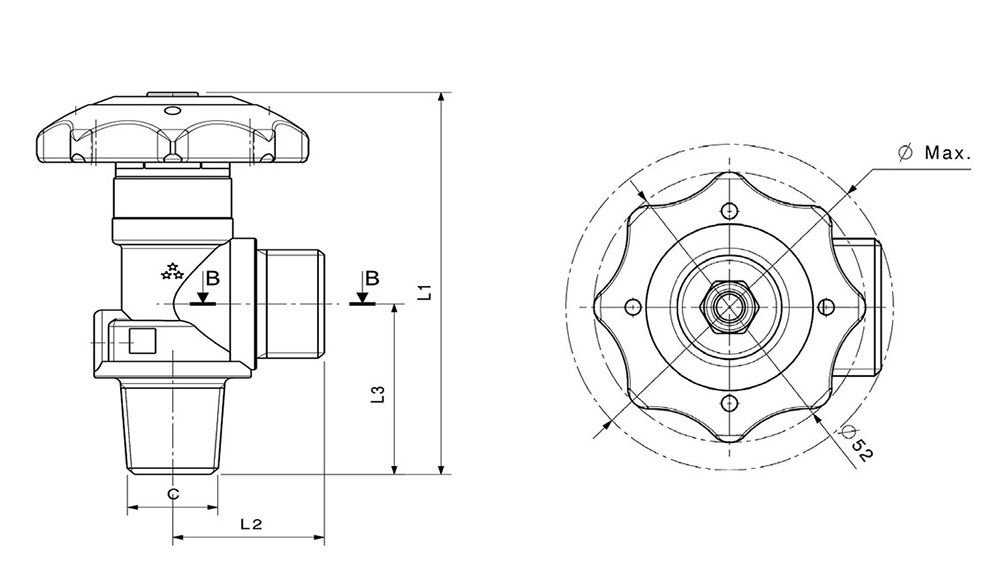

Dimensional drawings
Drawing
Product Configurator

Safety
Gas type
Safety set up
Body material
Actuation
Inlet
Outlet
Pin length
Reference point
Dip tube
Gas
C9
7
9
0
L
AS
17E
6
7
F
0
IM

Without
With
Inert & Mix
H2
Without
Burst disc 190 bar
Burst disc 250 bar
Other
Brass
Chrome plated brass
Small Aluminium
Painted handwheel
Handwheel with logo cap
17E EN ISO 11116
M 18 x 1,5 - 18P EN ISO 15245-1
Option: Filter (Tamis)
Other
DIN 477- 1 Nr.6
DIN 477- 1 Nr.9
Other
7
7,5
Other
Front Sealing
ø 10
ø 14
Other
Without
M8x 0,75
M10 x0,75
Other
Inert & Mix (IM)
Flammable (IF) & Mix
H2
Gas list P.91
