STANDARD RPV VALVES - C508
High Pressure Cylinder Brass Valve with Inline Residual Pressure for Carbon Dioxide and mixture.
Key advantages
  • High pressure brass cylinder valve for CO2 and CO2 mixtures service
  • Permanent gas tight seal
  • Specific filling adaptor required
  • Residual pressure valve inline execution
  • π marking according TPED directive
  • Tested according EN ISO 10297
Specifications
Working pressure pmax.200 bar
Gas typeCO2
Seat orifice size8 Mm
Helium leak rate at pmax.internal 10-3 mbarl/sec external 10-3 mbarl/sec
materialhand: wheel aluminium, seat: PA 6.6, O-rings: EPDM, body: brass
In- and outlet connectionsin accordance with all country standards
Cv0,5
SafetyYes
Temperature range-4°C / -25°C up to +65°C

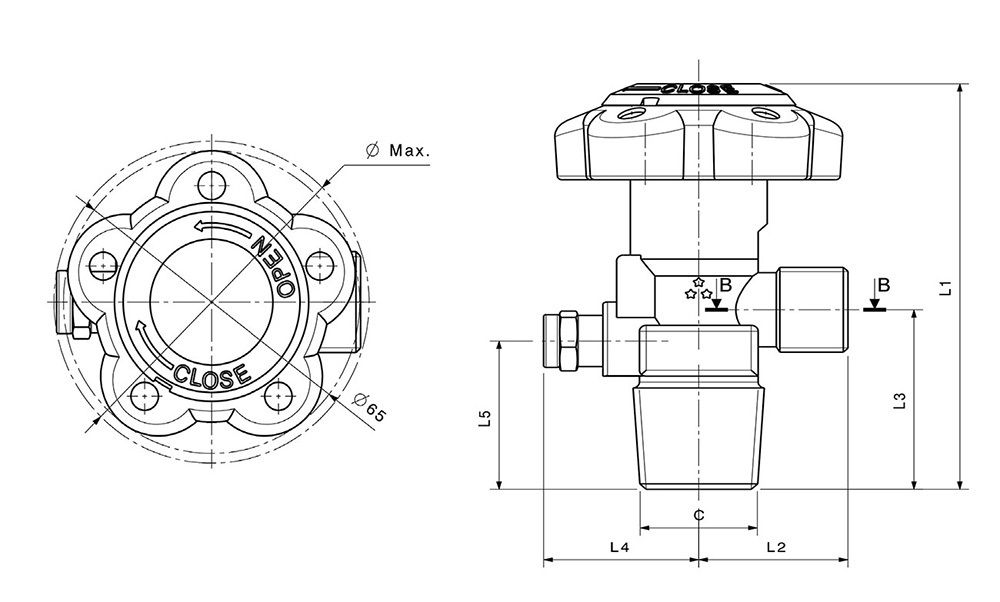

Dimensional drawings
Drawing
Product Configurator

Gas type
Safety
Safety set up
Body material
Actuation
Inlet
Outlet
Pin length
Reference point
Dip tube
Gas
C5
0
8
0
L
A
25E
6
7
F
0
CO2

CO2
With (for CO2)
Without
Burst disc 190 bar
Burst disc 225 bar
Burst disc 250 bar
Burst disc 270 bar
Other
Brass
Chrome plated brass
Handwheel - standard
Painted handwheel
Handwheel with logo cap
Key operated Square 7.8
Key operated 5.9 x dia 9.3
Single Central Alu Handwheel
Small Plastic Black
Small Plastic Red/Blue
25E EN ISO 11363
17E EN ISO 11116
3/4”-14 NGT CGA V-1
Option: Filter (Tamis)
Other
DIN 477- 1 Nr.6
BS 341-3 Nr.8
CGA 320
Other
7
7,5
10,5
Other
Front Sealing
ø 10
ø 14
Other
Without
M10x 0,75
M12x1
1/4” - 18NPT
Other
CO2
Gas list P.XX
