Diaphragm low pressure regulator with balanced valve for very high flow - DC50
DC50 second stage line pressure regulator is designed for all applications requiring a low pressure with very high flow. It is ideally suited as line regulator in combination either with MOD supply board or CEN switch over board.
Key advantages
  • Outstanding pressure consistency with Balanced Valve Technology.
  • Increased useful lifetime and lower ownership cost
  • Must be installed with a flash back arrestor for use with acetylene
  • Acetylene version available (AD)

FLOW CURVES

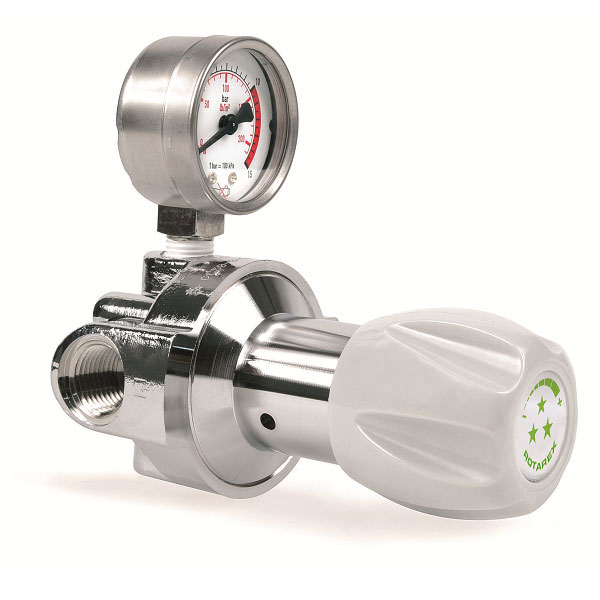

Product image

Product image

Product image

Product image

Specifications
Female portsG 1/2 or 1/2 NPT (inlet/outlet)
Seat sealEPDM
O-ringEPDM - Standard / FPM
DiaphragmEPDM
Weight+/- 1,4 kg
Leak rate10-3 M bar l/s
Temperature range-20 to +60 °c
GaugesLow pressure (G1/4 or 1/4 NPT)
Inlet pressure50 bar, 1,5 bar (AD)
Outlet pressure8/15/40 - 0,8 (AD)
Nominal flow150/300/300 nm3-h--28n2-29, 10Nm-3/h (AD)
Oxygen useOK

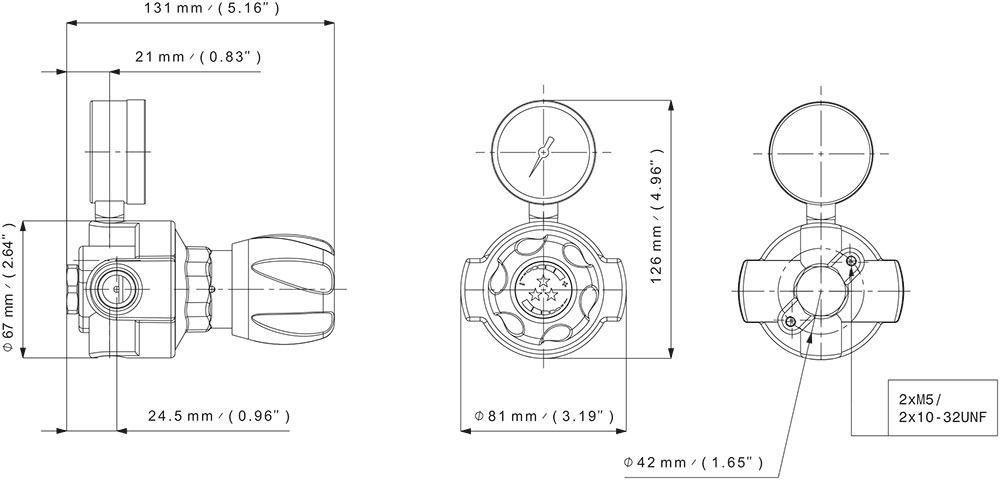

Dimensional drawings
Drawing
Product Configurator

Outlet pressure
End connections
O-ring material
Body material
Gauges
DC50
8
G
EPDM
L
1

Downloadable catalogs, brochures
  • Download
    Pressure Regulators Catalog
    Last update: May 25, 2021
    Available in: en/fr/de
