Diaphragm low pressure regulator for very low outlet pressure - S20-0.1

S20-0.1 second stage line pressure regulator is designed for laboratory applications requiring a low outlet pressure less than 100 mbar (1.45 psi).
Key advantages
  • Very low outlet pressure
  • Rear threads for wall mounting

FLOW CURVES

Product image

Specifications
Female portsG3/8 or 1/4 NPT (inlet/outlet)
Seat sealEPDM
O-ringEPDM
DiaphragmAISI 304
Weight+/- 0,6 kg
Leak rate10-8 M bar l/s
Temperature range-20 to +60 °c
GaugesLow pressure (M10 x 1 or 1/4 NPT)
Inlet pressure50 bar
725 psi
Outlet Pressure0,01 - 0,1 bar
0,14 - 1,45 psi
Oxygen useInlet pressure ≤ 30 bar max. for brass and stainless steel
Nominal flow0,5 Nm3/h (N2)

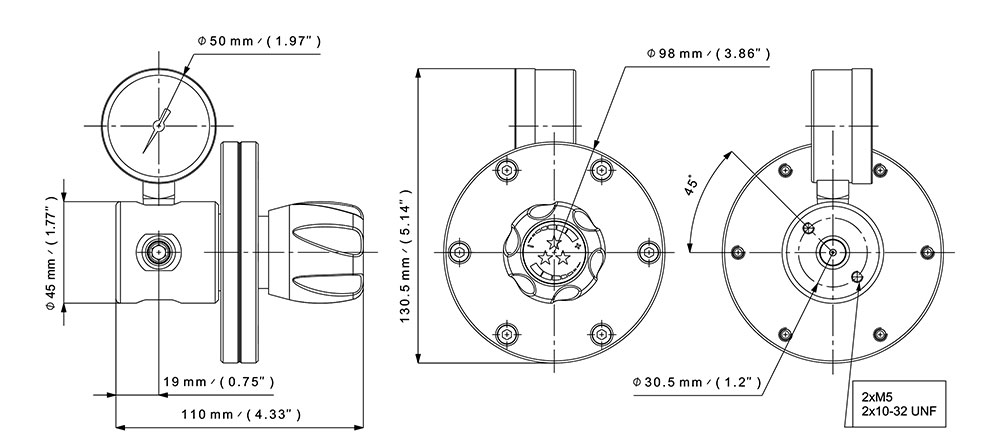

Dimensional drawings
Drawing
Product Configurator

Body material

End connections
O-ring material
Gauges
Ports configuration
S
L
20-0.1
G
EPDM
1
A

Chrome plated brass
L
Stainless steel
I

G3/8 - G3/8
G
1/4 NPT - 1/4 NPT
N
EPDM
EPDM
With
1
Standard configuration
A
Reverse inlet/outlet
R
