Diaphragm low pressure regulator with balanced valve - S10
S10 second stage line pressure regulator is designed for laboratory applications, such as gas delivery to inductive plasma spectometer, protection and support gas for chromatograph, environmental emission monitoring, industrial hygiene or safety monitors and trace impurity analyzers. It is ideally suited as a NH3 line regulator (EPDM stainless steel version).
Key advantages
- Outstanding pressure consistency with Balanced Valve Technology.
- Can be used for many applications that need a high flow
- Wall and panel mounting possible with its compact design, the rear threads and the fixing ring
- Longer regulator lifetime and lower total ownership cost
FLOW CURVES
Specifications
| Female ports | G3/8 or 1/4 NPT (inlet/outlet) |
| Seat seal | FPM / EPDM |
| O-ring | FPM / EPDM |
| Diaphragm | AISI 304 (brass version) Hastelloy® (SS version) |
| Weight | +/- 0,6 kg |
| Leak rate | 10-8 M bar l/s |
| Temperature range | -20 to +60 °c |
| Gauges | Low pressure (M10 x 1 or 1/4 NPT) |
| Inlet pressure | 25 bar |
| Outlet Pressure | 3/8 bar |
| Nominal flow | 4,5/12 Nm3 /h (N2 ) |
| Oxygen use | OK for brass and stainless steel |

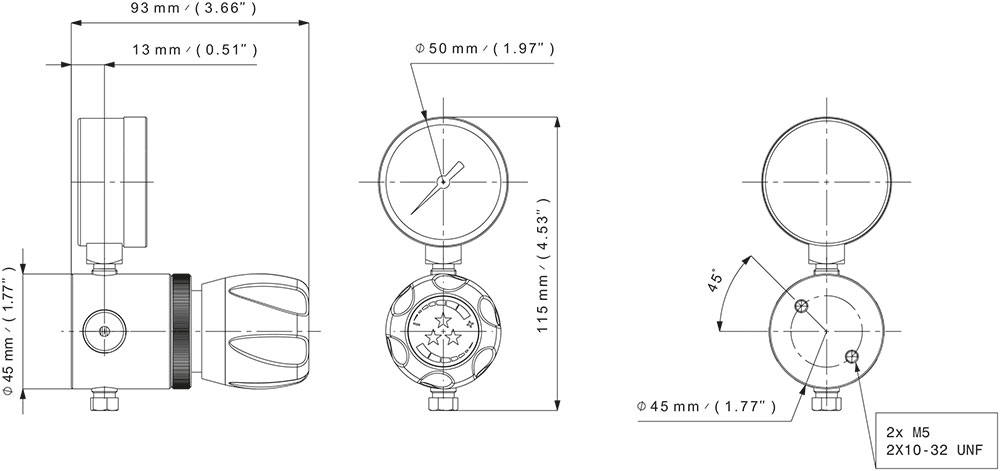

Dimensional drawings
