Body material | Inlet pressure | Port configuration | Outlet Pressure | Inlet connection | Outlet connection | Gauges | ||
SC | L | 290 | F | R | 16 | N | N | 1 |
Diaphragm Single Stage High Pressure Regulator with Cartridge for Food Industry – SC290
SC290 F is a single stage high pressure cartridge regulator for food processing. The regulator is compliant with EC 1935/2004 food regulation.
Key advantages
- This single stage regulator is based on the Cartridge seat Technology
- Accurate pressure control for reliable service
- Could be equipped with a shut off valve
- Relief valve seat seals material: Brass version (EPDM), Stainless Steel (FPM)
- Dedicated food-grade version with full material compatibility according to EC1935/2004

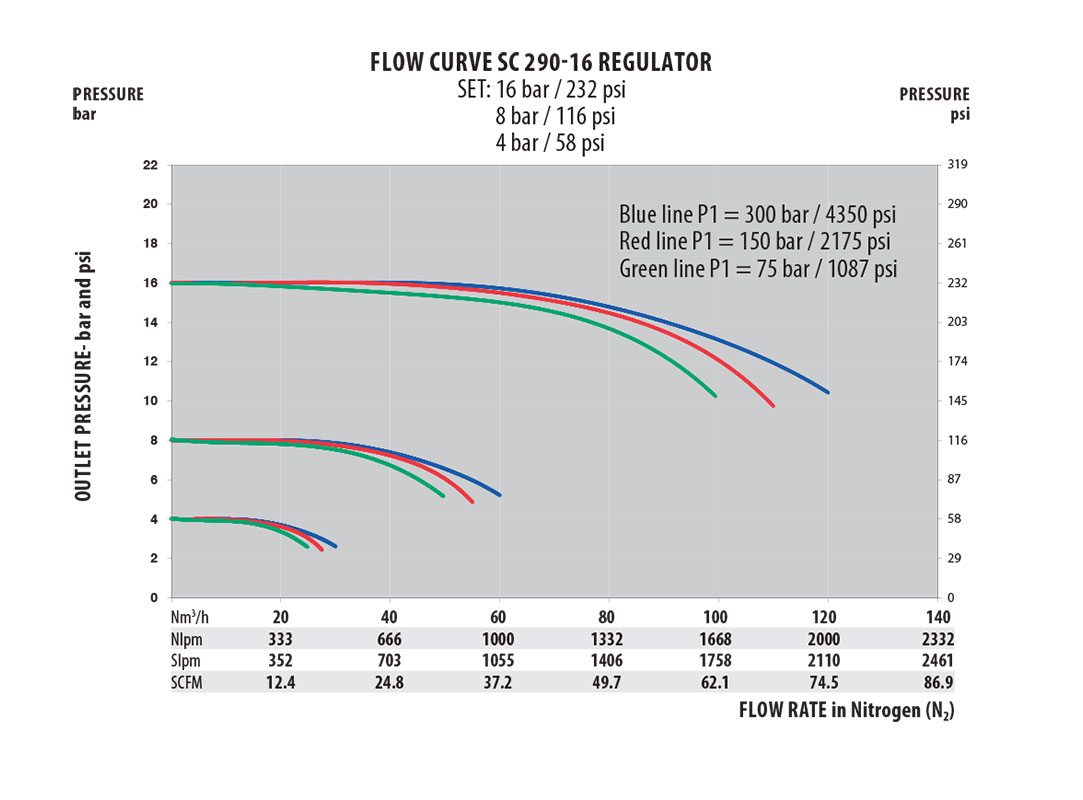

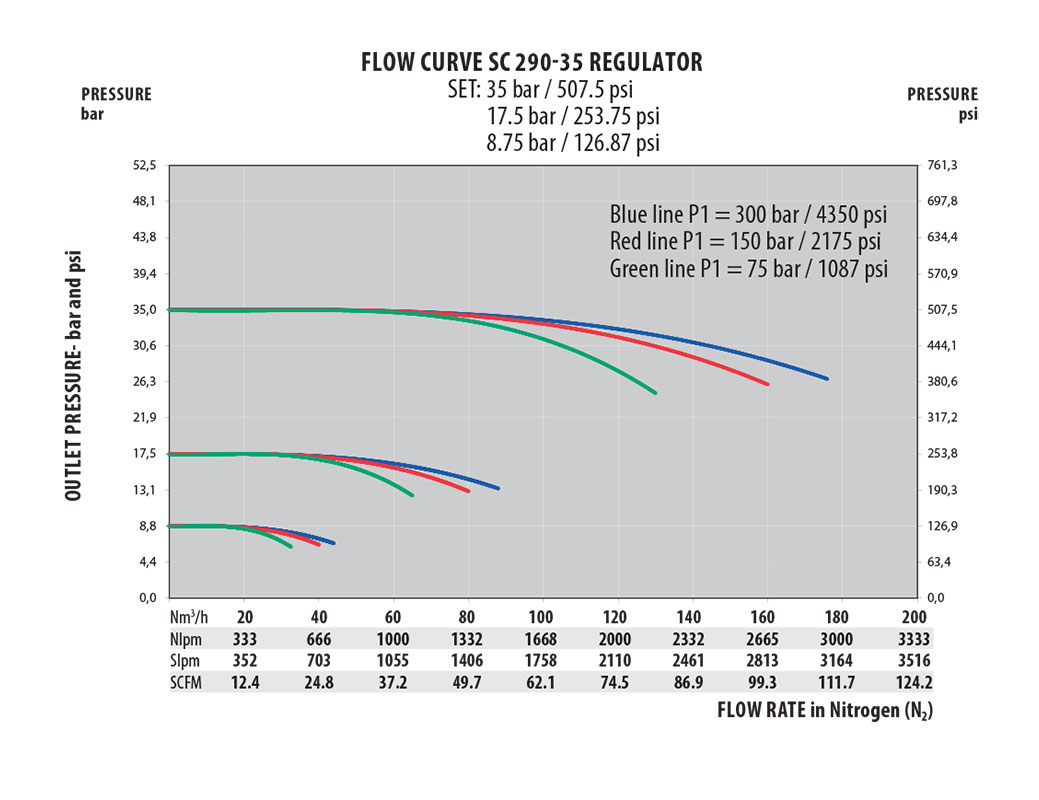

FLOW CURVES
Specifications
| Female ports | 1/4” NPT (Inlet/Outlet) |
| Valve seal | PCTFE |
| O-ring | PTFE |
| Diaphragm | Hastelloy® |
| Weight | ± 1,4 kg |
| Temperature range | - 40 to + 60 °c |
| Gauges | High and low pressure (1/4 NPT) |
| Inlet pressure | 200 bar 2900 psi |
| Outlet Pressure | 1,6-16 / 3,5-35 bar 232/508 psi |
| Oxygen use | OK with brass |
| Nominal flow cv | 50/75 Nm3 /h (N2 ) 0.2 |
| Leak rate | 10-8 mbar ℓ/s He |

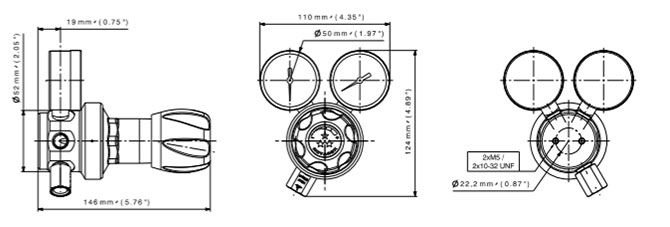

Dimensional drawings
