Inlet pressure | Version type | Outlet Pressure | Body material | End connections | O-ring material | Gauges | Outlet valve | Configurations | |
CEN | 200 | SEMI | 10 | LB | G | EPDM - standard | 1 | V | A |

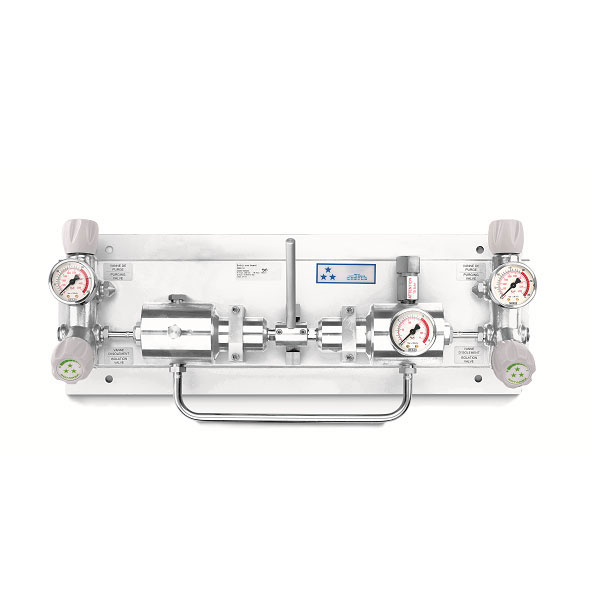

High flow automatic switchover board with manual reset - CEN
The CEN switchover board is suitable for the high flow supply of non-corrosive industrial gases when high flow are required like for plasma TIG and MIG cutting and welding applications.
Key advantages
- Possible to connect up to 6 cylinders without using the purge line
- Outstanding pressure consistency with Balanced Valve Technology.
- Ready to install for better productivity: all components are pre-mounted on the mounting panel
- Reduced seat effort increases life of the regulator and reduces the ownership cost
- Non-whipping filter on bottom inlet improves safety of the operator during the cylinder replacement
- Can be equipped with an outlet 1/4 turn shut-off valve, with a collection tube, with an alarm box
- Acetylene (AD) and Propane (PR4) versions on demand
FLOW CURVES
Specifications
| Female ports | G 3/8 (inlet) - G 1/2 (outlet) or 3/8 NPT (inlet) - G 1/2 (outlet) |
| Seat seal | PCTFE |
| O-ring | EPDM - standard FPM |
| Diaphragm | AISI 304 or Hastelloy® |
| Weight | ± 13,8 kg |
| Temperature range | -20 to +60 °c |
| Gauges | High and low pressure (M10 x 1 or G 1/4) |
| Inlet pressure | 200 bar / 300 bar AD & PR4: 25 bar |
| Outlet Pressure | 10/16/30/50 bar AD: 1 bar PR4: 4 bar |
| Oxygen use | OK with inlet pressure 200 and 300 bar |
| Nominal flow 200 bar version | 70/110/150/180 Nm3 /h (N2) |
| Nominal flow 300 bar version | 50/70/100/130 Nm3 /h (N2) |
| Leak rate | w/outlet valve: 1.10-4 mbar ℓ/s He w/o outlet valve: 1.10-8 mbar ℓ/s He |
| Nominal flow ad and pr4 | AD: 6,5 Nm3 /h PR4: 10 Nm3 /h |

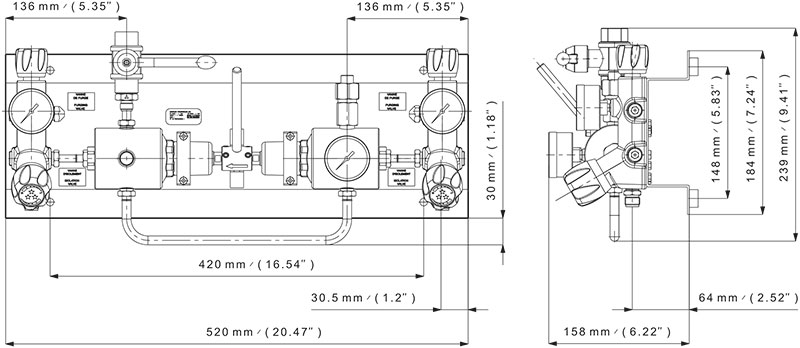

Dimensional drawings
