RPV valves

The RPV is the new generation of Residual Pressure Valves for Carbon Dioxide, Oxygen, Inert, mixtures and flammable gases.

It is compatible with all existing RPV connections and increases the flow capacity enabling faster fill cycles. Its Residual Pressure Device prevents ingress of contaminants like moisture and particles in the cylinder and ensures a longer life time of the cylinder.

There is a lot of product variants including C500, C505, C506, C510, C515, C515, C516, C520, C525, C526, C530, C535, C536, C540, C545, C546
Key advantages
  • Increase your flow capacity thanks to high Cv value up to 0.7
  • Bigger stroke of Residual Pressure Device (RPD) piston (up to 7mm)
  • Improve your productivity
  • Fit to all existing RPV connections and common industrial gases
  • Piston stroke (Residual Pressure Device (RPD) Displacement up to 7 mm) enhancing to cover all range of pin length
  • Compatible with automatic filling station
  • Oxygen pressure surge tested at 380 bar
  • Robust & compact patented design up to 315 bar (4000 cycles tested)
  • Excellent gasket resistance up to 60 blow downs
  • New handwheel design with integrated rupture safety
  • Easy guard replacement during maintenance thanks to the compact design
  • Suitable for medical oxygen

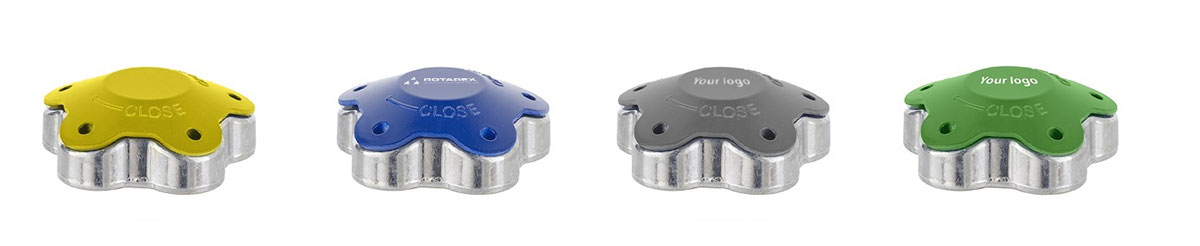

CUSTOMIZABLE HANDWHEEL



  • Opaque or transparent cap
  •  Available in many different colors
  • Customized printed logo on request
  • Stronger assembly cap with handwheel
  • Ergonomic design for comfortable grip

Product image

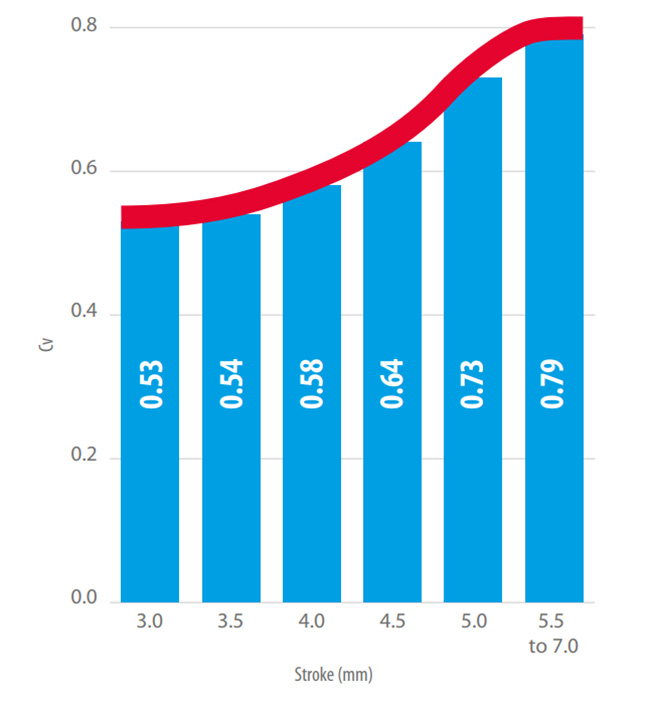

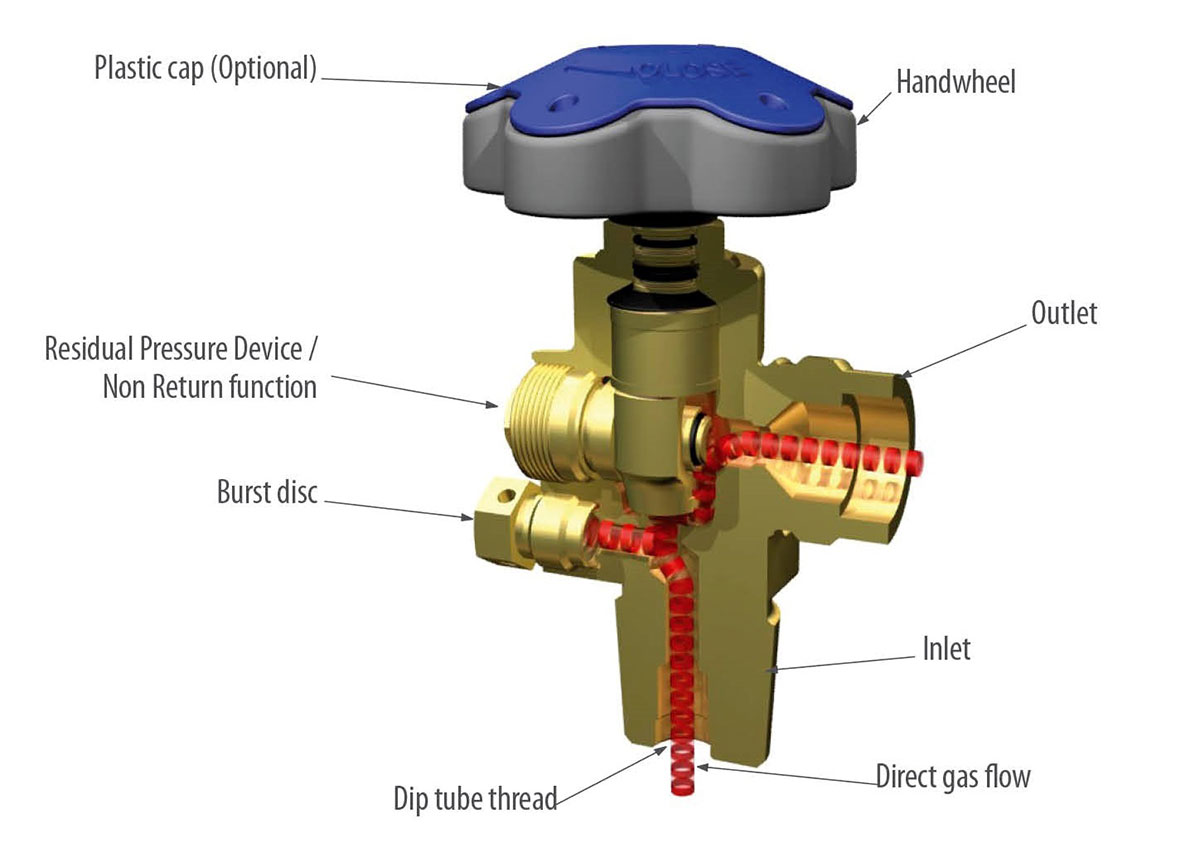

FLOW OPTIMIZED DESIGN / FASTER FILLING



Product imageProduct image



Specifications
Temperature range-40 to +65 °c
Gas typeCarbon Dioxide, Inert & mixtures, Oxygen, Flammable & mixtures
Approved according toISO 10297 - 2014 ISO 15996 - 2017
Tested up to4.000 cycles for manual valve 200.000 cycles for RPD
Max. stroke of rpd7 Mm
MaterialBody: brass
Handwheel: aluminium
O-ring: EPDM or PU
Spring: CUBE / Stainless Steel
Leak rate1.10-3 m-bar-l-s
Working pressure p max.300 bar

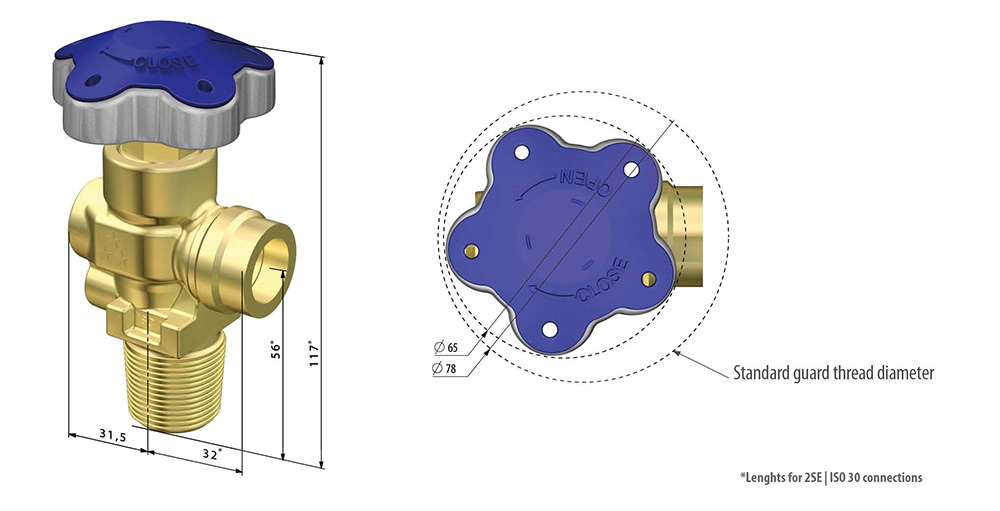

Dimensional drawings
