Safety device for acetylene use - 50HD
50HD is a multi-purpose safety device for high-pressure acetylene pipes. It used on acetylene production or filling plants, on the line between compressor and dryer.
It is equipped with a temperature sensitive cut off valve which automatically shuts off the acetylene supply in both directions in the event of a flash back whenever a preset temperature is reached and in the event of acetylene decomposition; a flame arrestor which prevents a flame from propagating in either direction.
It is equipped with a temperature sensitive cut off valve which automatically shuts off the acetylene supply in both directions in the event of a flash back whenever a preset temperature is reached and in the event of acetylene decomposition; a flame arrestor which prevents a flame from propagating in either direction.
Key advantages
- Multi-purpose safety device for high pressure acetylene pipes
- Equipped with a temperature sensitive cut off valve, a flame arrestor
- Approved by validation test according to EN ISO 15615
- In compliance with the PED 2014/68/EU directive
Specifications
| Gas used | C2H2 |
| Maximum operating pressure | 25 bar |
| Inlet connection | G2 male in accordance with ISO 228 |
| Outlet connection | G2 male in accordance withISO 228 |
| Body material | Dichromate steel |
| Total length | 398 mm |
| Weight | 7.4 kg |
| Body diameter (maximum) | 77 Mm |

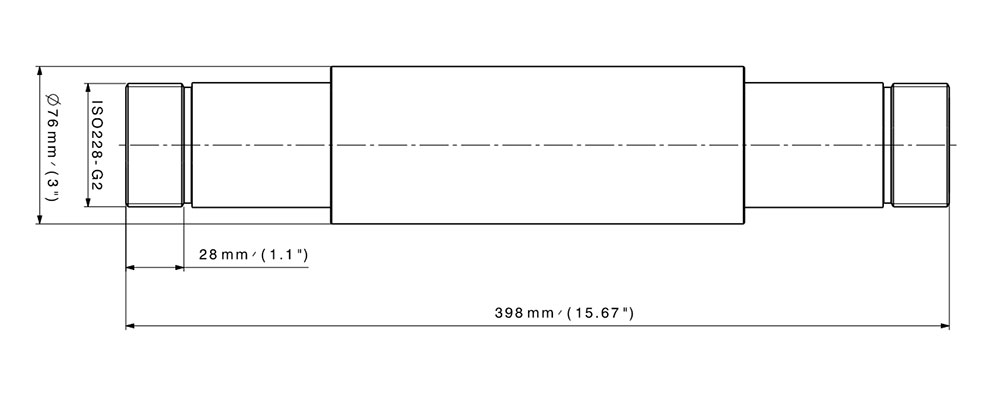

Dimensional drawings
