3 inlets/2 outlets monoblock valves - Duoblocs
Monoblock valves with 3 common inlets and 2 manual and multi-turn shut off valves for various pure gases.
Key advantages
  • Space efficient monoblock design is exceptionally durable and safer due to fewer potential leak points
  • 2 manual shut off valves with non-rotating seat disc holder (brass version), with diaphragm (stainless steel version)
  • Rear thread for panel mounting
  • Raw brass, chrome plated brass or stainless steel
Specifications
Female portsG 3/8, 1/4 NPT or 3/8 NPT (inlet/outlet)
Seat sealPA 6.6 (brass version) PCTFE (SS version)
O-ringEPDM - standard FPM
Bottom taperedOK
Weight± 1,3 kg
Leak rate3.10-7 mbar ℓ/s He
Temperature range-20°C to + 50°C
Inlet pressure200/300 bar
Flow coefficientCv 0.208, Kv 0,18 (main in) Cv 0.220, Kv 0,19 (lateral)
Multi-turn handwheelOK
Oxygen useOK (special O2 version)

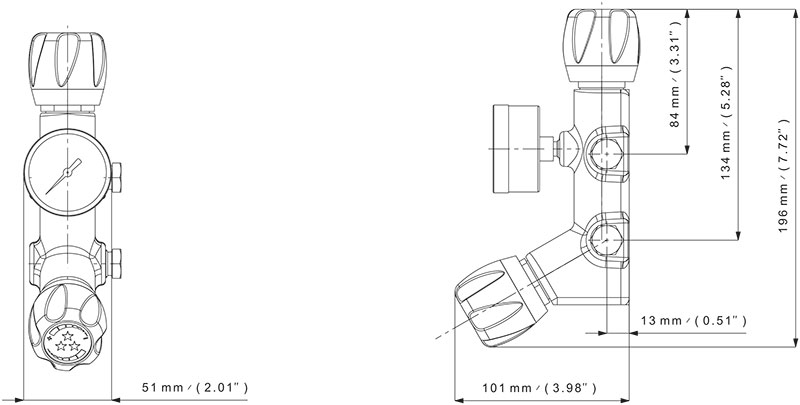

Dimensional drawings
Drawing
Product Configurator

Inlet pressure
Body material
End connections
Port orientation
O-ring material
Version
DUOBLOC
200
LB
G
LF
EPDM
STD

200 bar 2900 psig
300 bar (brass only) 4350 psig
Raw Brass
Chrome Plated Brass
Stainless steel
G 3/8 - Female
1/4 NPT - Female (L&I version)
3/8 NPT - Female (L&I version)
Left inlets
Right Inlets
EPDM-Standard
FPM
Standard
Oxygen use
Downloadable catalogs, brochures
  • Download
