Diaphragm low to high pressure line valve - VD
VD Diaphragm seal valve is designed for various pure gases. It has high leak tightness thanks to its diaphragm sealing.
Key advantages
  • Hastelloy® diaphragm for tightness and gas compatibility
  • ¼ turn ergonomic handwheel
  • 3 versions : 50, 200 and 300 bar inlet working pressure
  • 3 configurations : female-female, male-female, female-male
  • With rear threads for panel mounting
Specifications
Ports¼ NPT : FF, MF or FM G3/8: FF
Seat sealPCTFE
DiaphragmHastelloy®
Bottom taperedOK 2x M5 at Ø18mm
Weight310 Gr
Leak rate10-8 M bar l/s
Temperature range-20 to +60 °c
Seat orifice sizeØ 4mm
Inlet pressure50 / 200 / 300 bar
Flow coefficient (kv)0,17 Kv / 0,2 Cv
Oxygen useOk up to 310 bar (brass version only)

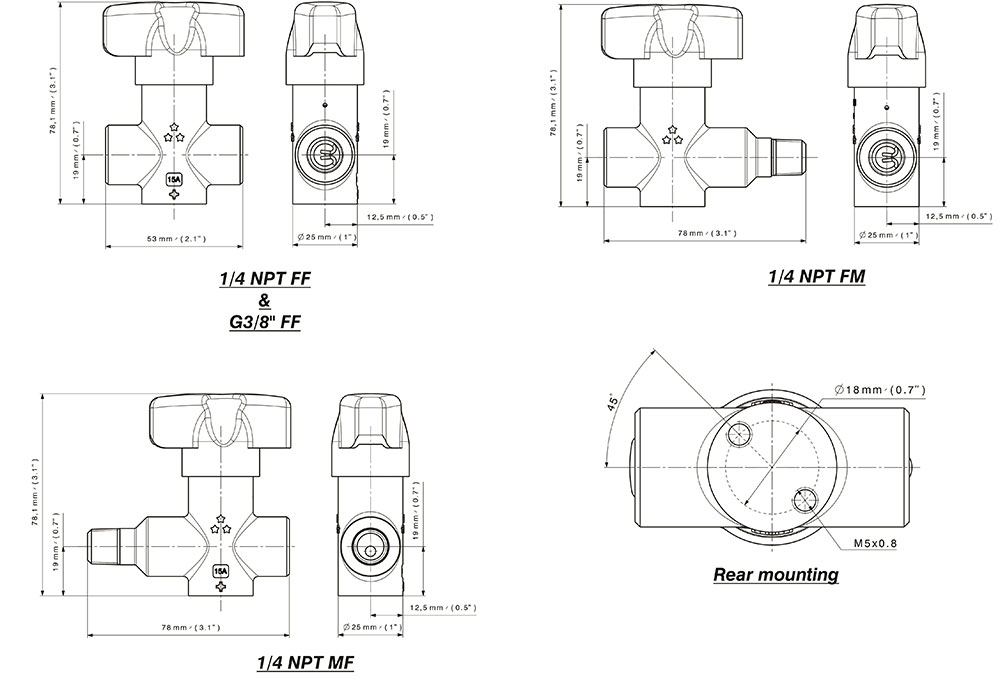

Dimensional drawings
Drawing
Product Configurator

Body material
Inlet pressure
Orientation
Connection
Handwheel
VD
B
50
FF
N
¼T

Chrome plated brass
B
Stainless steel
S
50 bar
50
200 bar
200
310 bar
310
Female-Female
FF
Male - Female (only with 1/4NPT)
MF
Female - Male (only with 1/4NPT)
FM
1/4NPT
N
G3/8
G
¼ turn
¼T
Downloadable catalogs, brochures
  • Download
    Pressure Regulators Catalog
    Last update: Jun 29, 2023
    Available in: en
