Metering valve with needle - RD10
Equipment for gas systems > Speciality gas equipment > O-ring and diaphragm line valves
RD 10 is a needle valve for various pure gases. This metering valve has a very precise flow setting and is ideally suited for use on regulators outlet.
Key advantages
  • Available in straight, 90° version
  • Low torque operation
  • Multi-turn adjustment knob
  • Very precise flow
  • Ideal for use on regulators outlet
  • Must imperatively be installed with a flash back arrestor for acetylene use
PortsMale inlet : G 3/8 or 1/4 NPT / Female outlet: G 1/8 or 1/4 NPT
Seat sealMetal / metal
O-ringEPDM - Standard / FPM
Bottom taperedNo
Max of turns open for max flow3 turns
Weight± 0,085 kg
Temperature range-20 to +50 °c
Seat orifice sizeØ 2,5 Mm
Inlet pressure60 bar
Flow coefficientCv 0.116. Kv 0,10 (straight) / Cv 0.174. Kv 0,15 (90°)
Oxygen useOK with P1=30 bar max

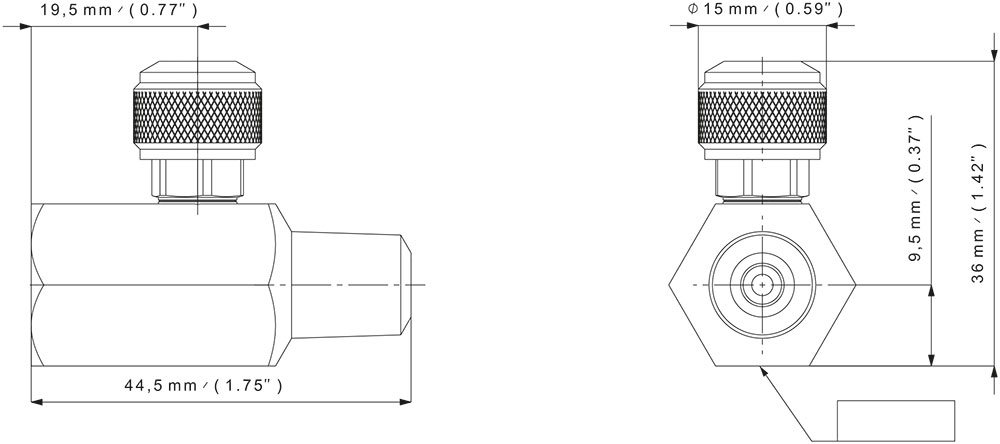

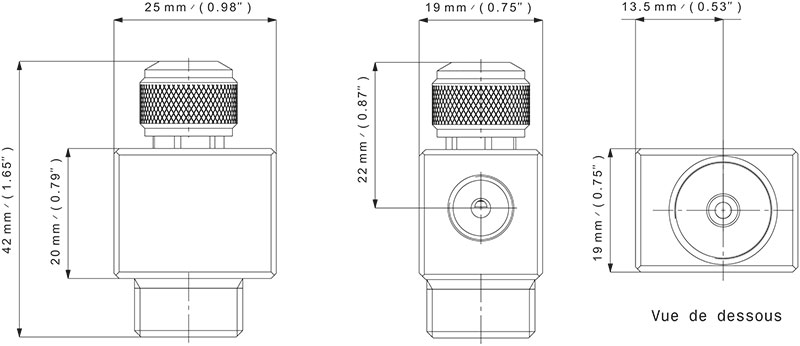

Dimensional drawings
Product Configurator
Body material
End connections
O-ring material
Chrome plated brass
Stainless steel
In: G 3/8 - Male Out: G 1/8 - Female
In: 1/4 NPT - Male Out: 1/4 NPT - Female
In: G 3/8 - Male Out: 1/4 NPT - Female
Right angle
EPDM - standard
Downloadable catalogs, brochures
  • Download
    Pressure Regulators Catalog
    Last update: Feb 21, 2022
    Available in: en/fr/de/fr/de
