Low pressure dual port brass cylinder valves - D285
cylinder valve - Dual port - Diaphragm Seal type with RPV
Key advantages
- Soft seat sealing arrangement offers low operating torque
- Valve seat captivated to avoid extrusion and blockage of the valve
- High leak tightness integrity through diaphragm sealing
- High performance thrust pad
Specifications
| Connections | ¼” SAE |
| Working pressure | 45 bar |
| Nominal flow rate | CV = 1.0 |
| Temperature range | -40 to +65 °c |
| Body materials | Brass CW617N or stainless steel 1.4305 (AISI 303) |
| Leak rate | 1.10-7 m bar L/s |
| Seat orifice size | 8 Mm |
| Safety | CG1 – 2- 3 -4 -5 – 7 |

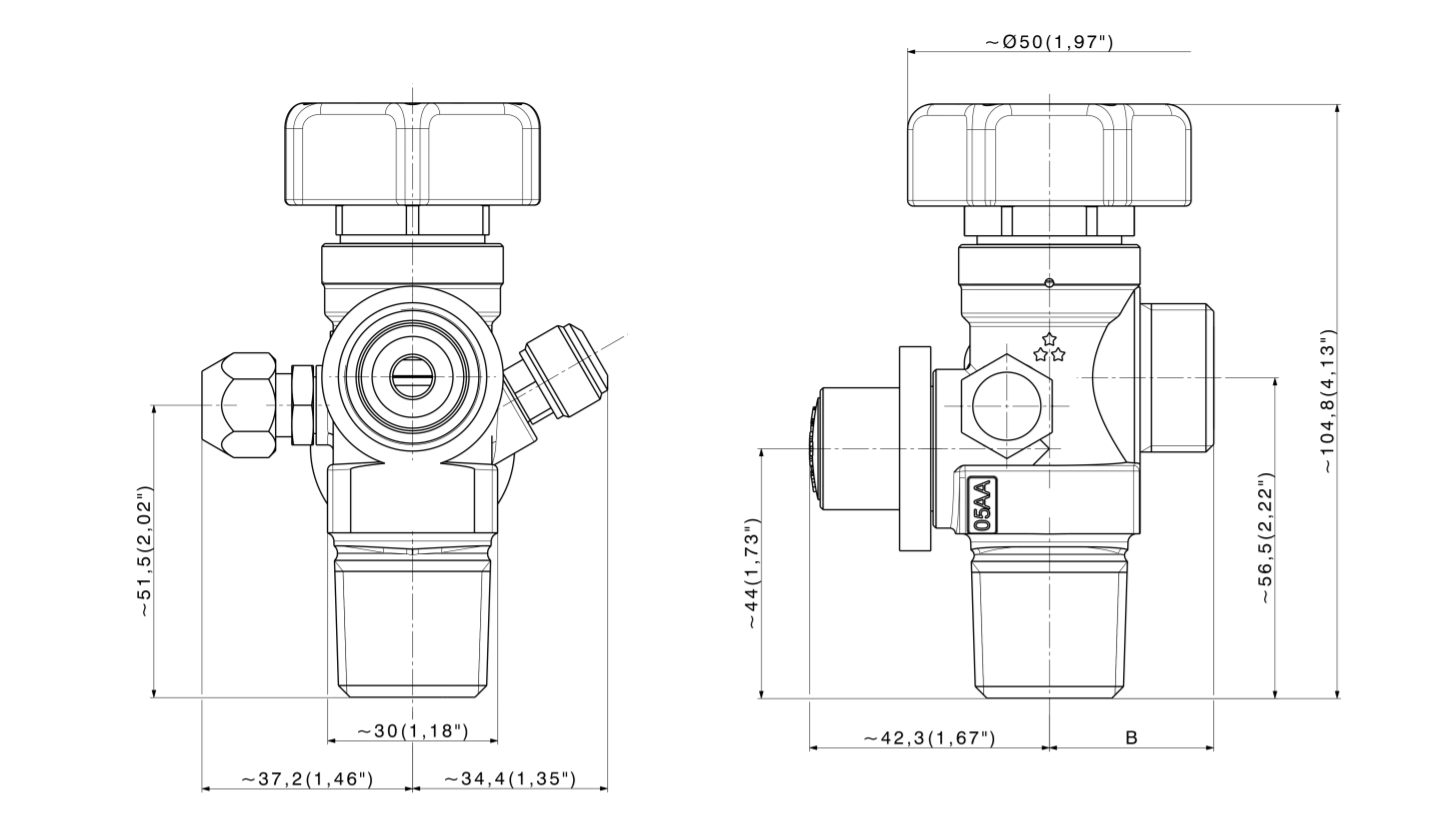

Dimensional drawings
