Stainless steel cylinder offline RPV valve for High Purity gases - D282
High pressure cylinder valve - Diaphragm seal - soft seat - integrated residual pressure device
Key advantages
  • Soft seat sealing arrangement offers low operating torque
  • Valve seat captivated to avoid extrusion and blockage of the valve
  • High leak tightness integrity through diaphragm sealing
  • High performance thrust pad
ConnectionsAccording (inter-)national standards and customer’s specifications
Working pressure200 bar
Nominal flow rateCV = 0.21
Temperature range-20 to +65 °c
Body materialsStainless steel 1.4435 (AISI 316L), Stainless steel 1.4305 (AISI 303), Brass
Leak rate1.10-7 m bar L/s
Seat orifice size3.5 Mm
Markingπ (according to TPED), manufacturing date, 3 stars, valve part number, valve inlet, valve outlet

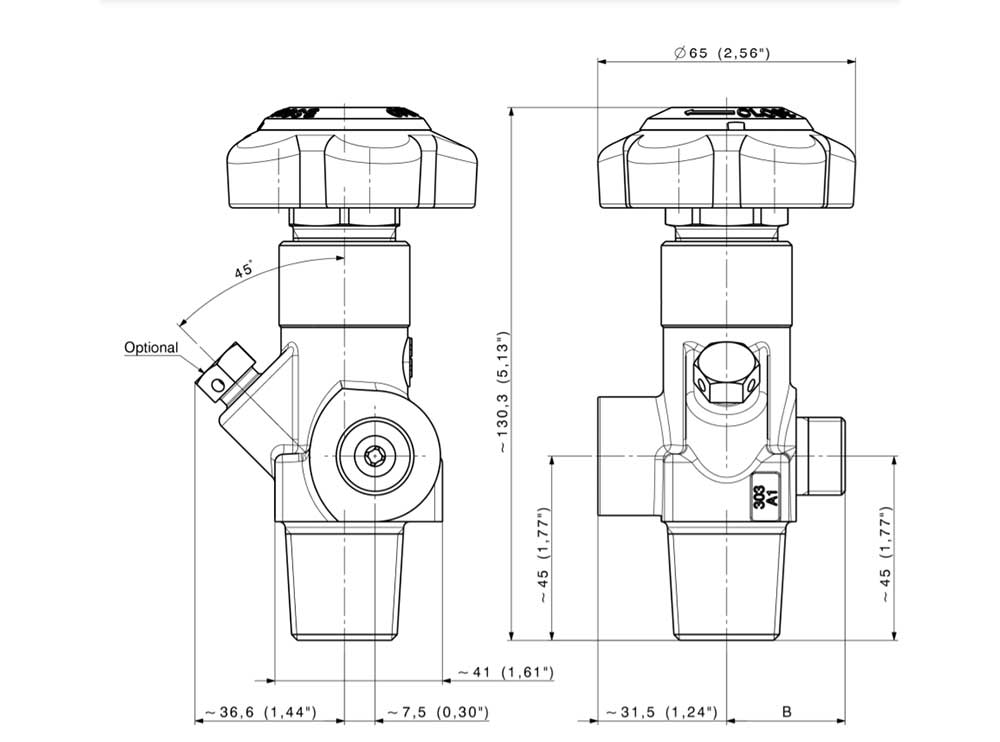

Dimensional drawings
