Gas cylinder bundles: safe and efficient storage solutions

Gas cylinder racks are designed to provide a safe, reliable and efficient solution for storing, securing and handling gas cylinders in industrial and commercial environments. Whether used in manufacturing plants, laboratories, hospitals or hydrogen-related applications, a high-quality, solid and durable gas cylinder storage rack plays a critical role in protecting people, equipment and gas supply continuity.

Gas cylinders often contain dangerous, pressurized or flammable substances. Without proper storage, they represent a major safety risk. By stabilizing cylinders within a rigid metal structure, gas cylinder racks significantly reduce the likelihood of tipping, impact damage or accidental gas release. They improve overall safety, ensure compliance with regulatory requirements, and optimize available storage space.

Compared to loose cylinder stands, wall brackets or individual restraints, racks enable organized storage of multiple cylinders, easier transport, and reduced manual handling risks, including when dealing with specialty or high-pressure gases in demanding industrial settings.

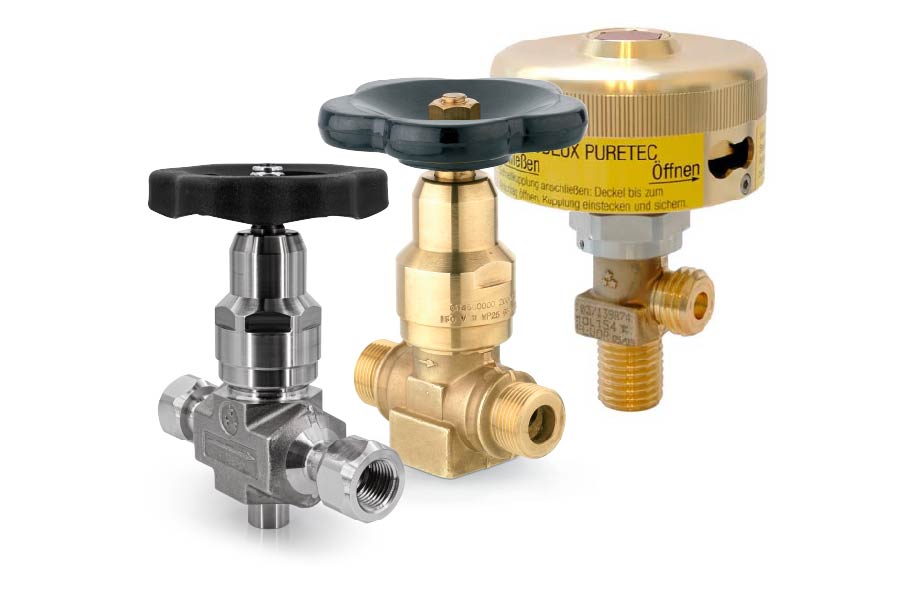

Rotarex products compatible with gas cylinder bundles

Rotarex offers a range of high-pressure, robust and Pi-marked (transportable) valves and safety devices designed for use with gas cylinder racks and bundles. These products are built to withstand demanding industrial environments and ensure safe gas distribution from multi-cylinder installations.

The D615 and D655 high-pressure bundle valves are primarily intended for hydrogen (H₂), helium and other high-pressure gases, including automated systems. The C140/C141 and C143/C142 line and angled bundle valves are suitable for industrial gases, offering flexible integration on racks. For acetylene applications, dedicated solutions such as HP12, DF3L and DF10 ensure the required safety level, while the D131 valve with pneumatic actuator is designed for corrosive gases. Combined with gas cylinder racks, these solutions provide a safe, durable and efficient gas management system.

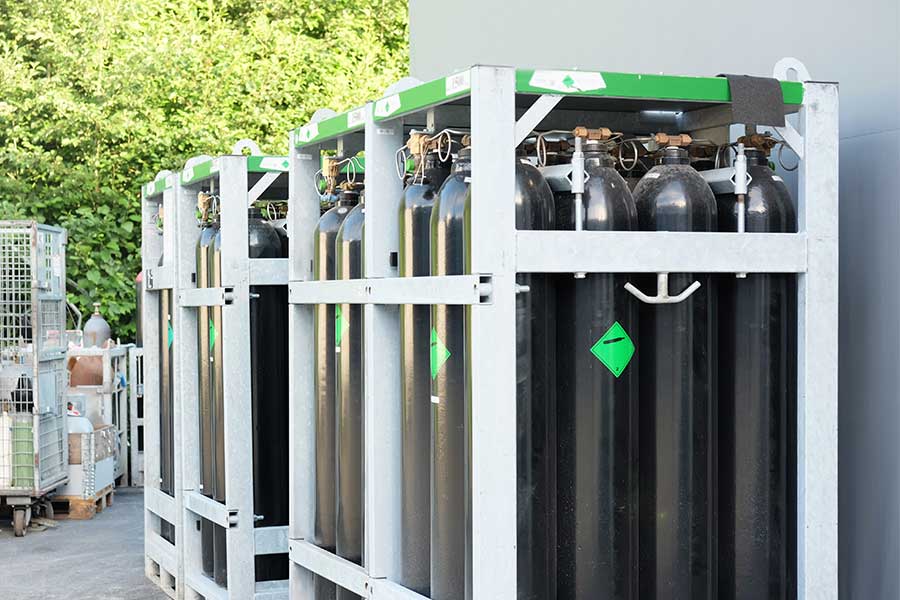

What is a gas cylinder rack and what are its key features?

A gas cylinder rack is a mechanical structure specifically built to store, secure and sometimes transport multiple gas cylinders as a single, stable unit. Its construction is designed to withstand mechanical stress, impacts and long-term industrial use. Gas cylinder racks are widely used in industrial, laboratory, medical and hydrogen applications to prevent cylinders from tipping, rolling or being damaged during handling, transport or storage.

Unlike individual cylinder stands or wall brackets, a rack groups several cylinders together into one cohesive system. Many configurations allow multiple bottles to be connected to one common gas outlet, eliminating the need for frequent bottle-by-bottle changeovers. This improves operational continuity, reduces downtime and limits operator exposure to dangerous handling operations.

Typical rack features include:

A resistant and durable base frame ensuring long-term stability
Chains or straps securing each cylinder individually
Optional wheels, lifting eyes or forklift pockets for transportable use
Compatibility with various cylinder diameters and cylinder capacity ranges

How to store gas cylinders safely with racks?

Safe gas cylinder storage starts with proper fixation. Cylinders must always be secured using chains or straps to prevent movement or tipping. Unsecured cylinders are one of the most common causes of gas-related accidents and are particularly dangerous in high-traffic industrial areas.

Gas cylinder racks ensure:

Stable vertical positioning of each cylinder
Protection against accidental impacts
Separation from heat sources, ignition points and direct sunlight
Clear labeling and easy visual inspection

In addition, safe storage should follow site-specific hazard zone requirements, especially for flammable or oxidizing gases, to ensure appropriate separation distances, ventilation and ignition-source control.

Using certified equipment and following applicable safety standards supports compliance and reduces risk. Regular inspections of the rack structure, restraints, and connections further improve safety in facilities handling pressurized, flammable or specialty gases.

How to store gas cylinders safely with racks?

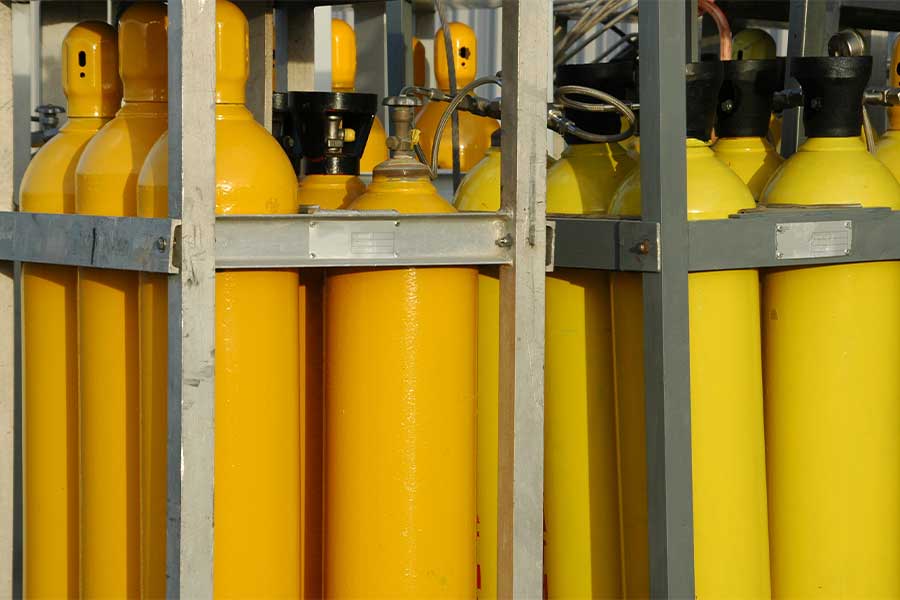

Types of Gas Cylinder Racks Available

Several rack types are available to match different operational needs and safety levels:

Stationary Racks: Designed for fixed storage in workshops, laboratories, gas rooms or production areas. These racks prioritize stability and long-term durability.
Mobile Racks / Hand Trucks: Equipped with wheels and handles, they are designed for manual handling and short-distance transport while keeping cylinders securely restrained.
Forklift Pallets: Allow safe bulk handling and transport of multiple cylinders in industrial logistics environments, reducing manual lifting and improving efficiency.
Cabinets and Cages: Provide reinforced protection, weather resistance and restricted access for sensitive or dangerous gases.

Each solution balances safety, mobility and operational requirements depending on how cylinders are used on site.

How to Choose the Right Rack for Your Needs?

Selecting the right gas cylinder rack requires a clear understanding of operational constraints and safety priorities:

Number of cylinders used daily
Cylinder dimensions, pressure level and gas type
Operating environment (laboratory, hospital, production or industrial site)
Need for mobility versus fixed installation
Compliance with local and international safety regulations

Beyond technical and safety considerations, overall system selection may also take into account the price of the complete installation, including the rack, gas cylinders and integrated components, in order to balance safety requirements with operational and budget constraints.

A well-chosen rack improves workflow continuity, reduces handling time and strengthens operational control. Our range also includes compatible accessories such as restraint systems, connectors and handling options to tailor each solution to your exact application.

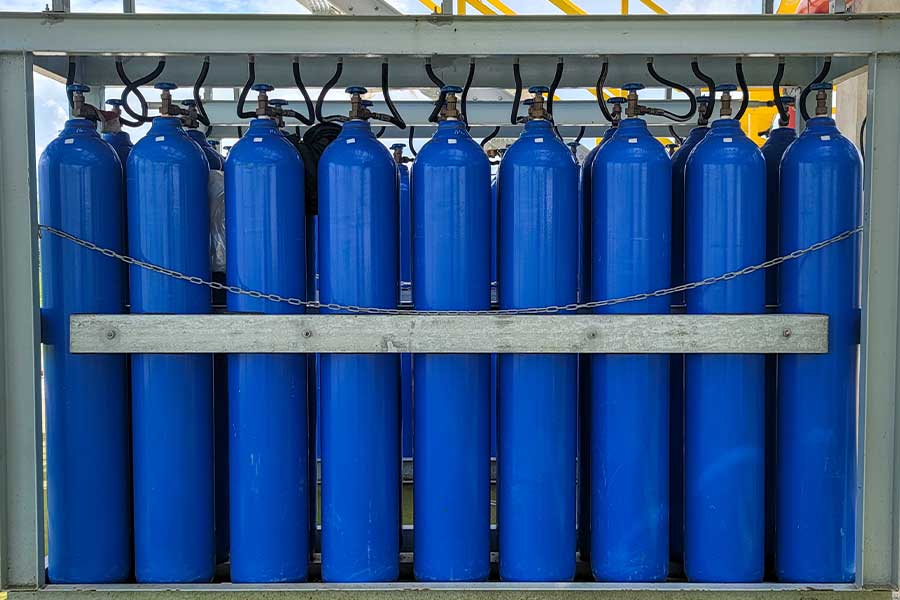

What Are the Standard Dimensions and Capacities?

Gas cylinder racks are available in a wide range of standard dimensions and sizes. Common configurations are designed to hold 1, 2, 4, 6, or up to 12 cylinders, depending on cylinder size and application.

Selecting the right rack depends on:

Number of cylinders in use
Cylinder diameter and height
Available floor space and handling constraints

Proper sizing ensures stability, efficient storage and compliance with safety requirements, while maximizing space utilization.

What Are the Standard Dimensions and Capacities?

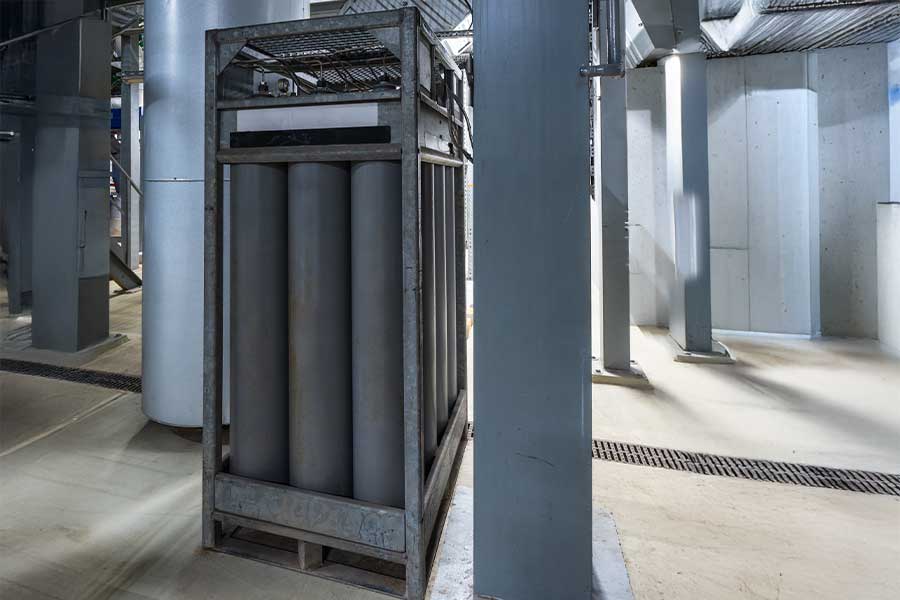

Gas Cylinder Racks vs. Gas Bundles

A cylinder rack is a fixed or semi-fixed structure designed to hold multiple individual gas cylinders that are connected separately on site. It offers flexibility in cylinder management and is well suited for permanent installations where cylinders are replaced one by one. A gas cylinder bundle, by contrast, is a pre-assembled, transportable unit in which all cylinders are permanently manifolded within a dedicated frame. Bundles provide a higher level of integration, faster installation, reduced handling, and improved supply continuity. While racks are ideal for static applications with frequent cylinder changes, gas cylinder bundles are the preferred solution for users seeking mobility, plug-and-play operation, and simplified logistics.
