Bellow point of use - S21

S21 point of use is designed for specialty gas applications. It is based on the S20 pressure regulator technology.
Key advantages
  • Bellow technology permits a large range of accurate outlet pressures in a compact design
  • Flexible mounting options on wall or panel
  • Must be installed with a flash back arrestor for use with acetylene
  • Acetylene version available (AD)

FLOW CURVES

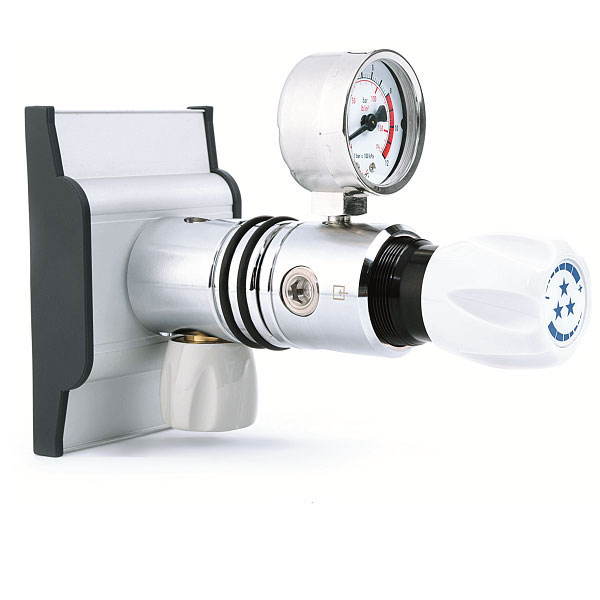

Product image

Product image

Product image

Product image

Specifications
Female portsG 3/8 (inlet/outlet) or 1/4 NPT (inlet/outlet)
Seat sealEPDM
O-ringEPDM - Standard / FPM
Diaphragm (valve)Hastelloy®
BellowBronze (Brass version) / AISI 316L (SS version)
Weight± 0,9 kg
Temperature range-20 to +60 °c
GaugesLow pressure (M10 x 1 or 1/4 NPT)
Inlet pressure50 bar (725 psi)
AD: 20 bar (290 psi)
Outlet Pressure0,1-1 / 0,3-3 / 1-10 bar (14.5/44/145 psi)
AD: 1,5 bar (21,75 psi)
Oxygen useinlet pressure ≤ 30 bar max. for brass and stainless steel
Nominal flow2/2,5/3,5 Nm3 /h (N2 )
AD: 1 Nm3 /h
Leak rate10-8 M bar l/s

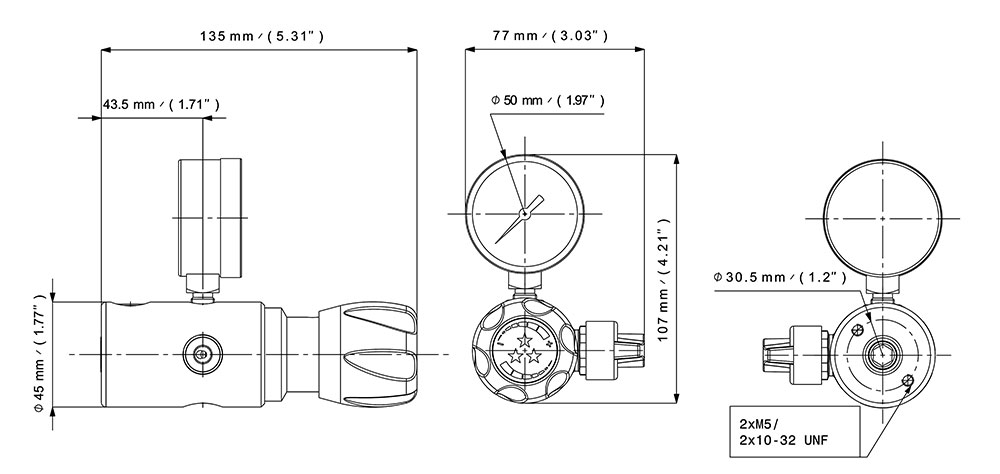

Dimensional drawings
Drawing
Product Configurator

Body material

Outlet Pressure
End connections
O-ring material
Gauges
Plate
S
L
S21
1
G
EPDM
0
STD

Chrome plated brass
L
Stainless steel
I

1 bar
1
3 bar
3
10 bar
10
Acetylene version 1,5 bar
AD
G 3/8 - G 3/8
G
1/4 NPT- 1/4 NPT
N
EPDM - standard
EPDM
FPM
FPM
Without
0
With
1
Without plate
STD
With metal plate
M
