Flexible hoses for food industry- FX06 F
FX06 F are stainless steel high pressure hoses to connect cylinders to manifolds or switchover boards for food processing. The flexible hoses are compliant with EC 1935/2004 food regulation. They are standardly equipped with a stainless steel safety cable as a safety best practice.
Key advantages
  • Available with or without safety cable
  • Compliant with EC 1935/2004 regulation
  • Available in different lengths
Specifications
Maximum operating pressure200 bar (DN 1/4”) or 150 bar (DN 3/8”)

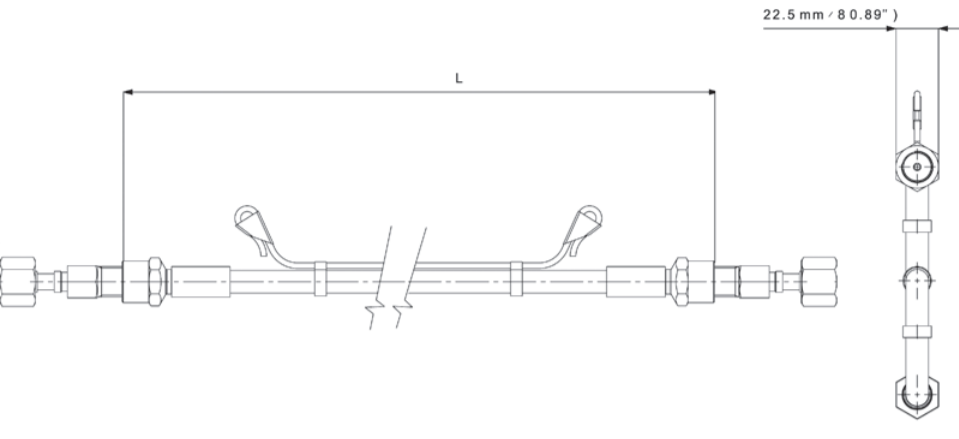

Dimensional drawings
Drawing
Product Configurator
type

Inner diameter
Length
Type of connection
Size of connection or cylinder connection
Thread
Options
FX06
F
DN1/4
0500
RB
6
N
B
Stainless steel 316L/304

1/4”
3/8”
500 mm
1000 mm
1500 mm
2000 mm
3000 mm
tube fitting
female pipe adapter
male pipe adapter
tube adapter
female face seal fitting
male face seal fitting
French Standard cylinder connection
German cylinder connection
6 mm
10 mm
1/4 inch
3/8 inch
1/2 inch
cylinder connection
NPT
BSPP-RP
16 x 1,336 F
G 3/8 - Female w/ rotating nut
Elbow on cylinder side
Downloadable catalogs, brochures
  • Download
    Foodline - Gas equipment for food processing
    Last update: Mar 17, 2021
    Available in: en/fr/it/de
