Piston single stage high pressure regulator for medical gases - M730 Alpinox
The Alpinox medical gas cylinder pressure regulator medical gas therapy at the hospital, at home or during transportation. It is directly connected to the standard valve mounted on the cylinder. It reduces the pressure and allows an easy setting of the gas flow. The gas flow stays uninterrupted even when changing the flow setting. Its modern design with plastic cover makes it ergonomic, easily cleanable and fully shock resistant.

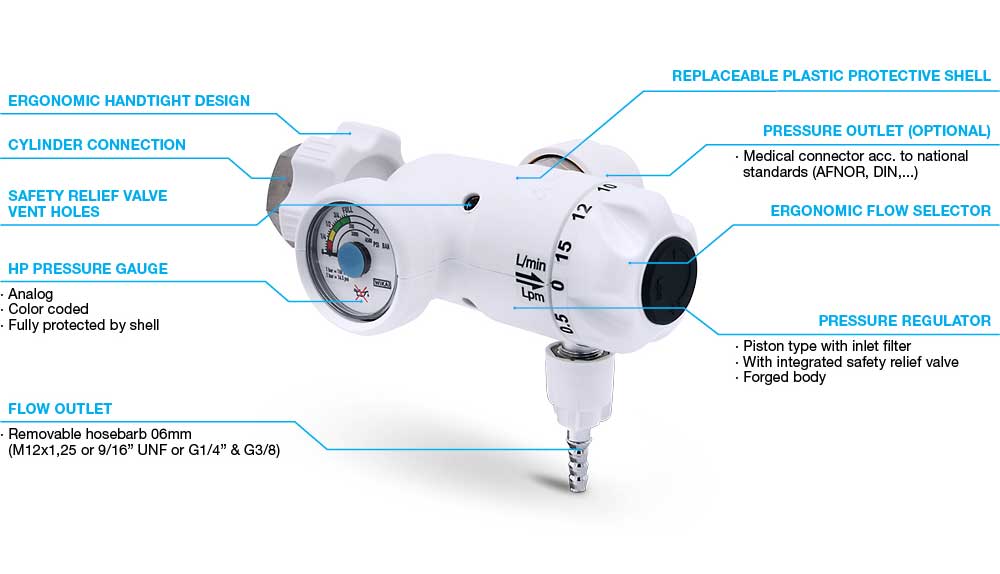

Key advantages
  • Strong compatibility with oxygen and other medical gases
  • Direct drive manometer resistant to shocks and vibrations
  • Manometer & flow indicator placed on the side for convenient reading
  • Aesthetic & easy-to-clean plastic cover protecting the pressure gauge from potential damages
  • Ergonomic 12 positions flow knob with continuous flow between settings
  • Proven technology used in medical VIPRS with a 10 years lifetime and no preventive maintenance
  • MRI compatible



COMPACT, LIGHTWEIGHT & PILL TEST RESISTANT DESIGN

Product image

INDIVIDUAL TRACEABILITY & UDI LABELLING

Product image

VERSIONS

Product image



FLOW RANGE



Product image



Specifications
GasOxygen, Air, N2O/02, Other medical gases
Max inlet pressure200 bar / 2000 psig
Life time10 years
FilterSintered bronze 20 μm
Flow rangeFrom 0-6 Lpm to 0-25 Lpm
Body materialBrass
O-ring materialEPDM
Seat materialNylon
Weight0,67 kg (standard version)
Regulatory status10524-1
Ce markingCE0123
Pill testResistant to ASTM G175
Dimensional drawings
DrawingDrawingDrawing
Product Configurator

Gas
Working pressure
Cylinder connection
Outlet Pressure
Flow range
Pressure outlet
Flow outlet
M730
O2
200
NF
3.5
6L
N
9/16

O2
Air
N2O/O2
Other medical gases
200 bar
2000 psig
AFNOR
DIN9
BS
UNI
Pin Index
ABNT
CGA
Other according to local regulations
3.5 bar
4.5 bar
Other according to local regulations
0-6Lpm
0-15Lpm
0-25Lpm
FIxed outlet pressure
None
AFNOR
DIN
BS
Scandinavian
DISS
UNI
Others according to local regulations
Hose Barb Ø6mm - Removable 9/16
Hose Barb Ø6mm - Removable M12x125
Hose Barb Ø6mm - Removable G1/4
Hose Barb Ø6mm - Removable G3/8
