UHP Fitting Nickel Gasket & Retainer - DNI-R/JSS-R
Nickel Gasket & Retainer
Key advantages
- Exceptionally tight metal-to-metal sealing
- Class 10 Cleanroom cleaned, assembled and double-packaged
- 3 available grades of internal surface finish: 0,08 / 0,15 / 0,40 Ra µm (3 / 5 / 16 Ra µinch)
- A large choice of metric and fractional dimensions
- Interchangable with components from other leading manufacturers

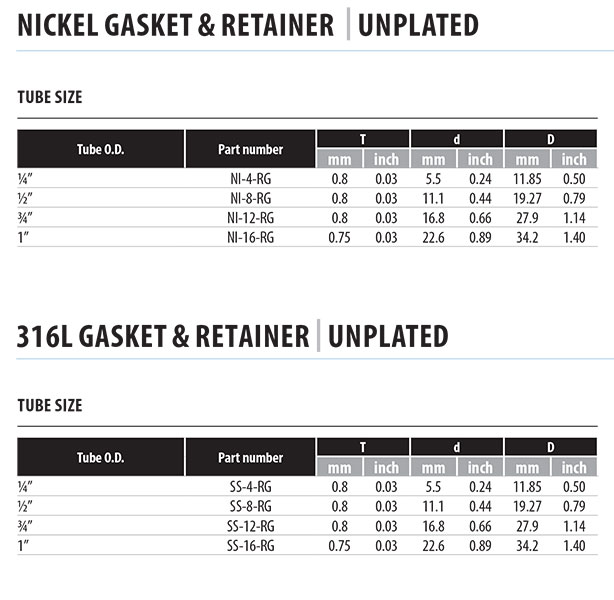

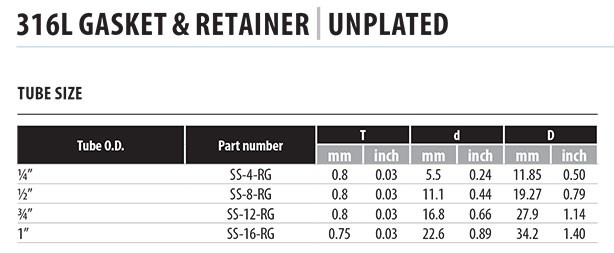

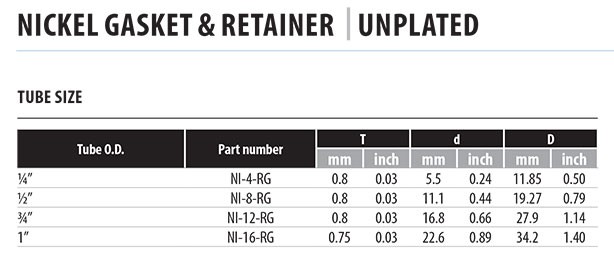

TUBE SIZE
For Silver-Plated, please add ‘-SV’ at the end of P/N. [Ex. NI-4-RG-SV, NI-12-RG-SV]
For Silver-Plated, please add ‘-SV’ at the end of P/N. [Ex. SS-4-RG-SV, SS-12-RG-SV]
Specifications
| Gas Type | Specialty, Ultra High Purity |
| Body material | AISI 316L |

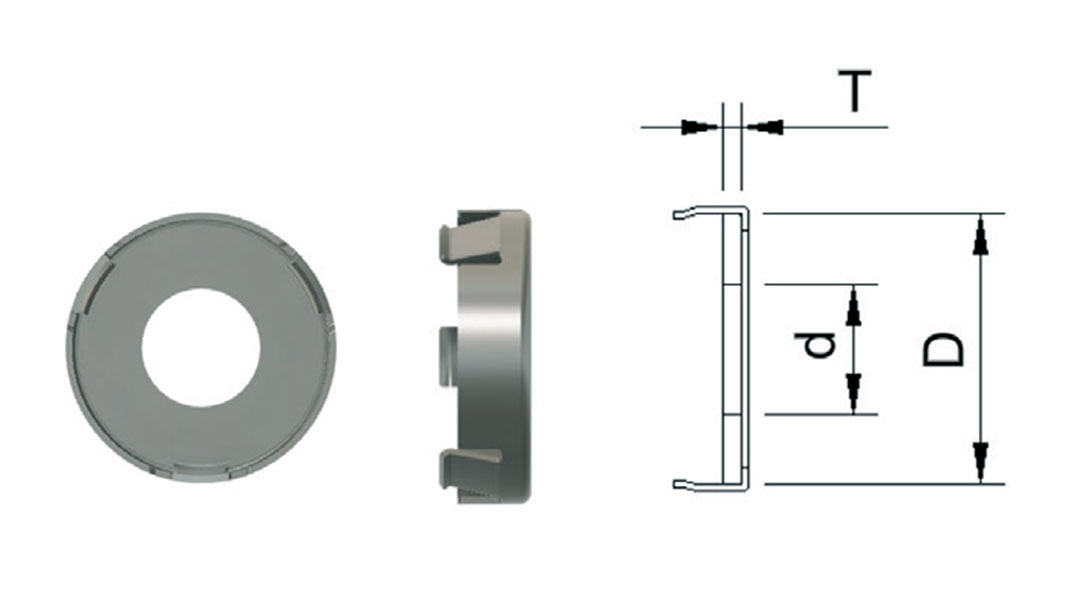

Dimensional drawings
