Bellow integrated point of use - MS20
MS20 is a terminal point of use for specialty gas applications in a laboratory or in a workshop. It is made up with a S20 pressure regulator and a VLM 20 valve.
Key advantages
  • Compact footprint and ergonomic design ideal for laboratory furniture
  • Must be installed with a flash back arrestor for use with acetylene
  • Acetylene version available (AD)

FLOW CURVES

Product image

Product image

Product image

Product image



Specifications
Female portsG 3/8 (inlet/outlet) or 1/4 NPT (inlet/outlet)
Seat sealEPDM
O-ringEPDM - Standard / FPM
Diaphragm (valve)Hastelloy®
BellowBronze or AISI 316L (SS version)
WeightAluminum: ± 1,25 / Stainless steel: ± 2,75 kg
Leak rate10-8 M bar l/s
Temperature range-20 to +60 °c
GaugesLow pressure (M10 x 1)
Inlet pressure50 bar, AD: 20 bar
Outlet Pressure1/3/10 bar, AD: 20 bar
Nominal flow2/1(AD)/2,5/3,5 Nm-3/h (N2)
Oxygen useinlet pressure ≤ 30 bar max. for aluminum and stainless steel
Dimensional drawings

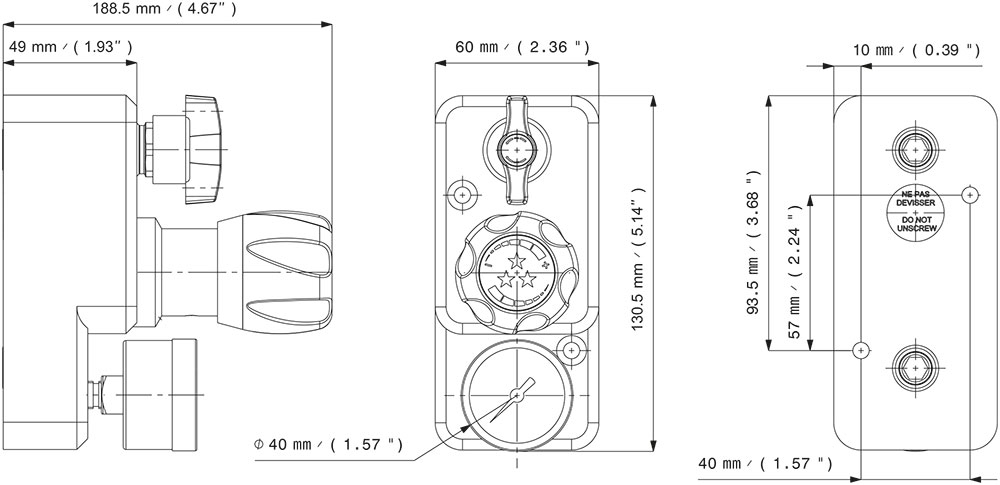

Drawing
Product Configurator

Body material

Outlet Pressure
End connections
o-ring material
Configuration
MS
A
20
1
G
EPDM
A

Aluminum
Stainless steel

1 bar
3 bar
10 bar
Acetylene version 1,5 bar
G 3/8 - G 3/8
1/4 NPT - 1/4 NPT
EPDM - standard
FPM
Standard configuration
Downloadable catalogs, brochures
  • Download
    Pressure Regulators Catalog
    Last update: Feb 21, 2022
    Available in: en/fr/de/fr/de
