Diaphragm integrated point of use with balanced valve - MS15
MS15 is a terminal point of use for specialty gas applications in a laboratory or in a workshop. It is made up with a S15 pressure regulator and a VLM 200 valve.
Key advantages
  • Outstanding pressure consistency with Balanced Valve Technology.
  • Increased useful lifetime and lower ownership cost
  • Compact footprint and ergonomic design ideal for laboratory furniture

FLOW CURVES

Product image

Specifications
Female portsG 3/8 (inlet/outlet) or 1/4 NPT (inlet/outlet)
Seat sealEPDM
O-ringEPDM - Standard / FPM
DiaphragmAISI 304 (aluminum version) / Hastelloy® (SS version)
WeightAluminum: ± 1,86 / Stainless steel: ± 3,8 kg
Leak rate10-8 M bar l/s
Temperature range-20 to +60 °c
GaugesLow pressure (M10 x 1)
Inlet pressure25 bar
Outlet pressure10 bar
Nominal flow50 Nm3/h (n2)
Oxygen useOK

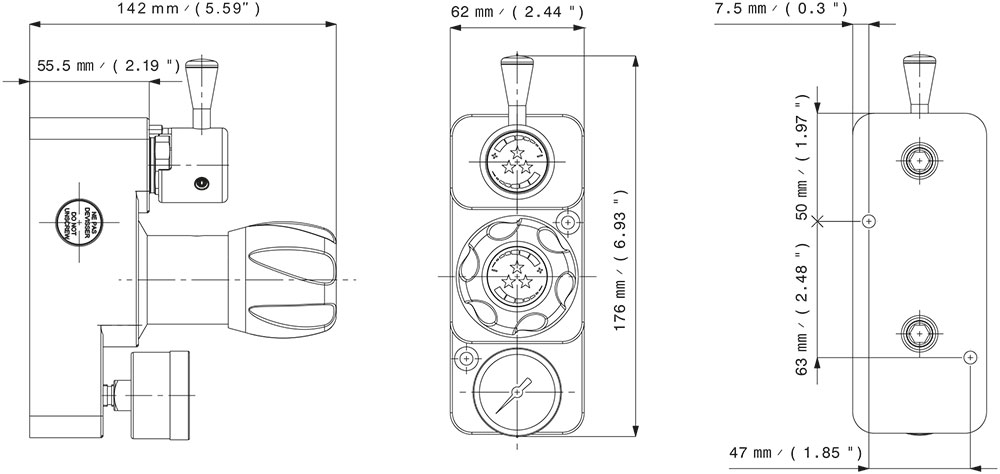

Dimensional drawings
Drawing
Product Configurator

Body material

Outlet pressure
End connections
O-ring material
Configuration
MS
A
15
10
G
EPDM
A
