Column pressure regulator for medical gases - M730 Alpinox

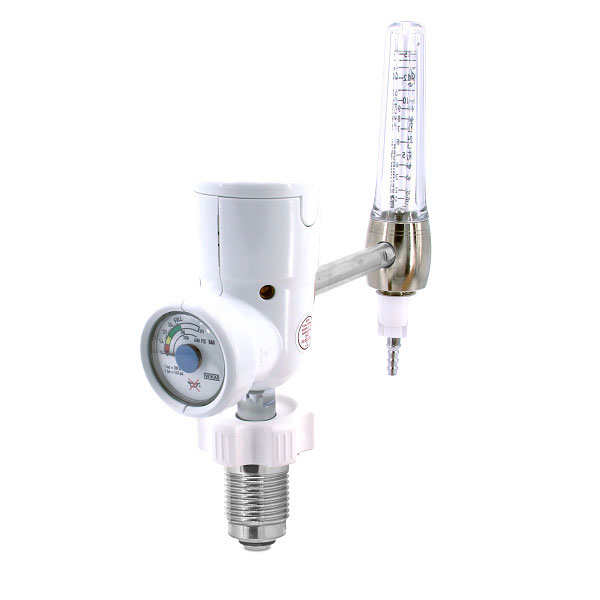

M730 - Alpinox top outlet with column version

The Column version of the Alpinox medical gas pressure regulator combines high-pressure regulation with a precision flowmeter column, enabling accurate and continuous adjustment of medical gas flow. This medical gas regulator is directly connected to the standard valve mounted on the cylinder.

Designed for clinical environments where precise control is essential, it allows healthcare professionals to visually monitor and fine-tune the delivered flow rate for optimal patient care.

Key advantages

Strong compatibility with oxygen and other medical gases
Integrated column flowmeter for precise and continuous flow control
Clear visual indication of the delivered flow rate
Aesthetic & easy-to-clean plastic cover protecting the pressure gauge from potential damages
Durable construction suitable for intensive medical use with a 10 years lifetime and no preventive maintenance
MRI compatible

Contact an expert
Configure product
Download datasheet

COMPACT, LIGHTWEIGHT & PILL TEST RESISTANT DESIGN

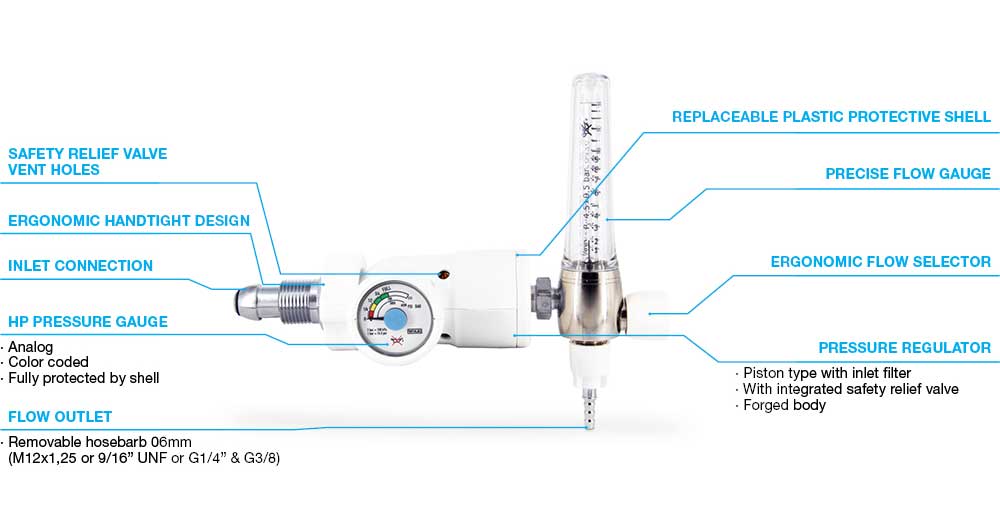

Alpinox Features

INDIVIDUAL TRACEABILITY & UDI LABELLING

Product image

VERSIONS

Product image

Specifications

Gas	Oxygen, Air, N2O/02, Other medical gases
Max inlet pressure	200 bar / 2000 psig
Life time	10 years
Filter	Sintered bronze 20 μm
Flow range	From 0-6 Lpm to 0-25 Lpm
Body material	Brass
O-ring material	EPDM
Seat material	Nylon
Regulatory status	10524-1
Ce marking	CE0123
Pill test	Resistant to ASTM G175

Product Configurator

	Gas	Working pressure	Cylinder connection	Outlet Pressure	Flow range	Pressure outlet	Flow outlet
M730	O2	200	NF	3.5	6L	N	9/16
	O2 O2 Air Air N2O/O2 N2O/O2 Other medical gases	200 bar 200 2000 psig 2000	AFNOR NF DIN9 D9 BS BS UNI UNI Pin Index PI ABNT ABNT CGA CGA Other according to local regulations	3.5 bar 3.5 4.5 bar 4.5 Other according to local regulations	0-6Lpm 6L 0-15Lpm 15L 0-25Lpm 25L FIxed outlet pressure N	None N AFNOR NF DIN DIN BS BS Scandinavian SS DISS DISS UNI UNI Others according to local regulations	Hose Barb Ø6mm - Removable 9/16 9/16 Hose Barb Ø6mm - Removable M12x125 M12 Hose Barb Ø6mm - Removable G1/4 1/4 Hose Barb Ø6mm - Removable G3/8 3/8
