Yoke version pressure regulator for medical gases - M730 Alpinox

The pin index yoke version of the Alpinox medical gas pressure regulator is designed for safe and reliable pressure regulation from small medical gas cylinders equipped with a Pin Index connection.

Thanks to the Pin Index Safety System (PISS), the regulator can only be connected to the correct gas cylinder, preventing misconnections and ensuring safe operation in medical environments.

Compact and easy to install, it provides dependable pressure regulation for oxygen therapy and medical equipment supplied by portable cylinders.

Key advantages

Strong compatibility with oxygen and other medical gases
Pin Index Safety System (PISS) ensuring correct gas connection
Clear visual indication of the delivered flow rate
Designed for small medical cylinders with Pin Index valve
Durable construction suitable for intensive medical use with a 10 years lifetime and no preventive maintenance
Suitable for ambulances, emergency care and hospital use
MRI compatible

Contact an expert
Configure product
Download datasheet

COMPACT, LIGHTWEIGHT & PILL TEST RESISTANT DESIGN

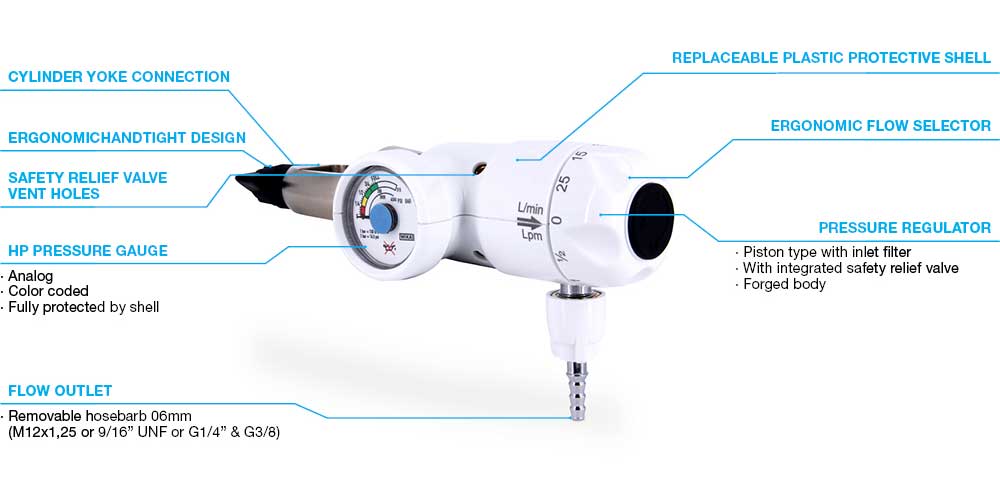

Alpinox Features

INDIVIDUAL TRACEABILITY & UDI LABELLING

Product image

VERSIONS

Product image

Specifications

Gas	Oxygen, Air, N2O/02, Other medical gases
Max inlet pressure	200 bar / 2000 psig
Life time	10 years
Filter	Sintered bronze 20 μm
Flow range	From 0-6 Lpm to 0-25 Lpm
Body material	Brass
O-ring material	EPDM
Seat material	Nylon
Regulatory status	10524-1
Ce marking	CE0123
Pill test	Resistant to ASTM G175

Product Configurator

	Gas	Working pressure	Cylinder connection	Outlet Pressure	Flow range	Pressure outlet	Flow outlet
M730	O2	200	NF	3.5	6L	N	9/16
	O2 O2 Air Air N2O/O2 N2O/O2 Other medical gases	200 bar 200 2000 psig 2000	AFNOR NF DIN9 D9 BS BS UNI UNI Pin Index PI ABNT ABNT CGA CGA Other according to local regulations	3.5 bar 3.5 4.5 bar 4.5 Other according to local regulations	0-6Lpm 6L 0-15Lpm 15L 0-25Lpm 25L FIxed outlet pressure N	None N AFNOR NF DIN DIN BS BS Scandinavian SS DISS DISS UNI UNI Others according to local regulations	Hose Barb Ø6mm - Removable 9/16 9/16 Hose Barb Ø6mm - Removable M12x125 M12 Hose Barb Ø6mm - Removable G1/4 1/4 Hose Barb Ø6mm - Removable G3/8 3/8
