Diaphragm single stage supply board with cartridge - CM280/CM380
Equipment for gas systems > Speciality gas equipment > Supply & switchover boards
CM280 - CM380 is a compact supply board. It is ideally suited for pure and corrosive gases for high purity applications dedicated to the supply of gas to analyzers and to the creation of controlled atmosphere in laboratories, control units, and for petrochemical applications where high flows are required. The device is to be used in combination with a Switchover board for the regulation of the emergency source during maintenance on the principal source. This avoids installing some extension and reduces the amount of leaking points. It benefits from duo-bloc technology.
Key advantages
  • Ready to install with all components pre-mounted on board
  • Best-in-class pressure stability with Cartridge Technology
  • Cartridge technology increases regulator life and reduces ownership costs
  • Can be equipped with a collection tube on the relief valve and purge outlet, also with an outlet shut-off valve
  • The CM280 - CM380 can be connected to an alarm box using contact gauges
Specifications
Female ports1/4” NPT (Inlet/Outlet)
Seat sealPCTFE
Seal materialPTFE
DiaphragmHastelloy®
Weight± 2,9 kg (CM-1) / 4,5 kg (CM-2) / 4,8 kg(CM-3) ± 6.3 lbs / 9.9 lbs / 10.5 lbs
Leak rate10-8 mbar ℓ/s He
Temperature range-20 to +60 °c
GaugesHigh and low pressure (1/4” NPT)
Inlet pressure200/300 bar
Outlet Pressure10/16/35/50 bar
Nominal flow cv10/20/30 Nm3 /h (N2 ) 0.1
Oxygen useOk with Brass and Stainless Steel

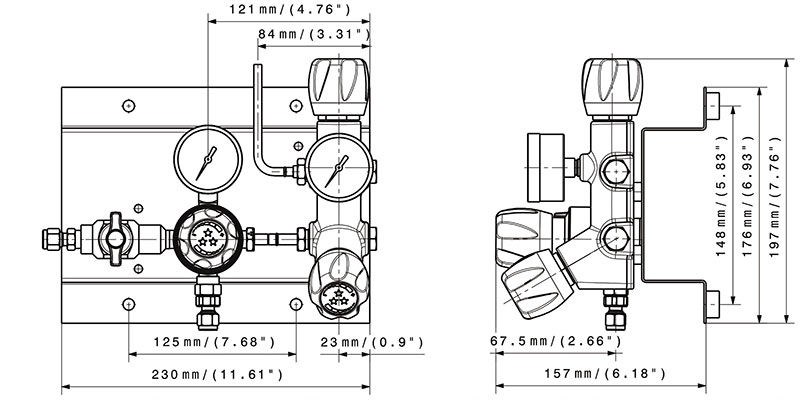

Dimensional drawings
Drawing
Product Configurator

Body material
Inlet pressure
Version type
Outlet Pressure
Inlet connection
Outlet connection
Gauges
Purge
Gas type
CM
L
280
T3
10
N
N
1
0
N2

Chrome plated brass
Stainless Steel
200 bar 2900 psig
300 bar 4350 psig
Type 3
10 bar 145 psig
16 bar 232 psig
35 bar 507.5 psig
50 bar 725 psig
1/4 NPT
1/4 NPT
With standard gauges
HP inductive contact gauge
Without
With connected purge and relief valve*

Downloadable catalogs, brochures
  • Download
    Supply and Switchover Boards
