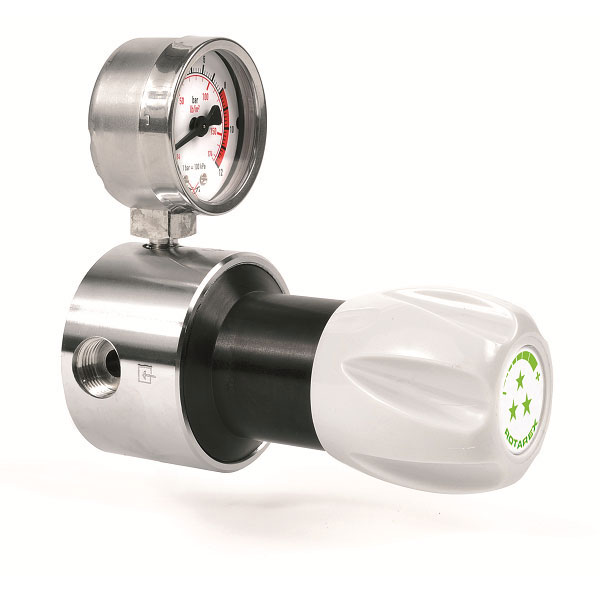

Diaphragm low pressure regulator with balanced valve for high flow - S15
Key advantages
  • Outstanding pressure consistency with Balanced Valve Technology.
  • Can be used for many applications that need a high flow
  • Wall and panel mounting possible with its compact design, the rear threads and the fixing ring
  • Longer regulator lifetime and lower total ownership cost

FLOW CURVES

Specifications
Female portsG3/8 or 1/4 NPT (inlet/outlet)
Seat sealFPM / EPDM
O-ringFPM / EPDM
Diaphragm AISI 304 (brass version) / Hastelloy® (SS version)
Weight+/- 1,2 kg
Leak rate10-8 M bar l/s
Temperature range-20 to +60 °c
gauges-Low pressure (M10 x 1 or 1/4 NPT)
Inlet pressure25 bar
Outlet pressure10 bar
Nominal flow50 Nm3/h (n2)
Oxygen useOK for brass and stainless steel

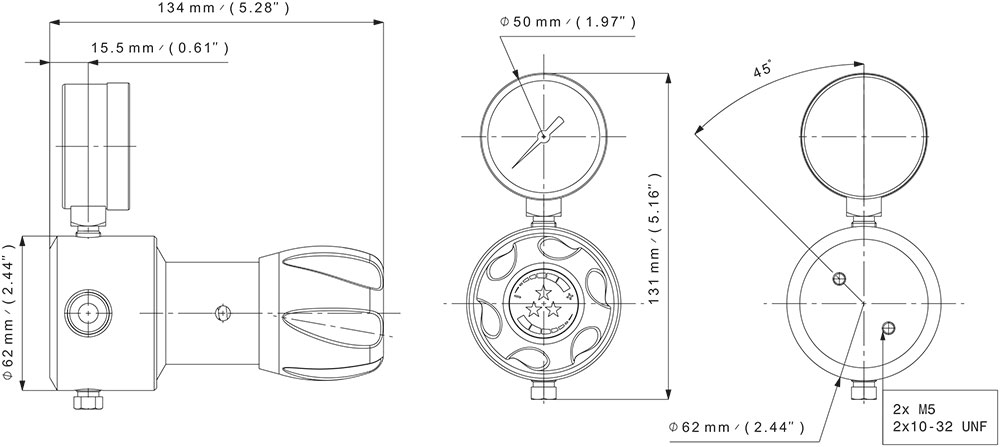

Dimensional drawings
Product Configurator

Body material

Outlet pressure
End connections
O-ring material
Gauges
Mounting
Ports configuration
S
L
15
10
G
EPDM
1
FR0
A


Downloadable catalogs, brochures
  • Pressure Regulators Catalog
    Last update: May 25, 2021
    Available in: en/fr/de
